RA63R-BLMQG (1981)
Toyota Celica
(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-14010 |
RA63,TA60;MA61..TWC |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-14050 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14260 |
RA63 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-14090 |
RA63,TA60;MA61..TWC |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;AA63,RA60,63,65,TA60;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-20160 |
RA63 |
1 | ||
| Common parts | ||||
| 90099-01468 | ||||
| 90099-04950 | ||||
| 91112-71030 | ||||
| 91112-71085 | ||||

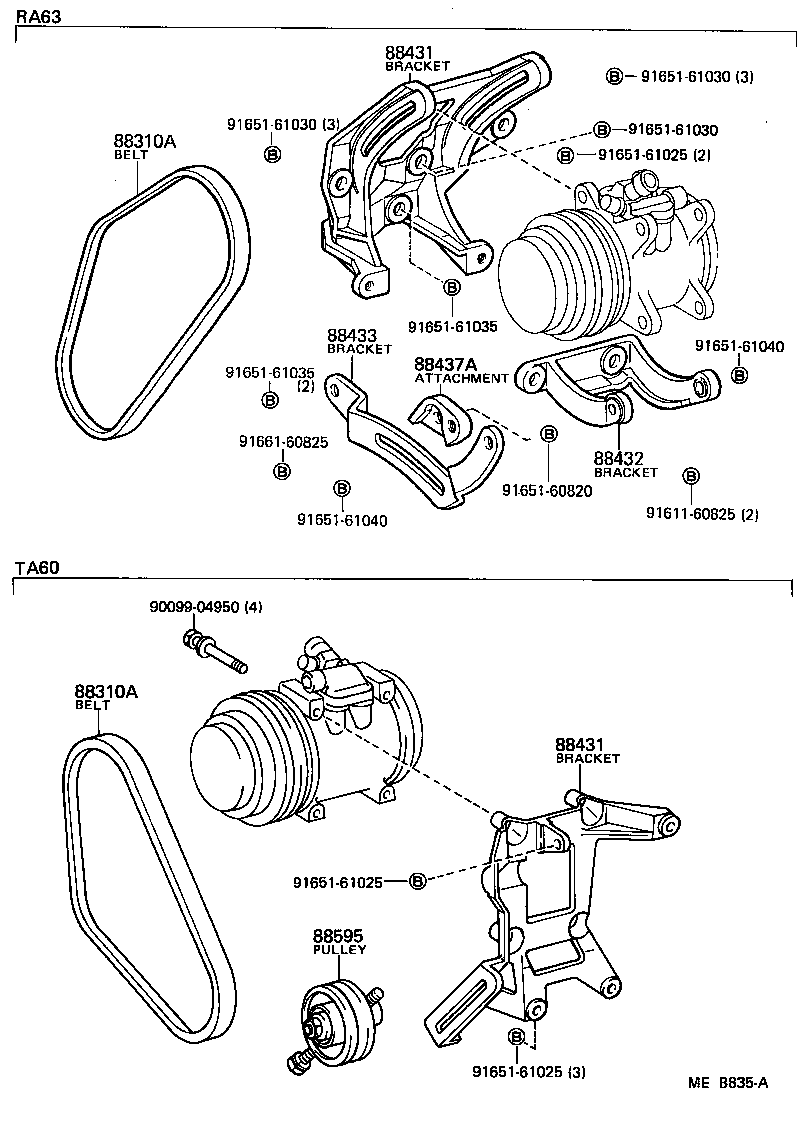

(8108-8507)RA63,TA60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-20160 |
RA63 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88437-20100 |
RA63 |
1 | ||
| 88437A - ATTACHMENT, COMPRESSOR | ||||
| 88437-20070 |
RA63 |
1 | ||
| Common parts | ||||
| 90099-04950 | ||||
| 91611-60825 | ||||
| 91651-60820 | ||||
| 91651-61025 | ||||
| 91651-61030 | ||||
| 91651-61035 | ||||
| 91651-61040 | ||||
| 91661-60825 | ||||
(8108-8507)RA60,65 ; (8108-8507)RA61..RHD ; (8108-8507)RA61..LHD..4FC ; (8108-8507)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-20150 |
RA63 |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-20160 |
RA63 |
1 | ||
| 88433 - BRACKET, COMPRESSOR MOUNTING, NO.3 | ||||
| 88437-20100 |
RA63 |
1 | ||
| Common parts | ||||
| 88649-20030 | ||||
| 90099-04922 | ||||
| 90099-04950 | ||||
| 90099-20016 | ||||
| 90119-08216 | ||||
| 90119-08225 | ||||
| 90119-10040 | ||||
| 90119-10124 | ||||
| 90119-10172 | ||||
| 91111-60850 | ||||
| 91111-60855 | ||||
| 91111-61065 | ||||
| 91111-61070 | ||||
| 91651-60840 | ||||
| 91651-61025 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11000 | ||||

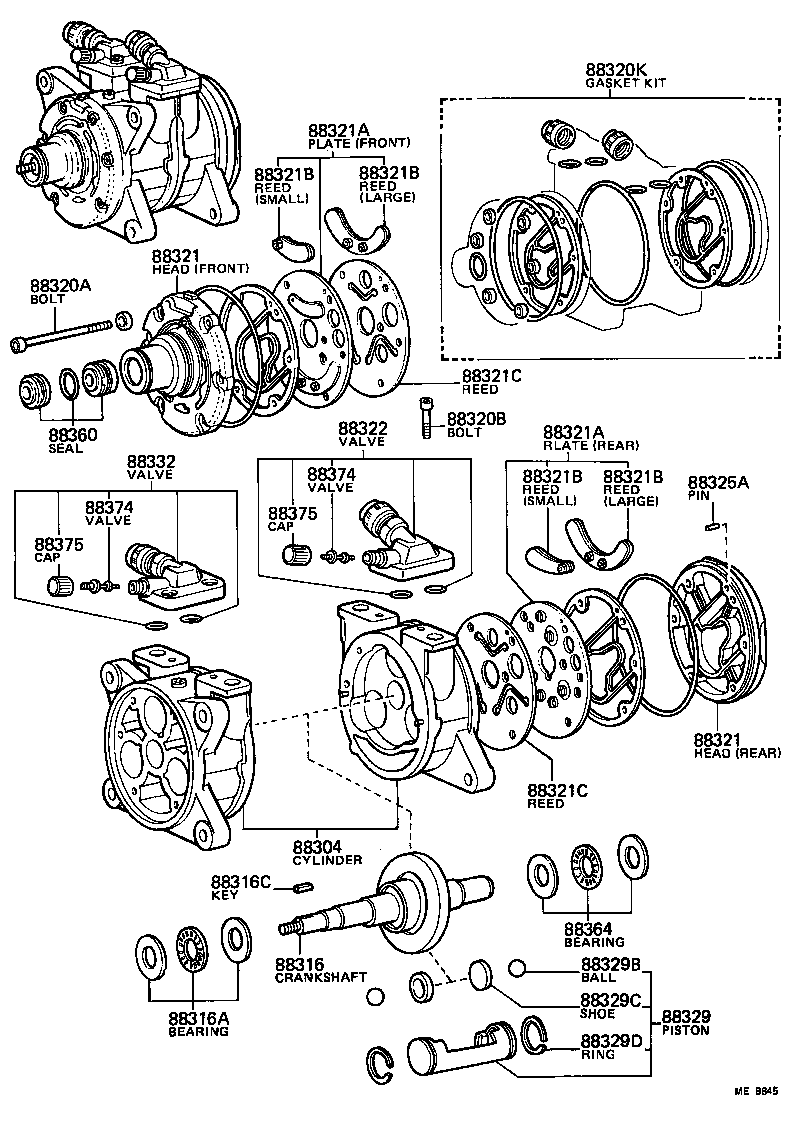

(8108- )LHD..TWC ; (8108- )RA60,65,TA60 ;(8108- )MA61,RA61..RHD ; (8108-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-22010 |
RA63 |
1 | ||
| 88304-22010 |
RA63 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20070 |
RA63 |
1 | ||
| 88316-20070 |
RA63 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
RA63 |
1 | ||
| 88366-20050 |
RA63 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 90099-13011 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
RA63 |
6 | ||
| 90099-04926 |
RA63 |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 90099-04905 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 90099-04905 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-14030 |
RA63 |
1 | ||
| 04881-14030 |
RA63 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RA63 RR |
1 | ||
| 88322-20040 |
RA63 RR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RA63 RR |
1 | ||
| 88322-20040 |
RA63 RR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
RA63 RR |
1 | ||
| 88306-20040 |
RA63 RR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
RA63 RR |
1 | ||
| 88306-20040 |
RA63 RR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RA63 |
2 | ||
| 88343-20040 |
RA63 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RA63 |
2 | ||
| 88343-20040 |
RA63 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-14180 |
RA63 |
1 | ||
| 88371-14180 |
RA63 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 90099-08058 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
RA63 |
3 | ||
| 88301-20050 |
RA63 |
3 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
RA63 |
6 | ||
| 88313-20070 |
RA63 |
6 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
RA63 |
6 | ||
| 88313-20070 |
RA63 |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-14070 |
RA63 |
1 | ||
| 88372-14070 |
RA63 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
RA63 |
1 | ||
| 88360-30270 |
RA63 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
RA63 |
1 | ||
| 88366-20050 |
RA63 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RA63 |
2 | ||
| 88375-30260 |
RA63 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RA63 |
2 | ||
| 88375-30260 |
RA63 |
2 | ||
(8108-8308)RA63
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-22010 |
RA63 |
1 | ||
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20070 |
RA63 |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 88366-20050 |
RA63 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13011 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04926 |
RA63 |
6 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04905 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-14030 |
RA63 |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RA63 RR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-20040 |
RA63 RR |
1 | ||
| 88321-20061 |
RA63 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
RA63 RR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88306-20040 |
RA63 RR |
1 | ||
| 88305-20070 |
RA63 FR |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88307-20050 |
RA63 SMALL |
2 | ||
| 88307-20060 |
RA63 LARGE |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RA63 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-20040 |
RA63 |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-14180 |
RA63 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
4 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-20050 |
RA63 |
3 | ||
| 88329B - BALL, PISTON | ||||
| 88312-30250 |
RA63 |
1 | ||
| 88329C - SHOE, PISTON | ||||
| 88313-20070 |
RA63 |
6 | ||
| 88329D - RING, PISTON | ||||
| 88317-20030 |
RA63 |
6 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88372-14070 |
RA63 |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30270 |
RA63 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88366-20050 |
RA63 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA60,63,65,TA60;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA) |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RA63 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-30260 |
RA63 |
2 | ||
