RA63R-BCMQG (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 18RG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA63

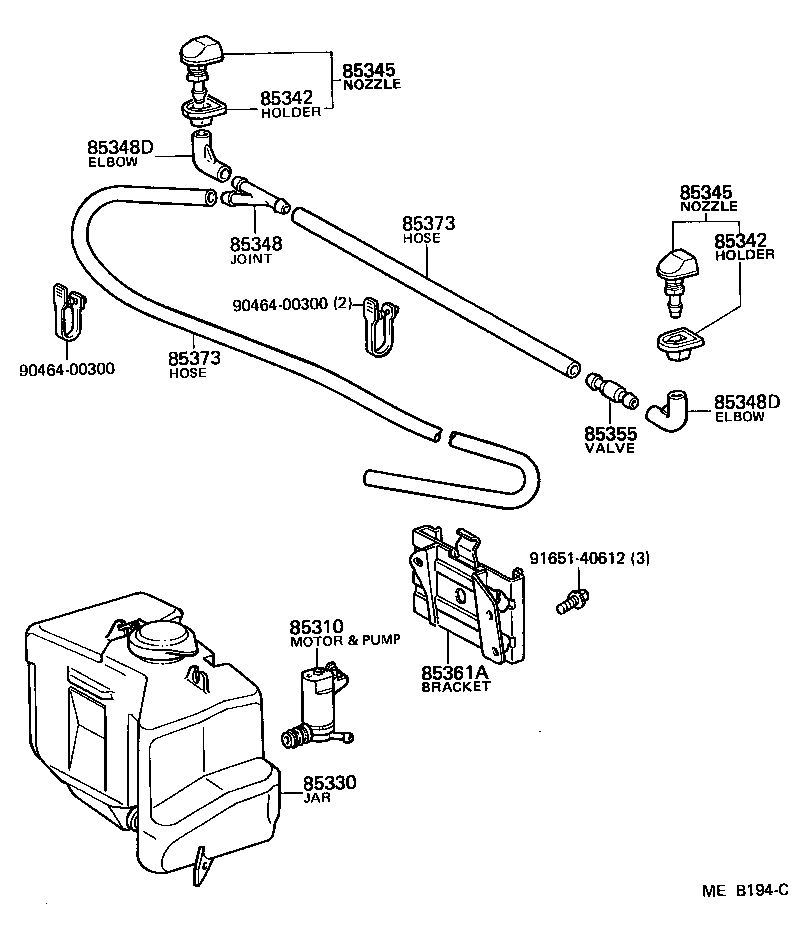

Click highlighted areas on diagram

diagram 85310 85330 85342 85342 85345 85345 85348 85348D 85348D 85355 85361A 85373 85373 9046400300 9046400300 9165140612
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

MA61,RA6#,TA60

 1
85310-10130

MA61,RA6#,TA60

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-14370

RA63..RHD

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AA63,RA60,61,63,SA63,TA60

2-WAY

 2
85355-14010

AA63,MA61,RA6#,SA63,TA60

3-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AA63,MA61,RA6#,SA63,TA60

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85036-14130

AA63,RA63..RHD

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#,TA60

*H,L=550

 1
90099-33299

RA60,61,63,SA63,TA60

L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#,TA60

*H,L=550

 1
90099-33299

RA60,61,63,SA63,TA60

L=450

 1
Common parts
90464-00300
91651-40612
