RA63L-BCMQGW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 18RG
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)18RG

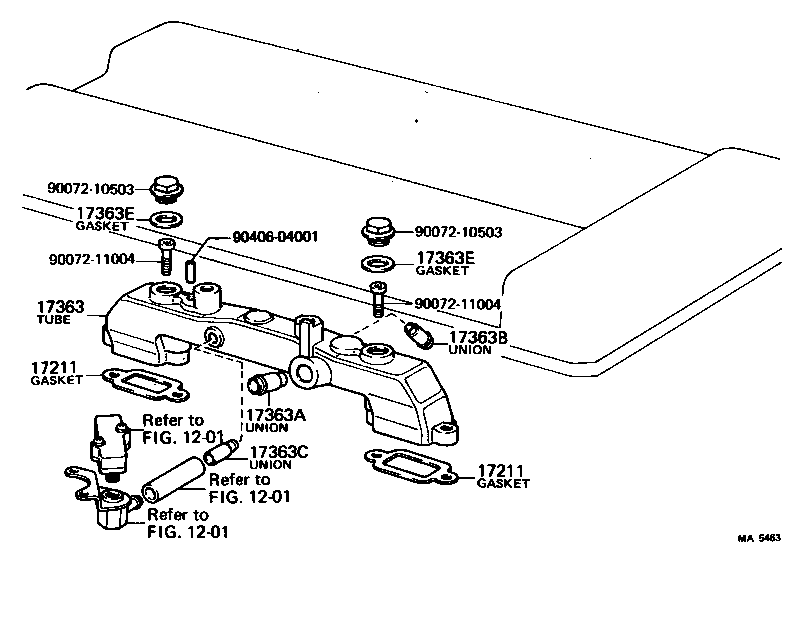

Click highlighted areas on diagram

diagram 1201 1201 1201 17211 17211 17363 17363A 17363B 17363C 17363E 17363E 9007210503 9007210503 9007211004 9007211004 9040604001
Part # Description Qty Price
17211 - GASKET, AIR BALANCE TUBE
17211-88250

18RG..RA63

 2
17211 - GASKET, AIR BALANCE TUBE
17211-88250

18RG..RA63

 2
17363 - TUBE, AIR BALANCE
17363-88255

18RG..RA63

 1
17363A - UNION, NO.1(FOR AIR BALANCE TUBE)
90072-40617

18RG..RA63

 1
17363B - UNION, NO.2(FOR AIR BALANCE TUBE)
90072-40618

18RG..RA63

 1
17363C - UNION, NO.3(FOR AIR BALANCE TUBE)
90072-40623

18RG..RA63

 1
17363E - GASKET(FOR AIR BALANCE TUBE)
90072-43017

18RG..RA63

 2
17363E - GASKET(FOR AIR BALANCE TUBE)
90072-43017

18RG..RA63

 2
Common parts
90072-10503
90072-11004
90406-04001
Linked diagrams
1201
