RA61R-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )

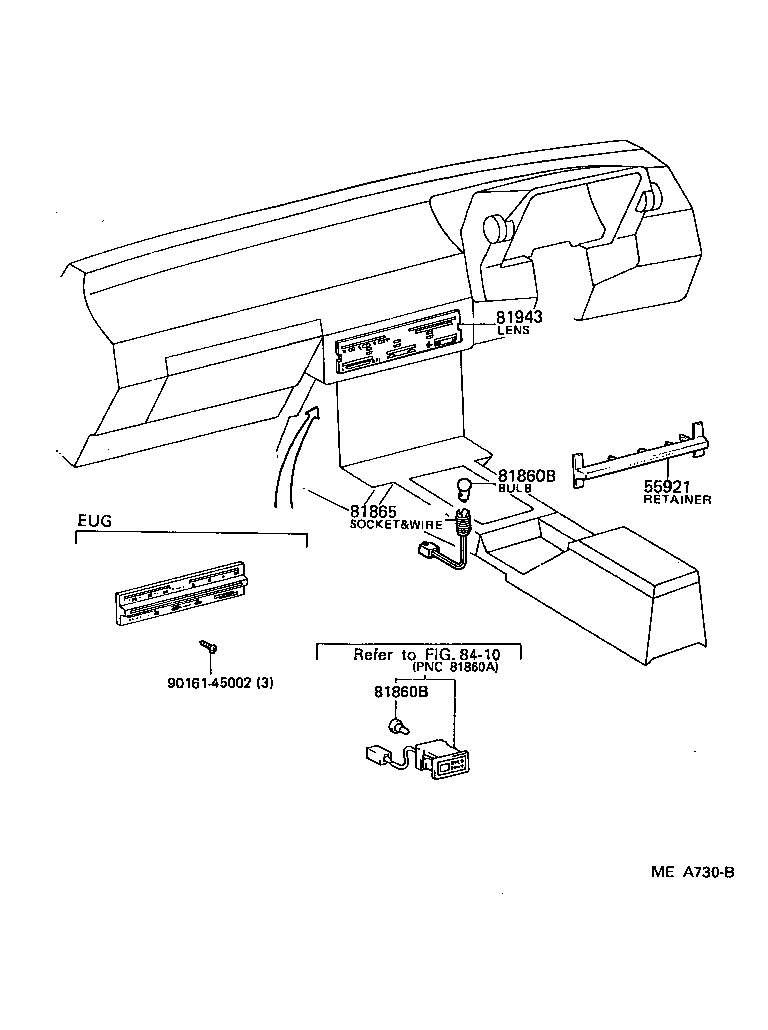

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 99132-11034 |
RA60,61,TA60..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 81860B - BULB, TRANSMISSION INDICATOR LAMP | ||||
| 99132-11034 |
RA60,61,TA60..ATM 12V 3.4W,12V 3.4W |
1 | ||
| 81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP | ||||
| 35906-14010 |
RA60,61,TA60..ATM |
1 | ||
| 81943 - LENS, HEATER CONTROL INDICATOR | ||||
| 81943-14320 |
MA61,RA61..RHD..EUG |
1 | ||
| Common parts | ||||
| 90161-45002 | ||||
| Linked diagrams | ||||
| 8410 | ||||
