RA61R-BLPSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

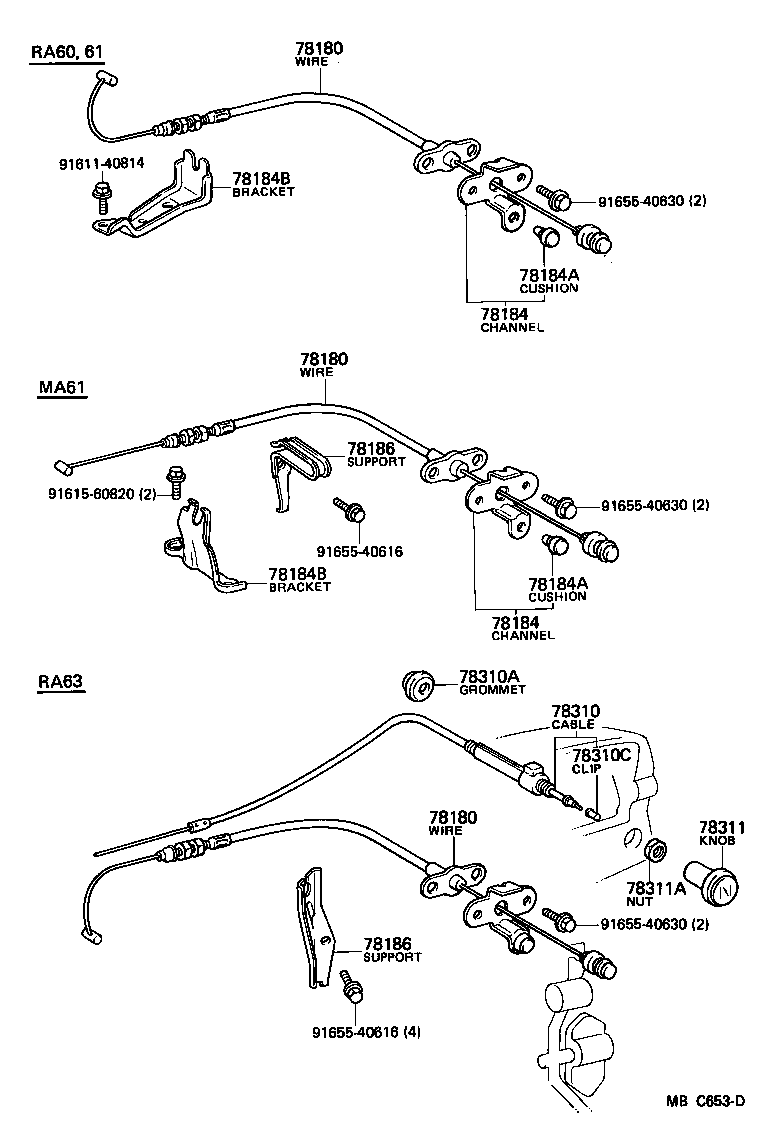

(8108-8507)MA61,RA60,61,63..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14270 |
RA60,61..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14270 |
RA60,61..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-14270 |
RA60,61..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-14060 |
RA60,61,SA63..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78181-14060 |
RA60,61,SA63..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
RA60,61,SA63..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
RA60,61,SA63..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-14080 |
RA60,61..RHD |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-14080 |
RA60,61..RHD |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91615-60820 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||

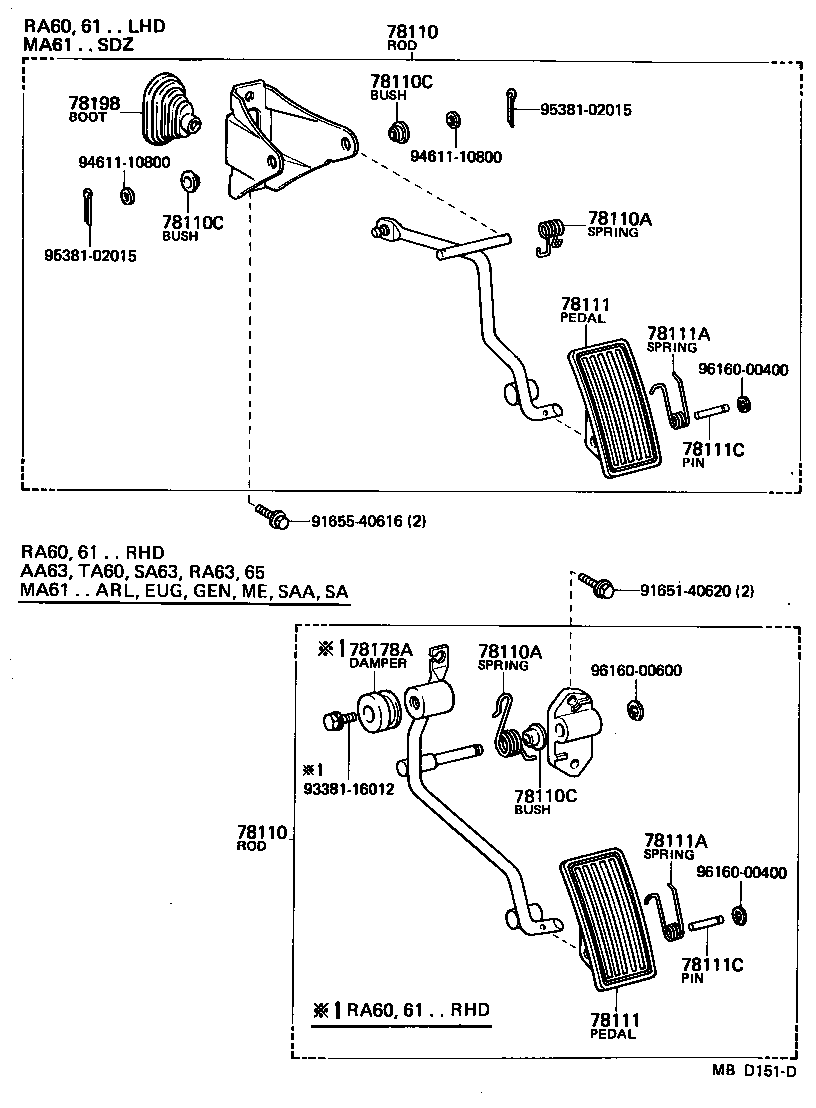

(8108- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14370 |
RA60,61..RHD..4FC |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-14370 |
RA60,61..RHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
RA60,61..RHD..4FC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
RA60,61..RHD..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC | ||||
| 78178-14020 |
RA60,61..RHD |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||
| 91655-40616 | ||||
| 93381-16012 | ||||
| 94611-10800 | ||||
| 95381-02015 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
