RA61R-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8208)21R# ; (8208-8308)21RC..RA60

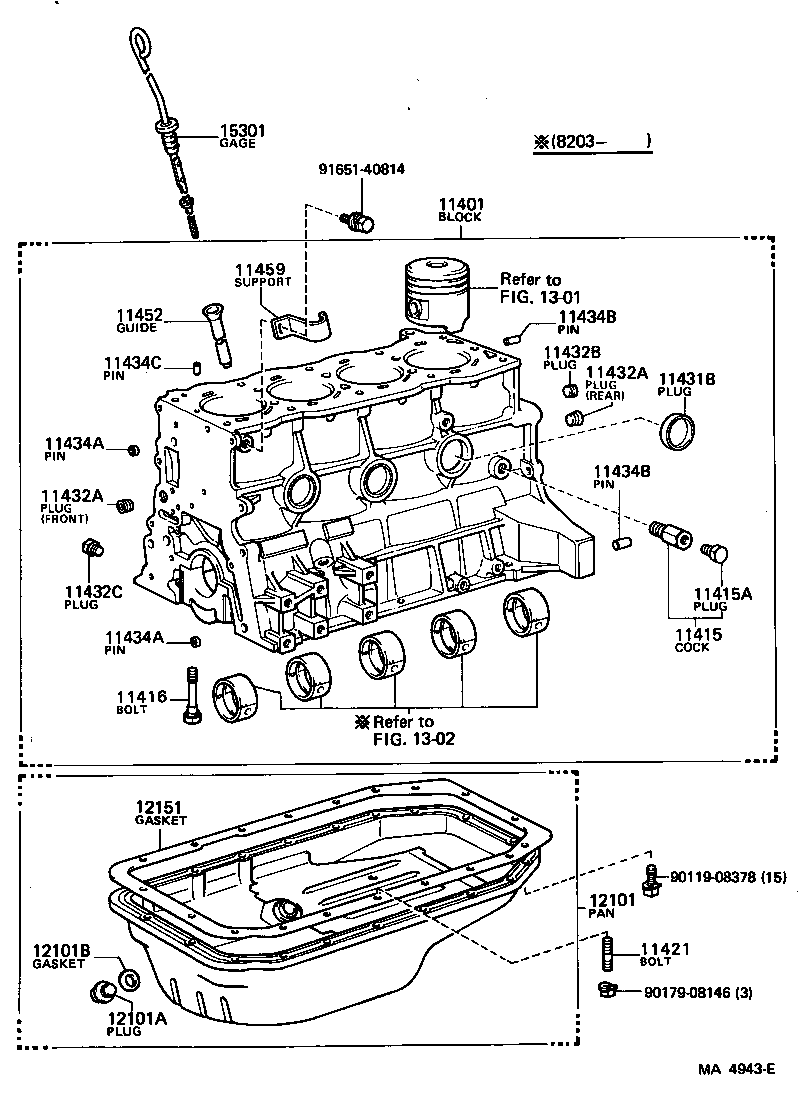

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11421 11431B 11432A 11432A 11432B 11432C 11434A 11434A 11434B 11434B 11434C 11452 11459 12101 12101A 12101B 12151 1301 1302 15301 9011908378 9017908146 9165140814
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39346

21R#..RA60,61..EUR,GEN,ME

 1
11401-39345

21R#..RA60,61..EUR,GEN,ME

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-03833

21R#,18RG..RA6#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

21R#,18RG..RA6#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02042

21R#,22REC,18RG..RA6#

*12-1.25PX75-25

 10
11421 - BOLT, STUD(FOR OIL PAN)
92122-40814

21R#,22REC..RA60,61,65

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

21R#,22REC,18RG..RA6#

OD=40

 6
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

21R#,22REC..RA60,61,65

FR

 1
90344-53002

21R#..RA60,61

RR

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53008

21R#,22REC..RA60,61,65

FR

 1
90344-53002

21R#..RA60,61

RR

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-52013

21R#,22REC..RA60,61,65

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51025

21R#..RA60,61

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

21R#,22REC..RA60,61,65

L=8,OD=11,L=8,OD=11

 4
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

21R#,22REC..RA60,61,65

L=8,OD=11,L=8,OD=11

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

21R#,22REC..RA60,61,65

L=22,OD=10,L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

21R#,22REC..RA60,61,65

L=22,OD=10,L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

21R#,22REC,18RG..RA6#

L=18,OD=8,L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-38020

21R#..RA60,61

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-38020

21R#..RA60,61

 1
12101 - PAN SUB-ASSY, OIL
12101-39325

21R#..RA60,61

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

21R#,18RG..RA6#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

21R#,18RG..RA6#

 1
12151 - GASKET, OIL PAN
12151-38010

21R#..RA60,61

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-35010

21R#..RA60,61

 1
Common parts
90119-08378
90179-08146
91651-40814
Linked diagrams
1301
1302
