RA61R-BLMSSW (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108- )RHD..5F

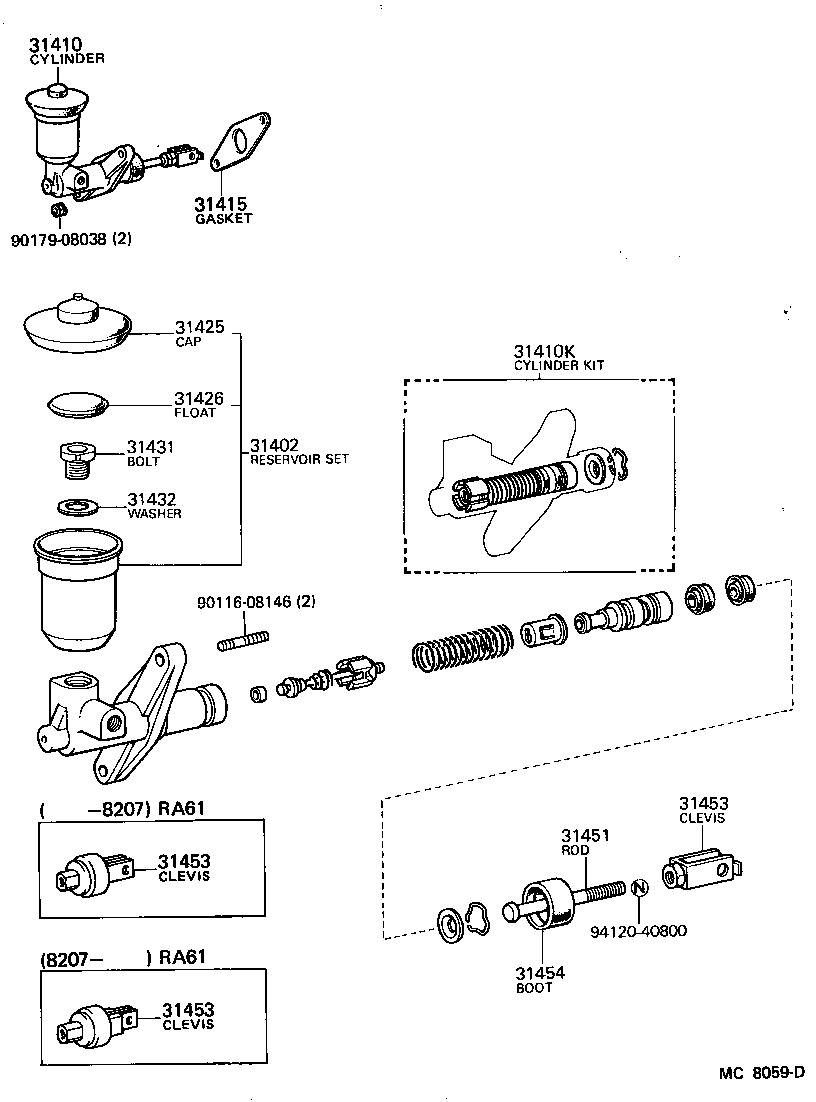

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-30030 |
AA63,RA60,61,63,SA63,TA60..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-24011 |
RA61..RHD |
1 | ||
| 31410-24012 |
RA61..RHD |
1 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-30080 |
AA63;TA60..TCB;RA61,63..5F..EUR |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
AA63,MA61,RA6#,SA63,TA60..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
AA63,MA61,RA6#,SA63,TA60..5F |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
AA63,MA61,RA6#,SA63,TA60..5F |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
AA63,MA61,RA6#,SA63,TA60..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-30060 |
AA63;TA60..TCB;RA61,63..5F..EUR |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-30040 |
TA60..TCB;RA61,63..5F..EUR |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-30040 |
TA60..TCB;RA61,63..5F..EUR |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-30040 |
TA60..TCB;RA61,63..5F..EUR |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-24010 |
AA63;TA60..TCB;RA61,63..5F..EUR |
1 | ||
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08038 | ||||
| 94120-40800 | ||||
