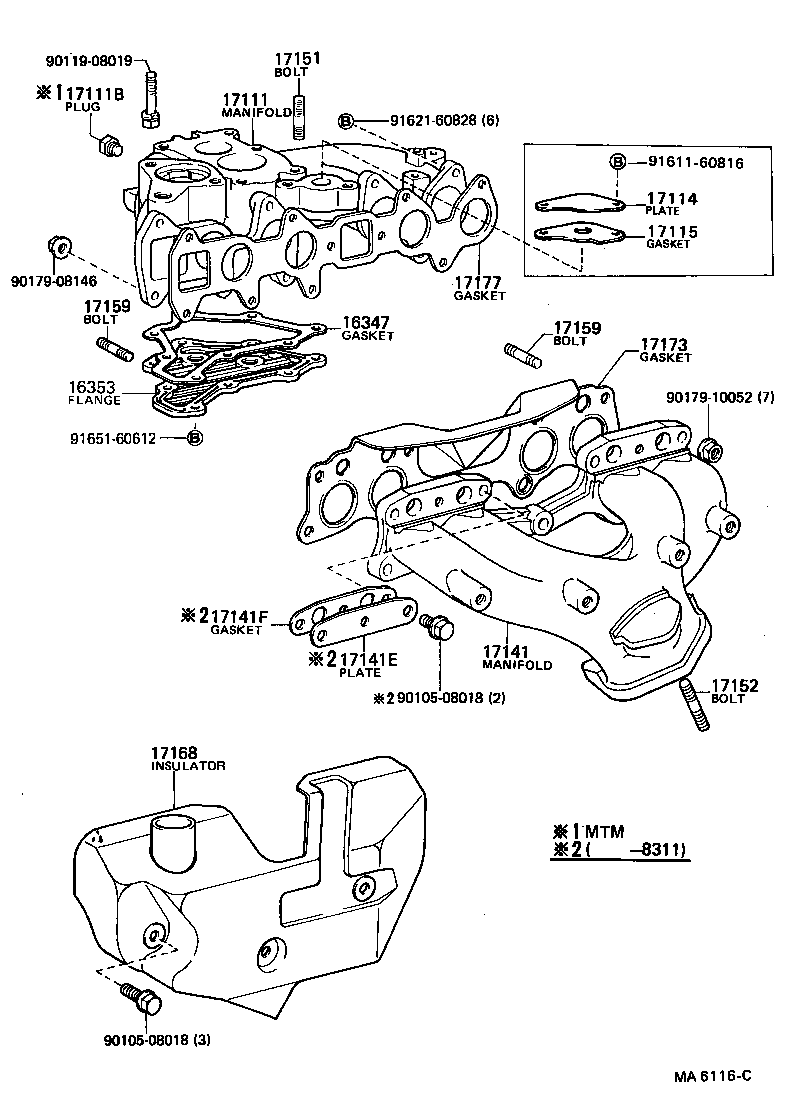

RA61R-BLMMSW (1981)
Toyota Celica
(8108-8208)21R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16347-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 16347-35030 |
21R#..RA61 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-37020 |
21R#..RA61 |
1 | ||
| 16353-37020 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16353-37030 |
21R#..RA61..EUR |
1 | ||
| 16353-35030 |
21R#..RA61 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 17111-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 17111-35040 |
21R#..RA61 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51025 |
21R..RA61 |
1 | ||
| 90345-51025 |
21R#..RA60,61 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
21R#..RA60,61..5F |
2 | ||
| 90345-53007 |
21R..RA61 |
2 | ||
| 90345-53007 |
21R..RA60,61..5F |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
21R#..RA60,61..5F |
2 | ||
| 90345-53007 |
21R..RA61 |
2 | ||
| 90345-53007 |
21R..RA60,61..5F |
1 | ||
| 17114 - PLATE, INTAKE MANIFOLD HOLE COVER | ||||
| 25617-38010 |
21R..RA60,61 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 25628-38010 |
21R..RA60,61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-35050 |
21R..RA60,61 |
1 | ||
| 17141-35020 |
21R..RA60,61 |
1 | ||
| 17141-37040 |
21R..RA61 |
1 | ||
| 17141-35100 |
21R,22REC..RA6# |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
21R#..RA60,61 L=40,S=11&11 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
21R#,18RG..RA6# L=46.5,S=14&20 |
3 | ||
| 90116-10087 |
21R#,22REC..RA60,61,65 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-35021 |
21R..RA60,61 |
1 | ||
| 17167-35020 |
21R..RA60,61 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17167-35070 |
21R..RA61 |
1 | ||
| 17168-37020 |
21R#..RA60,61 |
1 | ||
| 17167-35050 |
21R..RA60,61 |
1 | ||
| 17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR) | ||||
| 90480-11001 |
21R#..RA60,61 OD=11.5 |
2 | ||
| 90480-12001 |
21R#..RA60,61 OD=12.5 |
4 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-35030 |
21R#,22REC..RA6#..ARL,EUR |
1 | ||
| 17177-38011 |
21R..RA60,61 |
1 | ||
| 17177-37010 |
21R..RA60,61 |
1 | ||
| 17187 - GASKET, HEAT INSULATOR, NO.1 | ||||
| 17187-38020 |
21R#..RA60,61 |
1 | ||
| 17188 - GASKET, HEAT INSULATOR, NO.2 | ||||
| 17188-38010 |
21R#..RA60,61 |
1 | ||
| Common parts | ||||
| 90119-08019 | ||||
| 90170-10199 | ||||
| 90179-06026 | ||||
| 90179-10052 | ||||
| 91611-60816 | ||||
| 91651-60612 | ||||
| 91651-60828 | ||||
| 94110-50800 | ||||
(8208-8408)21R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16347-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 16347-35030 |
21R#..RA61 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-37020 |
21R#..RA61 |
1 | ||
| 16353-37020 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16353-37030 |
21R#..RA61..EUR |
1 | ||
| 16353-35030 |
21R#..RA61 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 17111-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 17111-35040 |
21R#..RA61 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
21R#..RA60,61..5F |
2 | ||
| 90345-53007 |
21R..RA61 |
2 | ||
| 90345-53007 |
21R..RA60,61..5F |
1 | ||
| 17114 - PLATE, INTAKE MANIFOLD HOLE COVER | ||||
| 25617-38010 |
21R..RA60,61 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 25628-38010 |
21R..RA60,61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-35050 |
21R..RA60,61 |
1 | ||
| 17141-35020 |
21R..RA60,61 |
1 | ||
| 17141-37040 |
21R..RA61 |
1 | ||
| 17141-35100 |
21R,22REC..RA6# |
1 | ||
| 17141E - PLATE, EXHAUST MANIFOLD | ||||
| 17148-35030 |
21R..RA61 |
2 | ||
| 17148-35010 |
21R..RA60,61 |
2 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 17378-37010 |
21R..RA60,61 |
2 | ||
| 17378-35010 |
21R..RA61 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
21R#..RA60,61 L=40,S=11&11 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
21R#,18RG..RA6# L=46.5,S=14&20 |
3 | ||
| 90116-10087 |
21R#,22REC..RA60,61,65 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17167-35070 |
21R..RA61 |
1 | ||
| 17168-37020 |
21R#..RA60,61 |
1 | ||
| 17167-35050 |
21R..RA60,61 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-35060 |
21R#,22REC..RA6# |
1 | ||
| 17173-35020 |
21R#..RA60,61 |
1 | ||
| 17173-35060 |
21R#,22REC..RA6#..ARL,EUR |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-35030 |
21R#,22REC..RA6#..ARL,EUR |
1 | ||
| 17177-38011 |
21R..RA60,61 |
1 | ||
| 17177-37010 |
21R..RA60,61 |
1 | ||
| Common parts | ||||
| 90105-08018 | ||||
| 90119-08019 | ||||
| 90179-08146 | ||||
| 90179-10052 | ||||
| 91611-60816 | ||||
| 91621-60828 | ||||
| 91651-60612 | ||||
(8408-8507)21R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16347-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 16347-35030 |
21R#..RA61 |
1 | ||
| 16353 - FLANGE, WATER BY-PASS | ||||
| 16353-37020 |
21R#..RA61 |
1 | ||
| 16353-37020 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 16353-37030 |
21R#..RA61..EUR |
1 | ||
| 16353-35030 |
21R#..RA61 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-37010 |
21R#..RA60,61..EUR,GEN,ME |
1 | ||
| 17111-37020 |
21R#..RA60,61..EUR,GEN,ME,SAA |
1 | ||
| 17111-35040 |
21R#..RA61 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51025 |
21R..RA61 |
1 | ||
| 90345-51025 |
21R#..RA60,61 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90345-53007 |
21R#..RA60,61..5F |
2 | ||
| 90345-53007 |
21R..RA61 |
2 | ||
| 90345-53007 |
21R..RA60,61..5F |
1 | ||
| 17111C - PLUG, NO.3 | ||||
| 90340-16002 |
21R#..RA61 |
1 | ||
| 17114 - PLATE, INTAKE MANIFOLD HOLE COVER | ||||
| 25617-38010 |
21R..RA60,61 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 25628-38010 |
21R..RA60,61 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-35050 |
21R..RA60,61 |
1 | ||
| 17141-35020 |
21R..RA60,61 |
1 | ||
| 17141-37040 |
21R..RA61 |
1 | ||
| 17141-35100 |
21R,22REC..RA6# |
1 | ||
| 17141E - PLATE, EXHAUST MANIFOLD | ||||
| 17148-35030 |
21R..RA61 |
2 | ||
| 17148-35010 |
21R..RA60,61 |
2 | ||
| 17141F - GASKET(FOR EXHAUST MANIFOLD PLATE) | ||||
| 17378-37010 |
21R..RA60,61 |
2 | ||
| 17378-35010 |
21R..RA61 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 90116-08051 |
21R#..RA60,61 L=40,S=11&11 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
21R#,18RG..RA6# L=46.5,S=14&20 |
3 | ||
| 90116-10087 |
21R#,22REC..RA60,61,65 L=46.5,S=14&20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10011 |
21R#..RA60,61 EXHAUST MANIFOLD,L=42,S=12&25 |
4 | ||
| 90116-08013 |
21R#..RA60,61 INTAKE MANIFOLD |
2 | ||
| 90116-10317 |
21R#..RA60,61 EXHAUST MANIFOLD,L=36,S=13&13 |
3 | ||
| 90116-10067 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,UPR |
4 | ||
| 90116-08172 |
21R#,22REC..RA60,61,65 INTAKE MANIFOLD,L=37,S=9&18.5 |
2 | ||
| 90116-10064 |
21R#,22REC..RA60,61,65 EXHAUST MANIFOLD,LWR |
4 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17167-35070 |
21R..RA61 |
1 | ||
| 17168-37020 |
21R#..RA60,61 |
1 | ||
| 17167-35050 |
21R..RA60,61 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-35060 |
21R#,22REC..RA6# |
1 | ||
| 17173-35020 |
21R#..RA60,61 |
1 | ||
| 17173-35060 |
21R#,22REC..RA6#..ARL,EUR |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-35030 |
21R#,22REC..RA6#..ARL,EUR |
1 | ||
| 17177-38011 |
21R..RA60,61 |
1 | ||
| 17177-37010 |
21R..RA60,61 |
1 | ||
| Common parts | ||||
| 90105-08112 | ||||
| 90105-10116 | ||||
| 90179-08146 | ||||
| 90179-10052 | ||||
| 91611-60616 | ||||
| 91611-60816 | ||||
| 91621-60828 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
