RA61R-BCPSSW (1981)
Toyota Celica
(8108- )

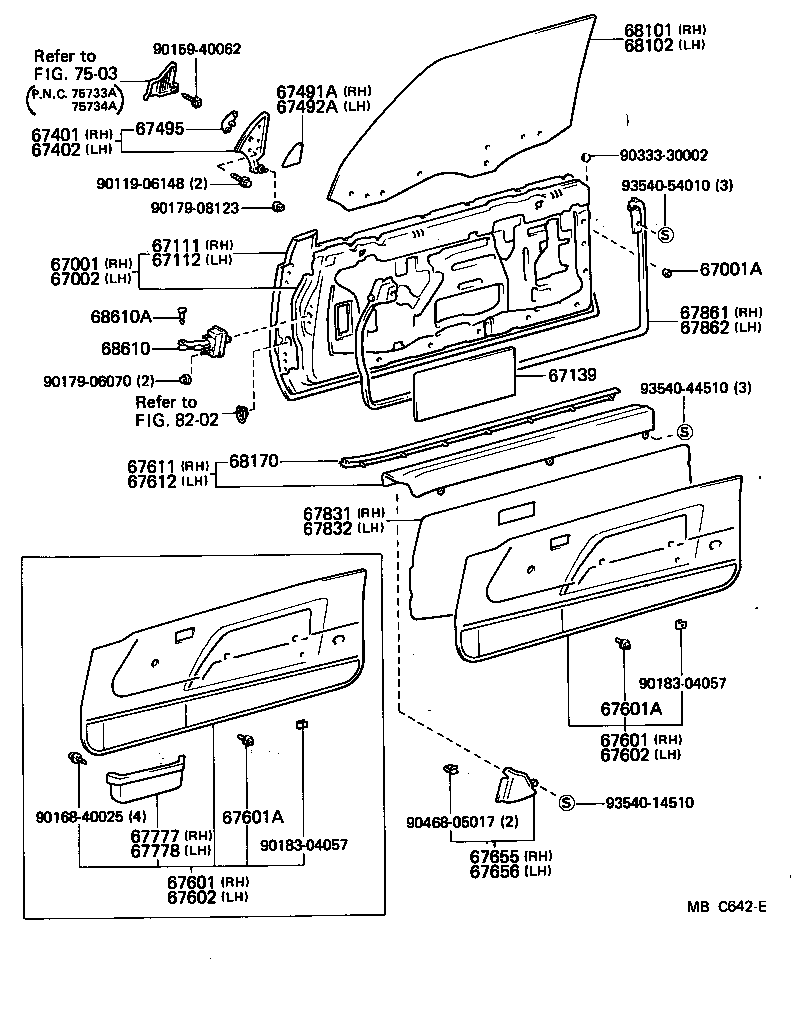

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-14230 |
AA63,MA61,RA60,61,63,TA60..EUR,GEN,SA |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09006 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-14260 |
AA63,MA61,RA60,61,63,TA60..EUR,GEN,SA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-14180 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-14190 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 67139 - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67812-20050 |
AA63,MA61,RA60,61,63,TA60..EUR,GEN,SA |
2 | ||
| 67401 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH | ||||
| 67401-14130 |
MA61,RA6#,TA60..ARL,EUR,GEN,ME W/*RCM |
1 | ||
| 67401-14190 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN |
1 | ||
| 67402 - BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH | ||||
| 67402-14130 |
MA61,RA6#,TA60..ARL,EUR,GEN,ME W/*RCM |
1 | ||
| 67402-14190 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-14060 |
MA61,RA6#,TA60..ARL,EUR,GEN,ME W/*RCM |
1 | ||
| 67491-14070 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN W/O MIRROR |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-14070 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN W/O MIRROR |
1 | ||
| 67492-14060 |
MA61,RA6#,TA60..ARL,EUR,GEN,ME W/*RCM |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-14060 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN LH |
1 | ||
| 67495-14060 |
RA61..EUG;MA61,RA60,63,TA60..EUR,GEN RH |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1B59004 |
RA60,61..RHD..ST BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1B59006 |
RA60,61..RHD..ST DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-1B59001 |
RA60,61..RHD..ST BLACK,BLACK,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1B59004 |
RA60,61..RHD..ST BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1B59006 |
RA60,61..RHD..ST DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67610-1B59001 |
RA60,61..RHD..ST BLACK,BLACK,TRIM2# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AA63,MA61,RA6#,SA63,TA60 |
22 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AA63,MA61,RA6#,SA63,TA60 |
22 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B28001 |
RA60,61..RHD..ST BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1B28004 |
RA60,61..RHD..ST BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1B28006 |
RA60,61..RHD..ST DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1B28001 |
RA60,61..RHD..ST BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1B28004 |
RA60,61..RHD..ST BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1B28006 |
RA60,61..RHD..ST DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67611 - BOARD, FRONT DOOR TRIM, UPPER RH | ||||
| 67610-1B77001 |
AA63,MA61,RA6#,SA63,TA60 BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1B77004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1B77006 |
AA63,RA6#,SA63,TA60 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67612 - BOARD, FRONT DOOR TRIM, UPPER LH | ||||
| 67620-1B46001 |
AA63,MA61,RA6#,SA63,TA60 BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1B46004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1B46006 |
AA63,RA6#,SA63,TA60 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67655 - GARNISH, FRONT DOOR TRIM, RH | ||||
| 67655-1401006 |
AA63,RA6#,SA63,TA60 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67655-1401004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 67655-1401001 |
AA63,MA61,RA6#,SA63,TA60 BLACK,BLACK,TRIM2# |
1 | ||
| 67656 - GARNISH, DOOR TRIM, LH | ||||
| 67656-1401006 |
AA63,RA6#,SA63,TA60 DARK BROWN,BROWN,TRIM4# |
1 | ||
| 67656-1401004 |
AA63,MA61,RA6#,SA63,TA60 BLUE,BLUE,TRIM8# |
1 | ||
| 67656-1401001 |
AA63,MA61,RA6#,SA63,TA60 BLACK,BLACK,TRIM2# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-14120 |
MA61,RA6#,TA60..ARL,EUR,GEN,ME |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-14050 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-14250 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-14250 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-14270 |
AA63,MA61,RA6#,SA63,TA60 T=5.0,*TT |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-14280 |
AA63,MA61,RA6#,SA63,TA60 T=5.0,*TT |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68220-14130 |
AA63,MA61,RA6#,SA63,TA60 LH |
1 | ||
| 68170-14160 |
AA63,MA61,RA6#,SA63,TA60 RH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-14040 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-30010 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| Common parts | ||||
| 90119-06148 | ||||
| 90159-40062 | ||||
| 90168-40025 | ||||
| 90179-06070 | ||||
| 90179-08123 | ||||
| 90183-04057 | ||||
| 90333-30002 | ||||
| 90468-05017 | ||||
| 93540-14510 | ||||
| 93540-44510 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 7503 | ||||
| 8202 | ||||
