RA61R-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)TCB..GEN ; (8108- )AA63,MA61,RA6#,SA63

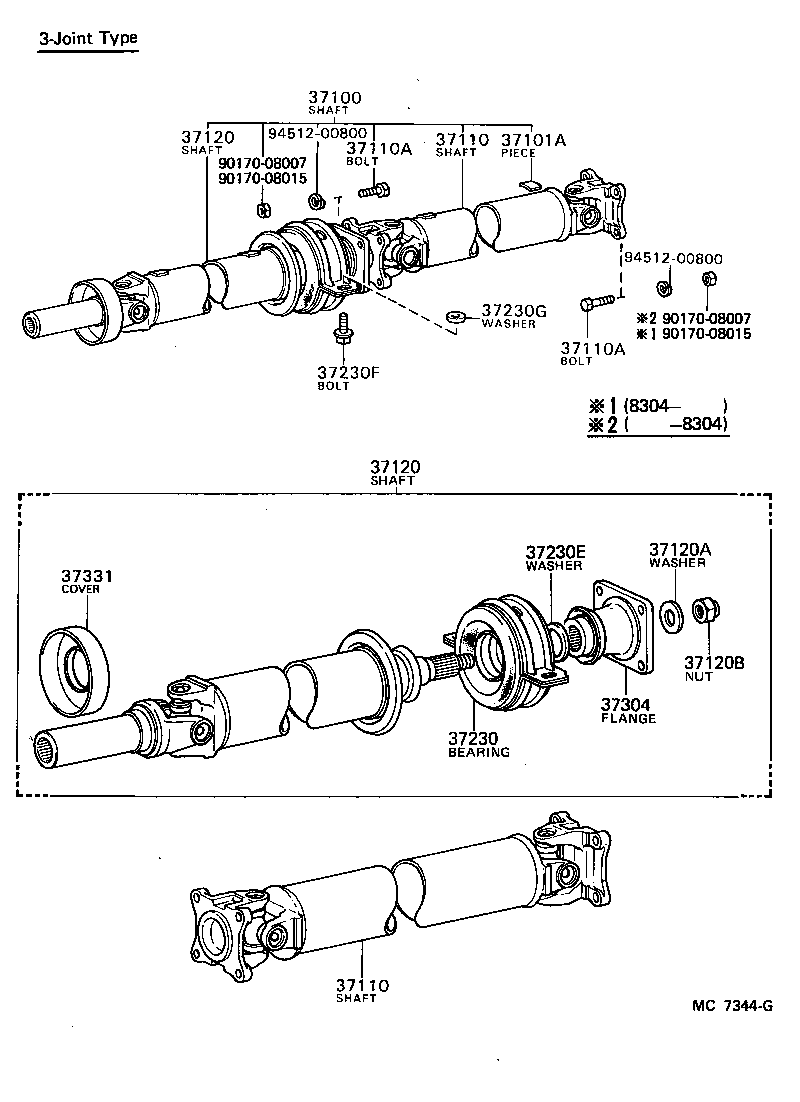

Click highlighted areas on diagram

diagram 37100 37101A 37110 37110 37110A 37110A 37120 37120 37120A 37120B 37230 37230E 37230F 37230G 37304 37331 9017008007 9017008007 9017008015 9017008015 9451200800 9451200800
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-14450

RA61..4FC..EUG

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

AA63,MA61,RA6#,SA63,TA60

10G,L=20.7,10G

 2
90937-01136

AA63,MA61,RA6#,SA63,TA60

20G,L=41.4,20G

 2
90937-01148

AA63,MA61,RA6#,SA63,TA60

4G,T=2.0,4G

 2
90937-01147

AA63,MA61,RA6#,SA63,TA60

2G,T=2.0,2G

 2
90937-01140

AA63,MA61,RA6#,SA63,TA60

30G,L=62.2,30G

 2
90937-01151

AA63,MA61,RA6#,SA63,TA60

12G,L=24.9,12G

 2
90937-01152

AA63,MA61,RA6#,SA63,TA60

14G,L=29.0,14G

 2
90937-01156

AA63,MA61,RA6#,SA63,TA60

24G,L=49.7,24G

 2
90937-01154

AA63,MA61,RA6#,SA63,TA60

18G,L=37.3,18G

 2
90937-01153

AA63,MA61,RA6#,SA63,TA60

16G,L=33.2,16G

 2
90937-01158

AA63,MA61,RA6#,SA63,TA60

28G,L=58.1,28G

 2
90937-01150

AA63,MA61,RA6#,SA63,TA60

8G,L=16.6,8G

 2
90937-01157

AA63,MA61,RA6#,SA63,TA60

26G,L=53.9,26G

 2
90937-01149

AA63,MA61,RA6#,SA63,TA60

6G,L=12.4,6G

 2
90937-01155

AA63,MA61,RA6#,SA63,TA60

22G,L=45.6,22G

 2
37110 - SHAFT ASSY, PROPELLER
37110-12410

MA61,RA61,63..EUG

 1
37110 - SHAFT ASSY, PROPELLER
37110-12410

MA61,RA61,63..EUG

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08062

MA61,RA6#,TA60

13G

 8
90101-08087

MA61,RA6#,TA60..ARL,EUR

19G,YELLOW

 2
90101-08086

MA61,RA6#,TA60..ARL,EUR

17G,YELLOW

 2
90101-08085

MA61,RA6#,TA60..ARL,EUR

15G,YELLOW

 2
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08062

MA61,RA6#,TA60

13G

 8
90101-08087

MA61,RA6#,TA60..ARL,EUR

19G,YELLOW

 2
90101-08086

MA61,RA6#,TA60..ARL,EUR

17G,YELLOW

 2
90101-08085

MA61,RA6#,TA60..ARL,EUR

15G,YELLOW

 2
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-24020

RA60,61,65..4FC

 1
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-24020

RA60,61,65..4FC

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

TA60..TCB;AA63,MA61,RA6#,SA63

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

TA60..TCB;AA63,MA61,RA6#,SA63

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-24010

AA63,MA61,RA6#,SA63

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10046

TA60..TCB;AA63,MA61,RA6#,SA63

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

TA60..TCB;AA63,MA61,RA6#,SA63

T=4.5,T=4.5

 2
90201-10017

TA60..TCB;AA63,MA61,RA6#,SA63

T=9.0,T=9.0

 2
90201-10033

TA60..TCB;AA63,MA61,RA6#,SA63

T=6.5,T=6.5

 2
90201-10010

TA60..TCB;AA63,MA61,RA6#,SA63

T=12.0,T=12.0

 2
37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT
37304-22012

TA60..TCB;AA63,MA61,RA6#,SA63

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

TA60..3FC;MA61,RA6#,SA63

 1
Common parts
90170-08007
90170-08015
94512-00800
