RA61R-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21R#

Click highlighted areas on diagram

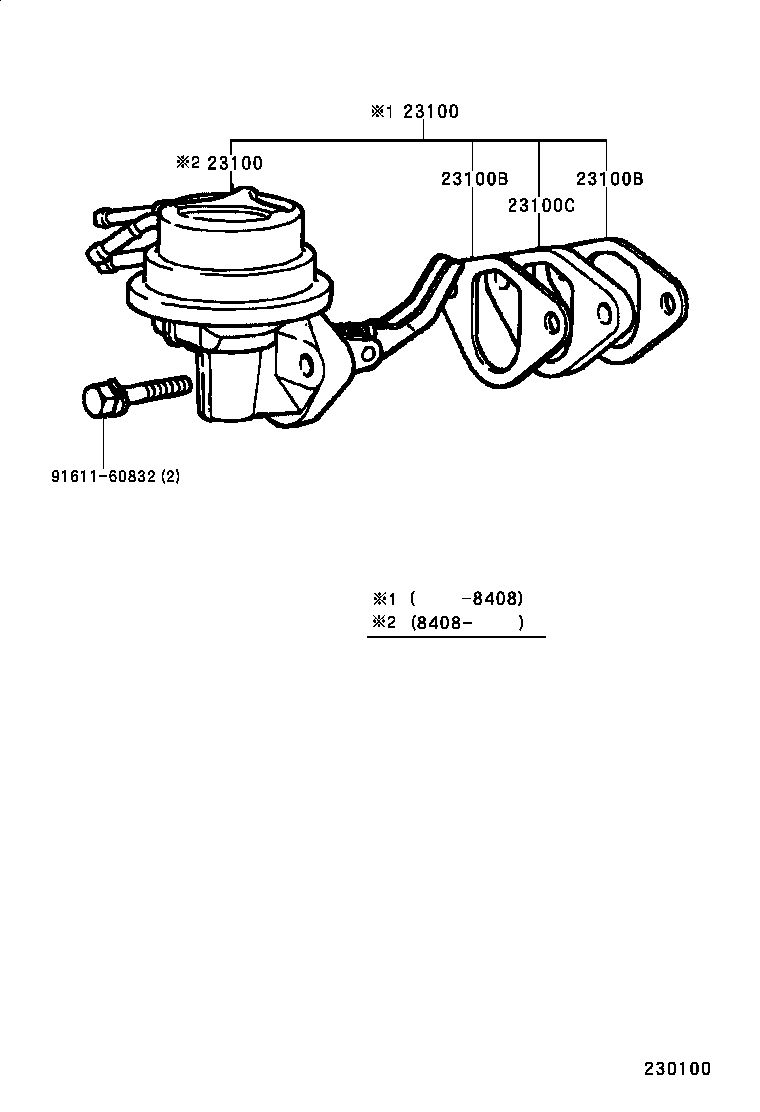

diagram 23100 23100 23100B 23100B 23100C 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39346

21R#..RA60,61..EUR,GEN,ME,SAA

 1
23100 - PUMP ASSY, FUEL
23100-39346

21R#..RA60,61..EUR,GEN,ME,SAA

 1
23100B - GASKET, FUEL PUMP
90923-05005

21R#,18RG..RA60,61,63

 2
23100B - GASKET, FUEL PUMP
90923-05005

21R#,18RG..RA60,61,63

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

21R#,18RG..RA60,61,63

 1
Common parts
91611-60832
