RA61R-BCPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)21R#

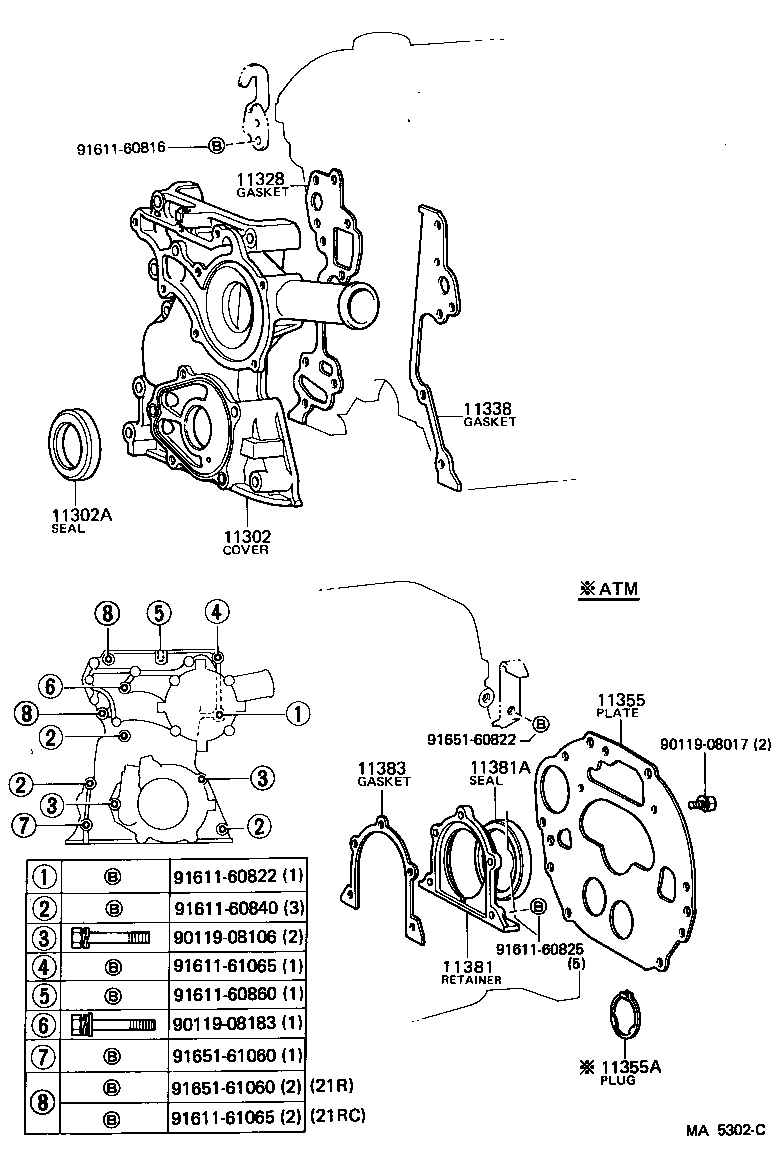

Click highlighted areas on diagram

diagram 11302 11302A 11328 11338 11355 11355A 11381 11381A 11383 9011908017 9011908106 9011908183 9161160816 9161160822 9161160825 9161160840 9161160860 9161161065 9161161065 9165160822 9165161060 9165161060
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-38010

21R#..RA60,61

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45002

21R#..RA60,61

TC 45 68 12

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38020

21R#..RA60,61

 1
11338 - GASKET, TIMING CHAIN COVER, NO.2
11338-38030

21R#..RA60,61

 1
11355 - PLATE, REAR END
11355-38021

21R#..RA60,61..4FC

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01128

21R#,22REC..RA60,61,65..4FC

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38010

21R#,22REC,18RG..RA6#

 1
11381A - SEAL, ENGINE REAR OIL
90311-80001

21R#,18RG..RA6#

TC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

21R#,18RG..RA6#

 1
Common parts
90119-08017
90119-08106
90119-08183
91611-60816
91611-60822
91611-60825
91611-60840
91611-60860
91611-61065
91651-60822
91651-61060
