RA61R-BCMSS (1983)
Toyota Celica
(8108-8507)LT..EUG ; (8108-8507)RA61,TA60..ST,XT; (8108-8507)AA63,RA60,63,65,SA63.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-14010 |
RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45210-14040 |
RA60,61..RHD..(ST,XT) W/PS |
1 | ||
| 45210-14090 |
RA61..RHD..GEN W/PS |
1 | ||
| 45210-14130 |
AA63,RA61,SA63..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 UPR |
1 | ||
| 90363-30007 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 UPR |
1 | ||
| 90363-30007 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 UPR |
1 | ||
| 90363-30007 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AA63,MA61,RA6#,SA63,TA60 T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-14050 |
RA61,63..RHD;RA60..RHD..(GT,XT) |
1 | ||
| 45220-14080 |
RA61..RHD;RA60..RHD..(GT,XT) W/PS |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14100 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
RA61..RHD;AA63,RA65,SA63,TA60 |
1 | ||
| 45209-14020 |
RA60,61,65,SA63 W/PS |
1 | ||
| 45209-14010 |
RA6#,TA60 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
MA61,RA6#,TA60 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24030 |
RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45280-24011 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-12030 |
RA63;RA60,61,TA60..LT,ST,XT |
1 | ||
| 45897-14010 |
RA61;MA61,RA60,63..GT,SPR,XT W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492201 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492206 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-2490004 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490006 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1492204 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490001 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) BLACK,BLACK,TRIM2# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-1401004 |
RA61..ST BLUE,BLUE,TRIM8# |
1 | ||
| 45288-1401006 |
RA61..ST DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45288-1401001 |
RA61..ST BLACK,BLACK,TRIM2# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-24011 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91651-40614 | ||||
| 91655-60620 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94140-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 95381-02020 | ||||
(8108-8507)RA60..ST,XT ; (8108-8507)RA65,SA63..ST ; (8108-8507)AA63,RA61,63,TA60..E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-14010 |
RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45210-14040 |
RA60,61..RHD..(ST,XT) W/PS |
1 | ||
| 45210-14090 |
RA61..RHD..GEN W/PS |
1 | ||
| 45210-14130 |
AA63,RA61,SA63..RHD |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 UPR |
1 | ||
| 90363-30007 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 UPR |
1 | ||
| 90363-30007 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AA63,MA61,RA6#,SA63,TA60 T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AA63,MA61,RA6#,SA63,TA60 T=1.20,T=1.2 |
2 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-14100 |
RA60..ST,XT;RA65,SA63..ST;AA63,RA61,63,TA60 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-32010 |
RA61..RHD;AA63,RA65,SA63,TA60 |
1 | ||
| 45209-14020 |
RA60,61,65,SA63 W/PS |
1 | ||
| 45209-14010 |
RA6#,TA60 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-14100 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24011 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
MA61,RA6#,TA60 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
RA61..RHD;RA65,SA63..ST |
1 | ||
| 45269-35010 |
SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24030 |
RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45280-24011 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING |
1 | ||
| 45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET) | ||||
| 45897-12030 |
RA63;RA60,61,TA60..LT,ST,XT |
1 | ||
| 45897-14010 |
RA61;MA61,RA60,63..GT,SPR,XT W/TILT STEERING |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1492201 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1492206 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-2490004 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490006 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1492204 |
MA61,RA61,63..RHD;RA60..RHD..(GT,XT) W/TILT STEERING,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490001 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) BLACK,BLACK,TRIM2# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-24011 |
RA65,SA63..ST;AA63,RA61,63..RHD;RA60..RHD..(ST,XT) |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90980-07195 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 93315-14010 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||

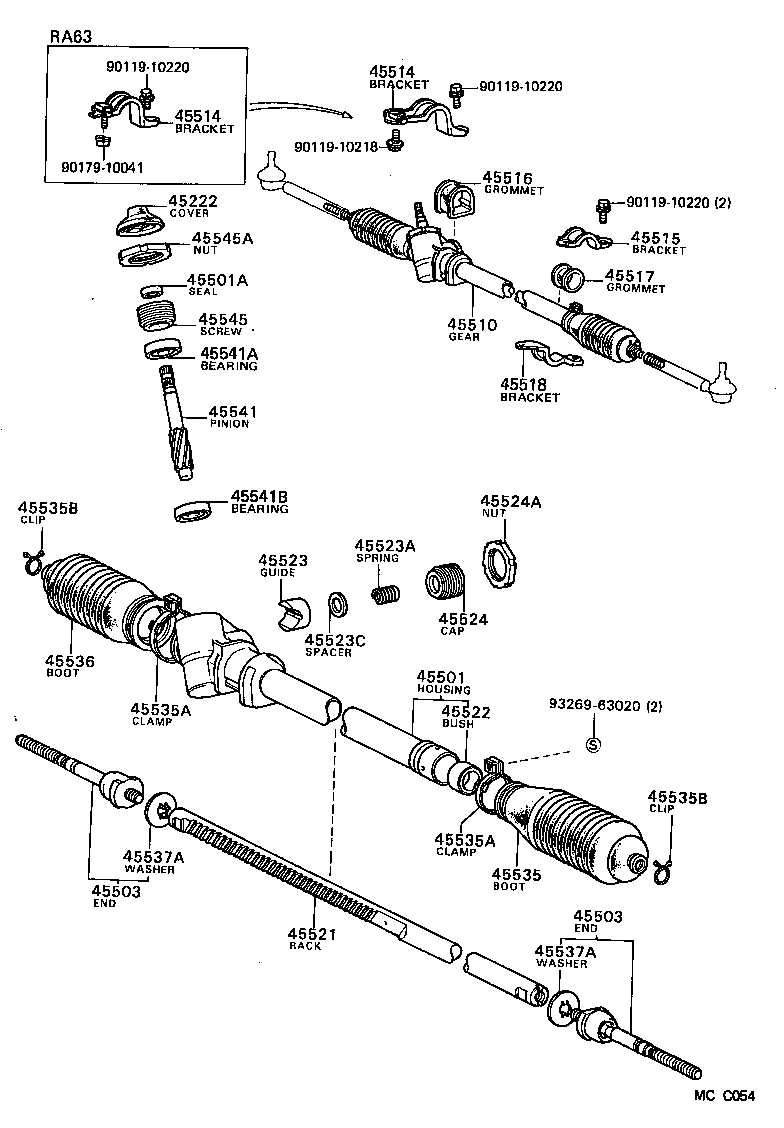

(8108-8507)AA63,RA6#,SA63..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
RA6#,TA60 |
1 | ||
| 45222-20010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-14011 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA6#,TA60 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RA6#,TA60 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-14020 |
RA6#,SA63..RHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14020 |
RA60,61,65..RHD W/PS |
1 | ||
| 45514-14012 |
AA63,RA60,61,SA63..RHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-14020 |
RA60,61,65..RHD W/PS |
1 | ||
| 45514-14012 |
AA63,RA60,61,SA63..RHD |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-14040 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45515-14020 |
RA60,61,65..RHD W/PS |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
AA63,MA61,RA6#,SA63..RHD |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-14010 |
RA60,61,65,SA63..RHD W/PS |
1 | ||
| 45517-14020 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45518 - BRACKET, STEERING RACK HOUSING, NO.3 | ||||
| 45518-14010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-14021 |
RA6#,SA63..RHD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22010 |
RA6#..RHD |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
AA63,RA6#,SA63,TA60 ID=61.5 |
1 | ||
| 90461-10273 |
AA63,RA6#,SA63,TA60 ID=41.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10524 |
AA63,RA6#,SA63,TA60 ID=61.5 |
1 | ||
| 90461-10273 |
AA63,RA6#,SA63,TA60 ID=41.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-14020 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA6#,TA60 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RA6#,TA60 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22010 |
AA63,RA6#,SA63..RHD |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
AA63,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 90119-10218 | ||||
| 90119-10220 | ||||
| 90179-10041 | ||||
| 93269-63020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
