RA61R-BCMSS (1983)
Toyota Celica
(8108-8408)21R..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-35040 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27060-35060 |
21R#,22REC..RA6# 12V 60A,12V 60A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 27412-45070 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27310-35060 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27310-35061 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 27412-31040 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 90099-10152 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 90099-10125 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63021 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27330-15070 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 90099-10116 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 90099-10140 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52065 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 90099-52065 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 27351-38051 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28030 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27359-16011 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-15070 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27371-31011 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
2 | ||
| 27371-31011 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
2 | ||
| 27372-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27372-31011 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
21R..RA61;21R#,2T#..RA60,TA60 12V 50A,55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21R#,2T#..RA60,61,TA60 12V 50A,55A |
1 | ||
| 27411-35060 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27411-35061 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44031 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-70040 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63021 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27700-43010 |
5MGE..MA61;21R..RA60,61..RHD 12V 55A,65A |
1 | ||
| 27700-43010 |
21R..RA61..RHD 12V 55A |
1 | ||
| Common parts | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10083 | ||||
| 90119-08065 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||

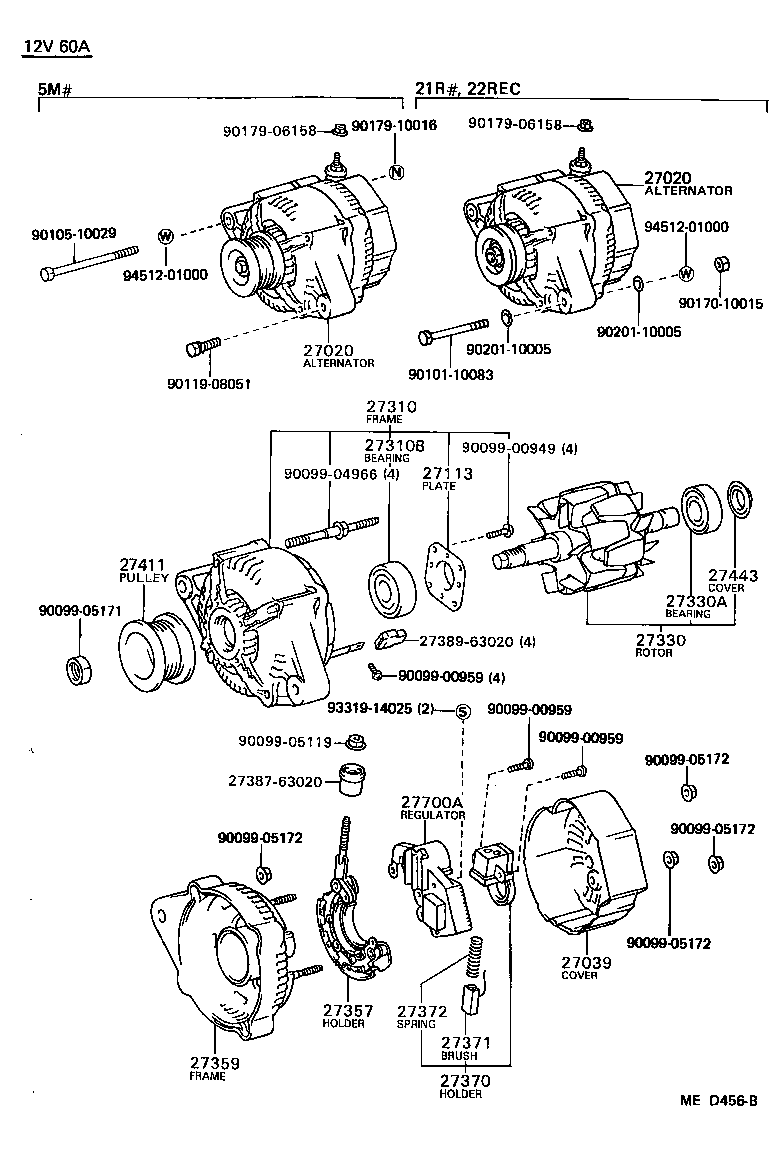

(8308- )5M# ; (8408-8507)21R#,22REC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-35040 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27060-35060 |
21R#,22REC..RA6# 12V 60A,12V 60A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-35040 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27060-35060 |
21R#,22REC..RA6# 12V 60A,12V 60A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-72010 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-38061 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27310-35060 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27310-35061 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 90099-10152 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 90099-10125 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-63021 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27330-15070 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
1 | ||
| 90099-10116 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
1 | ||
| 90099-10140 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28030 |
21R..RA60,61..RHD 12V 55A |
1 | ||
| 27359-16011 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27371-31011 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
2 | ||
| 27371-31011 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21R#,18RG,5MGE,2T#..MA61,RA6#,TA60 12V 50A,55A,65A |
2 | ||
| 27372-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27372-31011 |
21R#,2SC,2TB..RA61,SA63,TA60 12V 50A,55A |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21R#,2T#..RA60,61,TA60 12V 50A,55A |
1 | ||
| 27411-35060 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27411-35061 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-63021 |
21R#,22REC..RA6# 12V 60A |
1 | ||
| 27700-43010 |
5MGE..MA61;21R..RA60,61..RHD 12V 55A,65A |
1 | ||
| 27700-43010 |
21R..RA61..RHD 12V 55A |
1 | ||
| Common parts | ||||
| 27387-63020 | ||||
| 27389-63020 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90101-10083 | ||||
| 90105-10029 | ||||
| 90119-08051 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10005 | ||||
| 93319-14025 | ||||
| 94512-01000 | ||||
