RA61L-BLPSSW (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )LB

Click highlighted areas on diagram

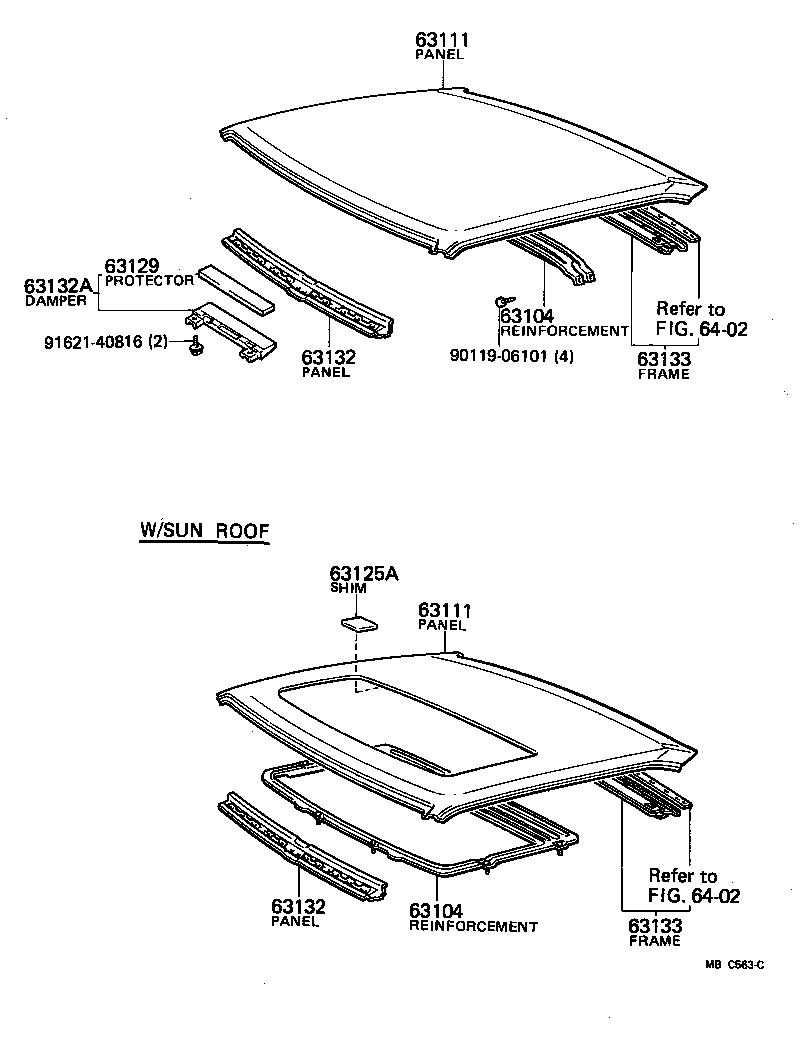

diagram 63104 63104 63111 63111 63125A 63129 63132 63132 63132A 63133 63133 6402 6402 9011906101 9162140816
Part # Description Qty Price
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-14060

AA63,MA61,RA6#,SA63,TA60

W/O SUN ROOF

 1
63142-14030

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-14060

AA63,MA61,RA6#,SA63,TA60

W/O SUN ROOF

 1
63142-14030

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
63111 - PANEL, ROOF
63111-14160

AA63,MA61,RA6#,SA63,TA60..LB

W/O SUN ROOF

 1
63111-14170

RA6#,TA60..LB..(ARL,EUR,GEN)

W/SUN ROOF

 1
63111 - PANEL, ROOF
63111-14160

AA63,MA61,RA6#,SA63,TA60..LB

W/O SUN ROOF

 1
63111-14170

RA6#,TA60..LB..(ARL,EUR,GEN)

W/SUN ROOF

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14070

AA63,MA61,RA6#,SA63,TA60

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-14070

AA63,MA61,RA6#,SA63,TA60

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63105-14030

AA63,MA61,RA6#,SA63,TA60..LB

 1
Common parts
90119-06101
91621-40816
Linked diagrams
6402

(8108- )

Click highlighted areas on diagram

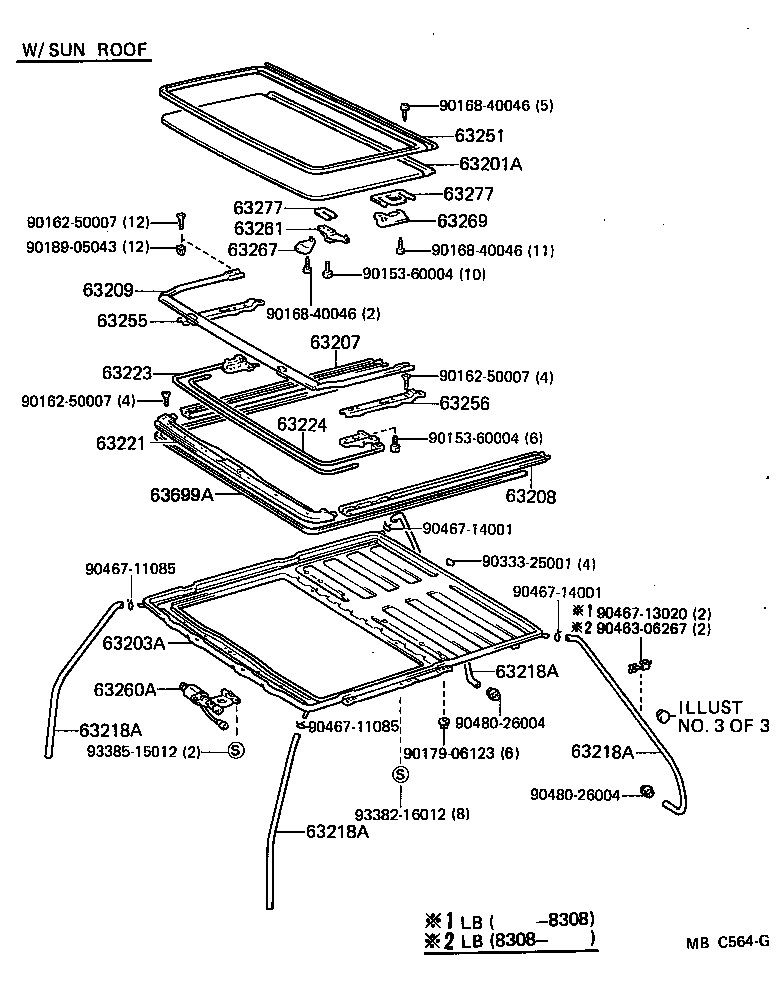

diagram 63201A 63203A 63207 63208 63209 63218A 63218A 63218A 63218A 63221 63223 63224 63251 63255 63256 63260A 63261 63267 63269 63277 63277 63699A 9015360004 9015360004 9016250007 9016250007 9016250007 9016840046 9016840046 9016840046 9017906123 9018905043 9033325001 9046306267 9046711085 9046711085 9046713020 9046714001 9046714001 9048026004 9048026004 9338216012 9338515012
Part # Description Qty Price
63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63201-14030

RA6#,TA60..ARL,EUR,GEN

 1
63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF
63203-14040

RA6#,TA60..LB..(ARL,EUR,GEN)

 1
63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH
63207-20010

RA6#,TA60..ARL,EUR,GEN

 1
63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH
63208-20010

RA6#,TA60..ARL,EUR,GEN

 1
63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR
63209-14020

RA6#,TA60..ARL,EUR,GEN

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-14010

RA6#,TA60..LB..(ARL,EUR,GEN)

RR,ID=12,L=1800

 2
90446-12023

RA6#,TA60..ARL,EUR,GEN

FR,ID=10,L=1400

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-14010

RA6#,TA60..LB..(ARL,EUR,GEN)

RR,ID=12,L=1800

 2
90446-12023

RA6#,TA60..ARL,EUR,GEN

FR,ID=10,L=1400

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-14010

RA6#,TA60..LB..(ARL,EUR,GEN)

RR,ID=12,L=1800

 2
90446-12023

RA6#,TA60..ARL,EUR,GEN

FR,ID=10,L=1400

 2
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-14010

RA6#,TA60..LB..(ARL,EUR,GEN)

RR,ID=12,L=1800

 2
90446-12023

RA6#,TA60..ARL,EUR,GEN

FR,ID=10,L=1400

 2
63221 - CASING, SLIDING ROOF CABLE GUIDE
63221-20010

RA6#,TA60..ARL,EUR,GEN

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-20010

RA6#,TA60..ARL,EUR,GEN

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-20010

RA6#,TA60..ARL,EUR,GEN

 1
63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF
63251-14020

RA6#,TA60..ARL,EUR,GEN

 1
63255 - COVER, SLIDING ROOF GUIDE RAIL, RH
63255-20010

RA6#,TA60..ARL,EUR,GEN

 1
63256 - COVER, SLIDING ROOF GUIDE RAIL, LH
63255-20010

RA6#,TA60..ARL,EUR,GEN

 1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-20010

RA6#,TA60..ARL,EUR,GEN

 1
63261 - SHOE, SLIDING ROOF, FRONT
63261-20010

RA6#,TA60..ARL,EUR,GEN

 2
63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP
63268-20010

RA6#,TA60..ARL,EUR,GEN

LH

 1
63267-20010

RA6#,TA60..ARL,EUR,GEN

RH

 1
63269 - RETAINER, SLIDING ROOF WEATHERSTRIP
63269-20010

RA6#,TA60..ARL,EUR,GEN

RH

 1
63279-20010

RA6#,TA60..ARL,EUR,GEN

LH

 1
63277 - SHIM, SLIDING ROOF RAIL
63277-14020

RA6#,TA60..ARL,EUR,GEN

L=48X28

 1
63277-20010

RA6#,TA60..ARL,EUR,GEN

L=91.5X55

 1
63277 - SHIM, SLIDING ROOF RAIL
63277-14020

RA6#,TA60..ARL,EUR,GEN

L=48X28

 1
63277-20010

RA6#,TA60..ARL,EUR,GEN

L=91.5X55

 1
Common parts
90153-60004
90162-50007
90168-40046
90179-06123
90189-05043
90333-25001
90463-06267
90467-11085
90467-13020
90467-14001
90480-26004
93382-16012
93385-15012

(8108- )

Click highlighted areas on diagram

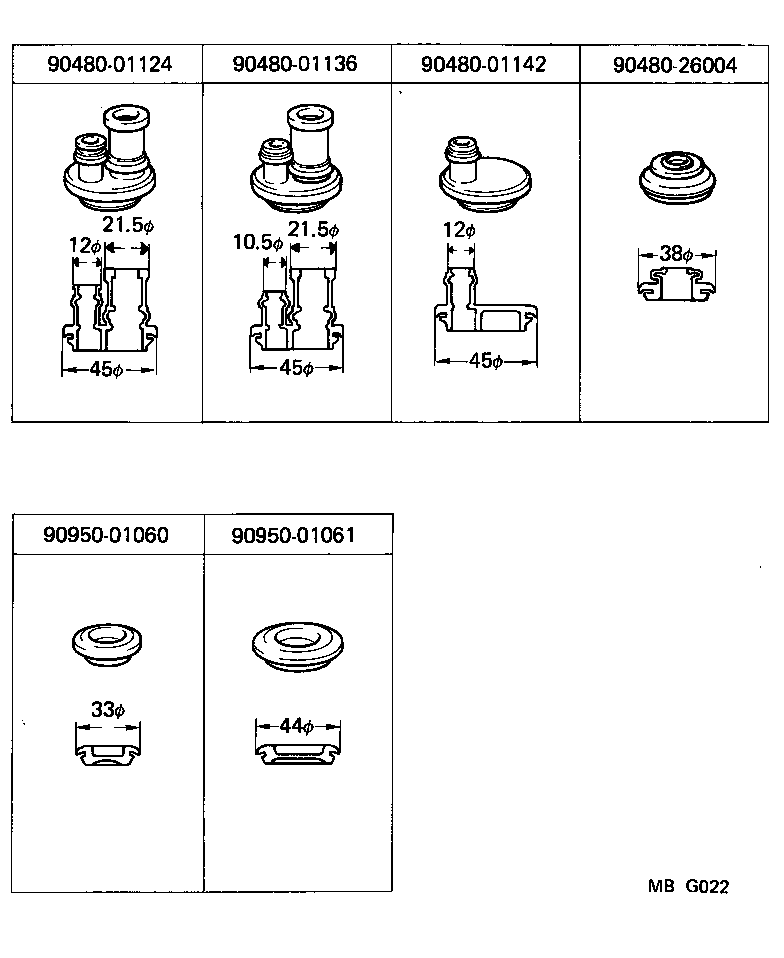

diagram 9048001124 9048001136 9048001142 9048026004 9095001060 9095001061
Part # Description Qty Price
Common parts
90480-01124
90480-01136
90480-01142
90480-26004
90950-01060
90950-01061
