RA61L-BLPMS (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8507)AA63,RA6#,SA63,TA60

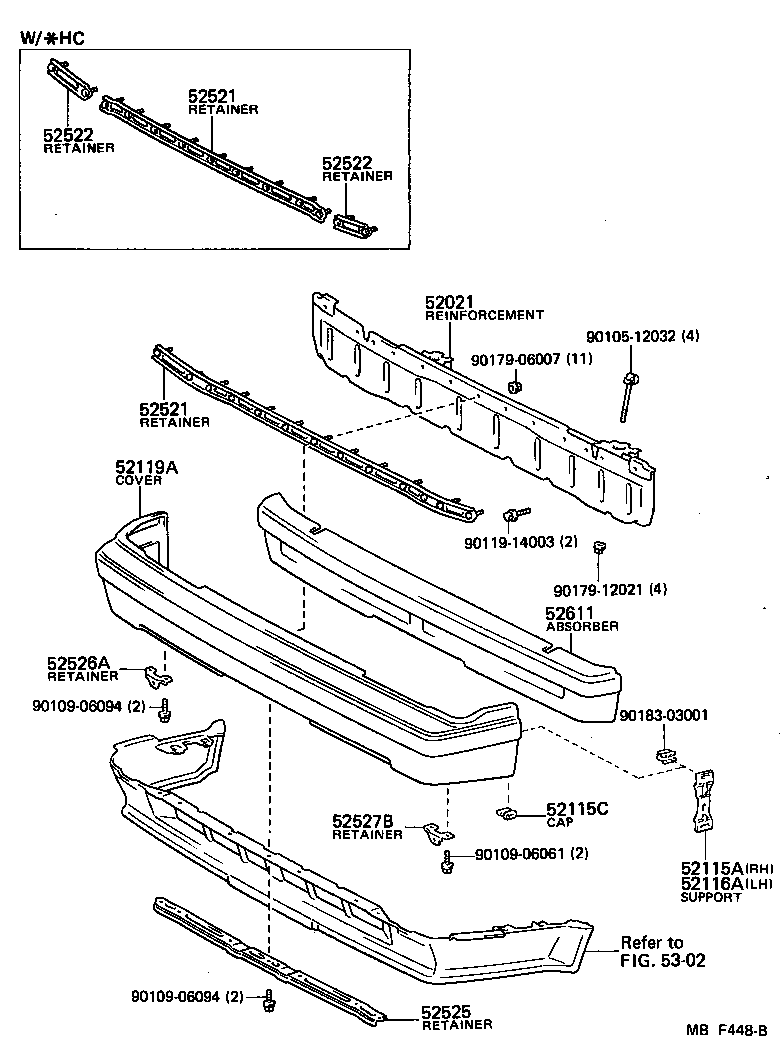

Click highlighted areas on diagram

diagram 52021 52115A 52115C 52116A 52119A 52521 52521 52522 52522 52525 52526A 52527B 52611 5302 9010512032 9010906061 9010906094 9010906094 9011914003 9017906007 9017912021 9018303001
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-14090

RA6#,TA60

 1
52021-14120

AA63,RA6#,SA63,TA60

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14080

RA6#,TA60

 1
52115-14100

AA63,RA6#,SA63,TA60

 1
52115C - CAP, FRONT BUMPER, SIDE SUPPORT
90386-07007

AA63,RA6#,SA63,TA60

 4
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-14060

RA6#,TA60

 1
52116-14070

AA63,RA6#,SA63,TA60

 1
52119A - COVER, FRONT BUMPER
52119-14902

RA6#,TA60..GT,ST,XT

 1
52119-14904

AA63,RA6#,SA63,TA60

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14050

RA6#,TA60

 1
52521-14070

AA63,RA6#,SA63,TA60

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-14050

RA6#,TA60

 1
52521-14070

AA63,RA6#,SA63,TA60

 1
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14030

RA6#,TA60

 2
52522 - RETAINER, FRONT BUMPER UPPER SIDE
52522-14030

RA6#,TA60

 2
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-14020

AA63,RA6#,SA63,TA60

 1
52506-14010

RA6#,TA60

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-14060

AA63,RA6#,SA63,TA60

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-14010

AA63,RA6#,SA63,TA60

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-14060

RA6#,TA60

 1
52611-14080

AA63,RA6#,SA63,TA60

 1
Common parts
90105-12032
90109-06061
90109-06094
90119-14003
90179-06007
90179-12021
90183-03001
Linked diagrams
5302
