RA61L-BLMMS (1983)
Toyota Celica
Production
Aug 1983
-
Jul 1985
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308-8507)AA63,RA6#,SA63,TA60

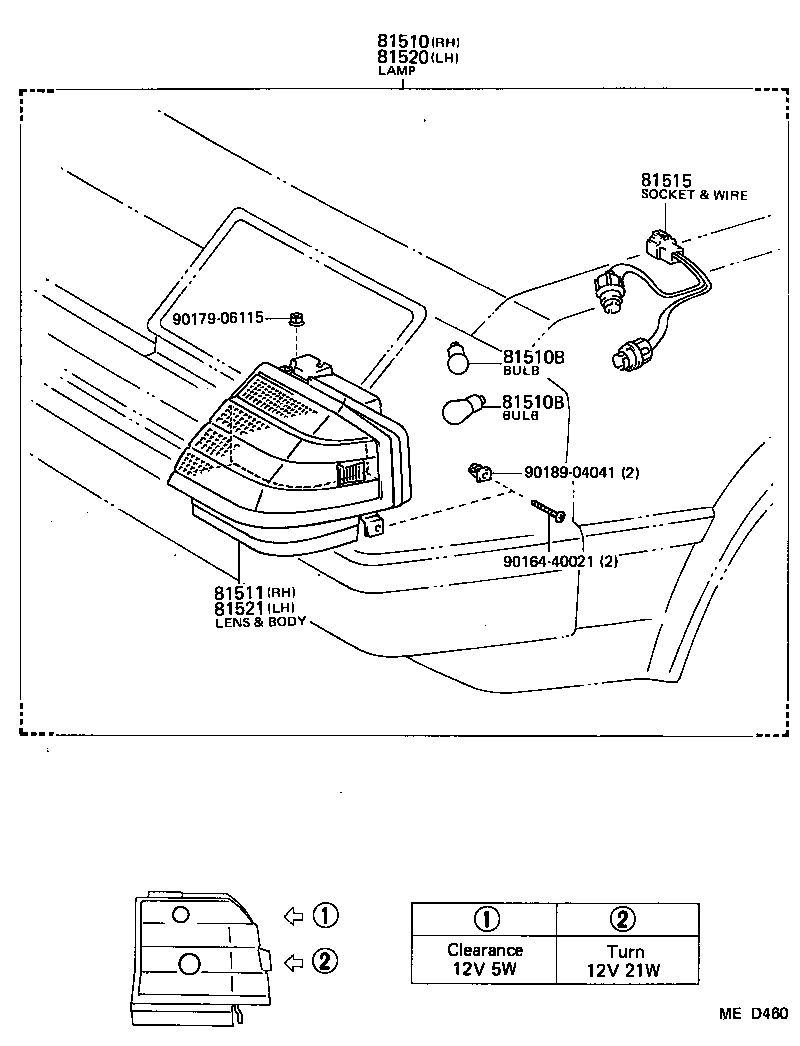

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-19687 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 81510-19685 |
RA6#,TA60 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
MA61,RA6#,TA60 12V 21W,12V 21W |
2 | ||
| 99132-11050 |
AA63,RA6#,SA63,TA60 12V 5W,12V 5W |
2 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
MA61,RA6#,TA60 12V 21W,12V 21W |
2 | ||
| 99132-11050 |
AA63,RA6#,SA63,TA60 12V 5W,12V 5W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-14252 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 81511-14250 |
RA6#,TA60 |
1 | ||
| 81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY | ||||
| 81515-14250 |
RA6#,TA60 |
2 | ||
| 81515-14252 |
AA63,RA6#,SA63,TA60 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-19687 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 81520-19685 |
RA6#,TA60 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-14250 |
RA6#,TA60 |
1 | ||
| 81521-14252 |
AA63,RA6#,SA63,TA60 |
1 | ||
| Common parts | ||||
| 90164-40021 | ||||
| 90179-06115 | ||||
| 90189-04041 | ||||
