RA61L-BLMMS (1983)
Toyota Celica
(8108-8408)21R# ; (8408-8507)21R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
21R#..RA60,61..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-35180 |
21R..RA61..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37100 |
21R..RA60,61..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37090 |
21R..RA61..GEN,SAA |
1 | ||
| 17700-37180 |
21R..RA61..GEN,SAA |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
21R#..RA60,61 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
21R#..RA60,61 |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
21R#..RA60,61 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35060 |
21R#..RA60,61 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
21R#..RA60,61..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
21R#..RA60,61..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
21R#..RA60,61..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
21R#..RA60,61..ARL,EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-37010 |
21R#..RA60,61 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21R#..RA60,61 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21R#..RA60,61 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-35010 |
21R#..RA60,61 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
21R#..RA60,61 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
21R#..RA60,61 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
21R#..RA60,61 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-14010 |
21R#..RA60,61 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01025 |
21R#..RA60,61 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
21R#..RA60,61 FENDER SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01025 |
21R#..RA60,61 AIR CLEANER SIDE |
1 | ||
| 96111-10780 |
21R#..RA60,61 FENDER SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-14010 |
21R#..RA60,61 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90339-03002 | ||||
| 91655-40616 | ||||
| 94612-10800 | ||||

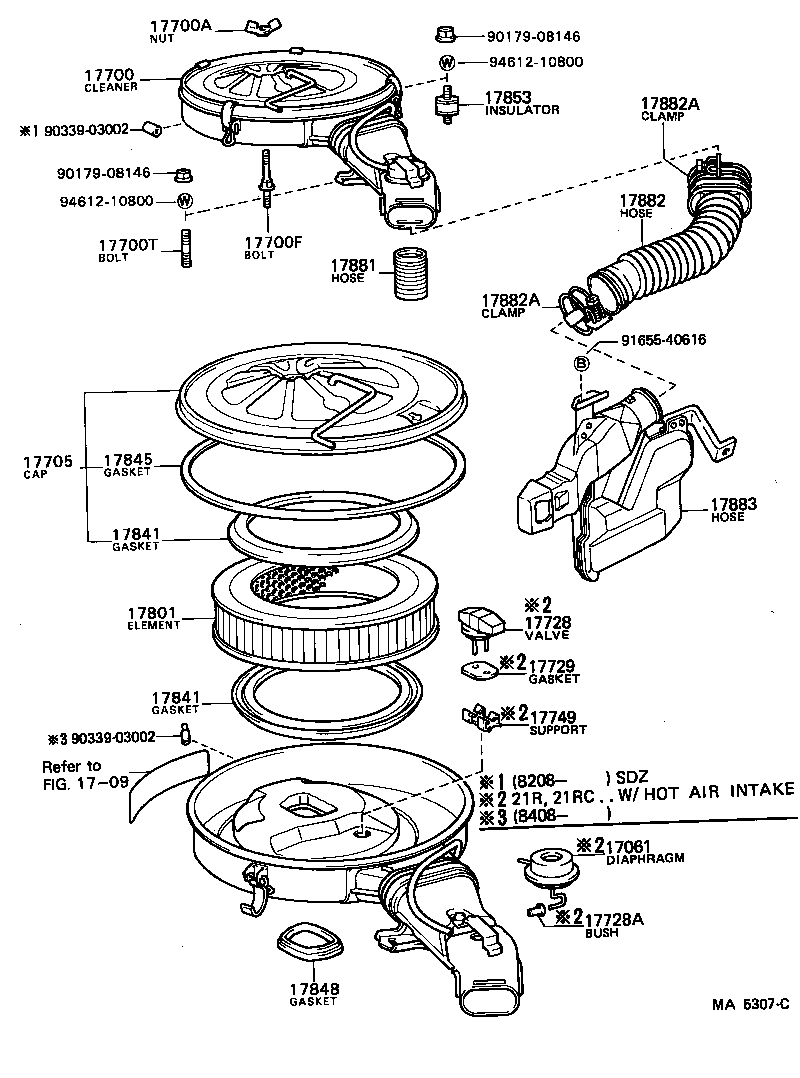

| Linked diagrams | ||||
| 1709 | ||||
