RA61L-BLMMCC (1982)

Toyota Celica

Production Aug 1982 - Jul 1985
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21RC

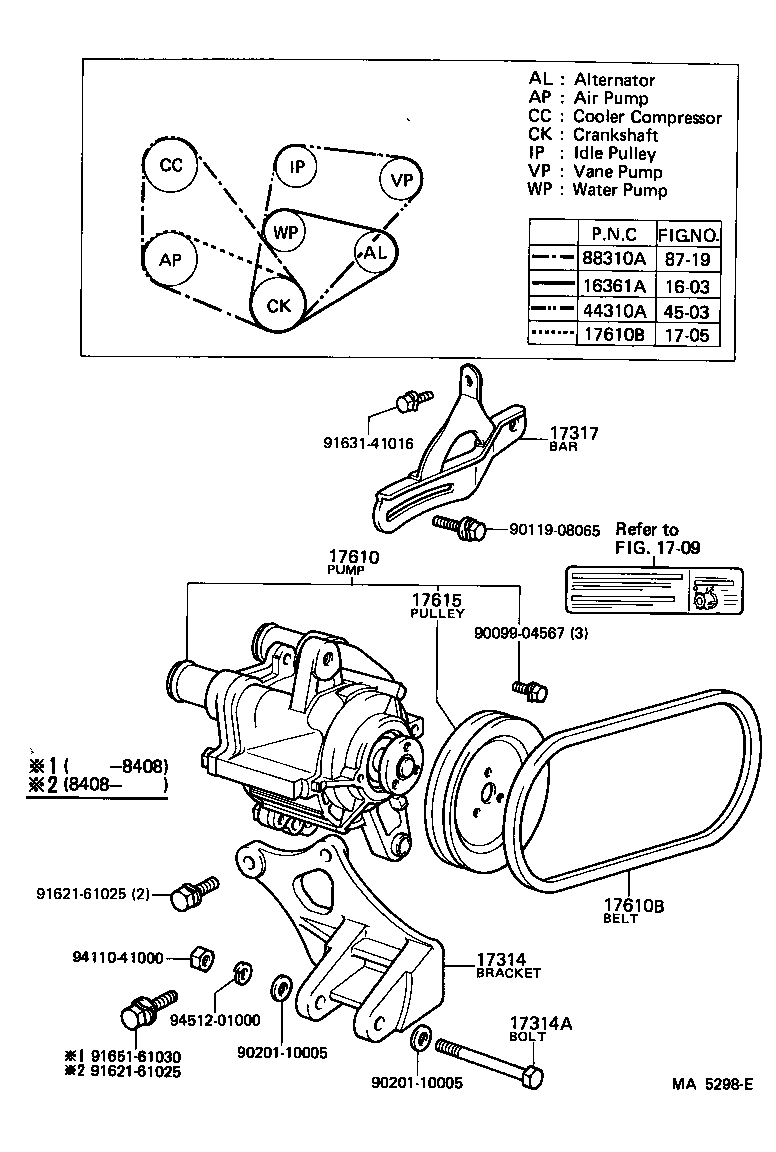

Click highlighted areas on diagram

diagram 1603 1705 1709 17314 17314A 17317 17610 17610B 17615 4503 8719 9009904567 9011908065 9020110005 9020110005 9162161025 9162161025 9163141016 9165161030 9411041000 9451201000
Part # Description Qty Price
17314 - BRACKET, AIR PUMP
17314-35010

21RC..RA60,61

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90101-10463

21RC..RA60,61

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-38020

21RC..RA60,61

 1
17610 - PUMP ASSY, AIR
17610-35010

21RC..RA60,61

 1
17610-35011

21RC..RA61

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

21RC..RA60,61

L=820

 1
17615 - PULLEY(FOR AIR PUMP)
17615-35010

21RC..RA60,61

 1
Common parts
90099-04567
90119-08065
90201-10005
91621-61025
91631-41016
91651-61030
94110-41000
94512-01000
Linked diagrams
1603
1705
1709
4503
8719
