RA61L-BCPMSV (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8507)21R#

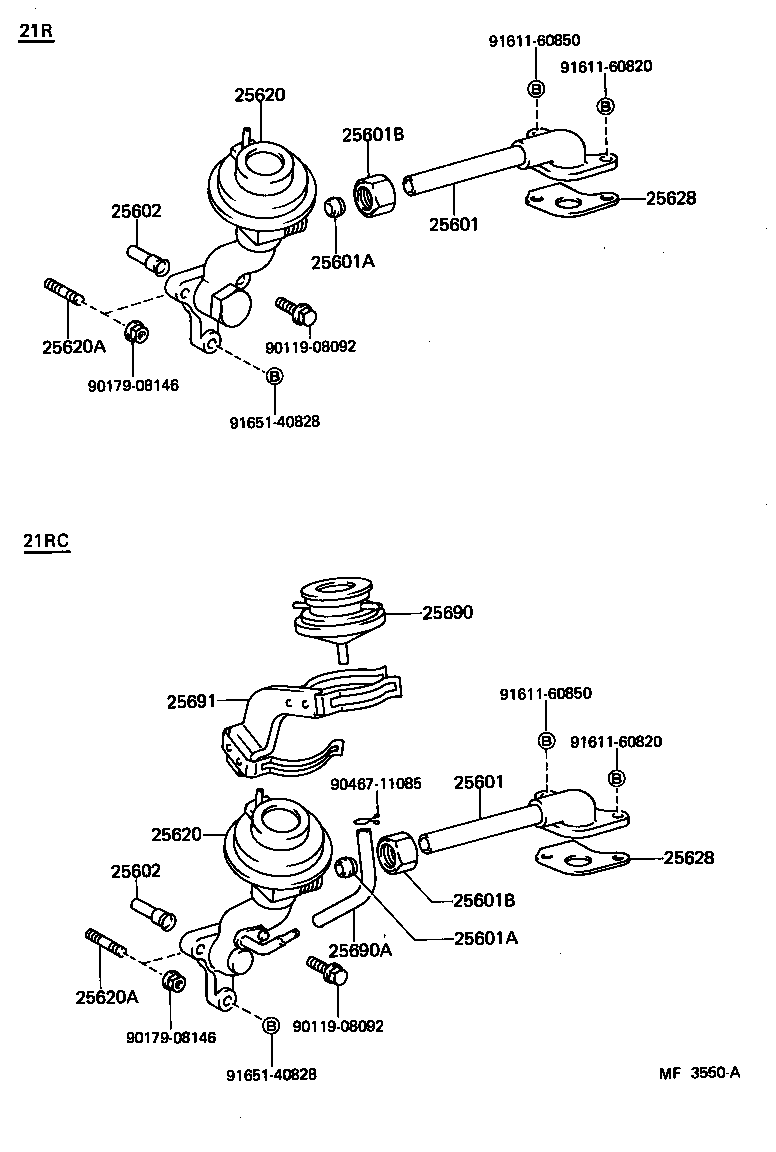

Click highlighted areas on diagram

diagram 25601 25601 25601A 25601A 25601B 25601B 25602 25602 25620 25620 25620A 25620A 25628 25628 25690 25690A 25691 9011908092 9011908092 9017908146 9017908146 9046711085 9161160820 9161160820 9161160850 9161160850 9165140828 9165140828
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

21R..RA61..4FC..SAA

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-38010

21R..RA61..4FC..SAA

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

21R..RA61..4FC..SAA

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-16044

21R..RA61..4FC..SAA

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

21R..RA61..4FC..SAA

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-22081

21R..RA61..4FC..SAA

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-37010

21R..RA61..4FC..SAA

 1
25602 - PIPE SUB-ASSY, EGR, NO.2
25612-37010

21R..RA61..4FC..SAA

 1
25620 - VALVE ASSY, EGR
25620-37080

21R..RA61..4FC..(EUR,SAA)

 1
25620 - VALVE ASSY, EGR
25620-37080

21R..RA61..4FC..(EUR,SAA)

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08027

21R..RA61..4FC..SAA

 1
25620A - BOLT, STUD(FOR EGR VALVE)
90116-08027

21R..RA61..4FC..SAA

 1
25628 - GASKET, EGR INLET
25628-38010

21R..RA61..4FC..SAA

 1
25628 - GASKET, EGR INLET
25628-38010

21R..RA61..4FC..SAA

 1
Common parts
90119-08092
90179-08146
90467-11085
91611-60820
91611-60850
91651-40828
