RA61L-BCMMSV (1983)

Toyota Celica

Production Aug 1983 - Jul 1985
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8401-8408)21R..SAA

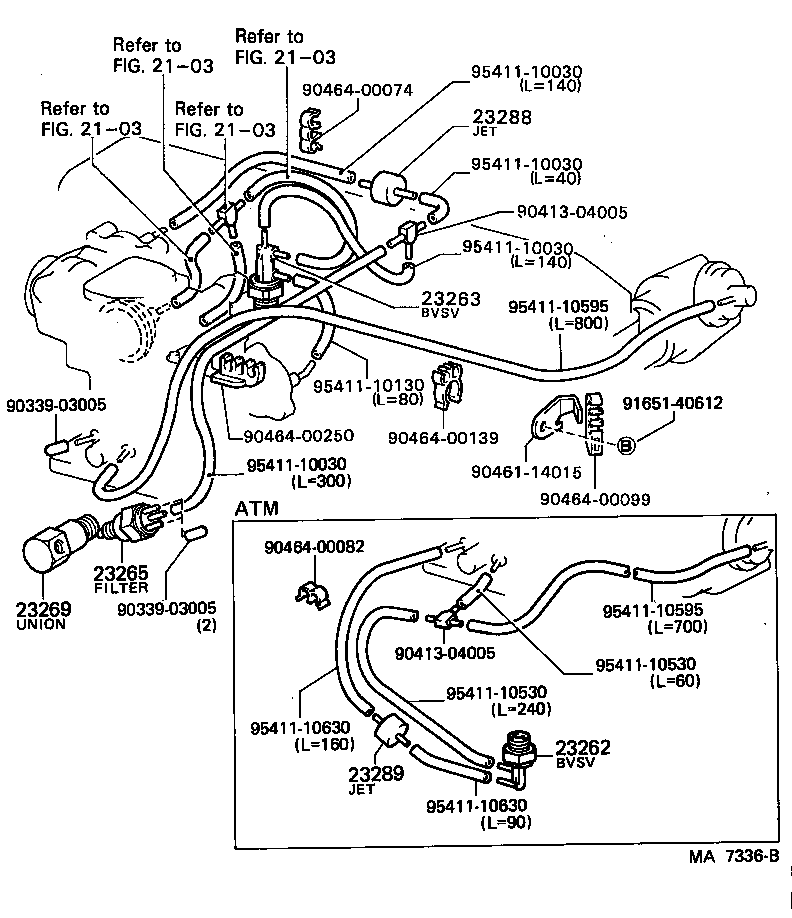

Click highlighted areas on diagram

diagram 2103 2103 2103 2103 23262 23263 23265 23269 23288 23289 9033903005 9033903005 9041304005 9041304005 9046114015 9046400074 9046400082 9046400099 9046400139 9046400250 9165140612 9541110030 9541110030 9541110030 9541110030 9541110130 9541110530 9541110530 9541110595 9541110595 9541110630 9541110630
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

21R#..RA61

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#,22REC..RA60,61,65

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RA60,61

 1
90404-54016

21R..RA61

 1
23288 - JET, NO.1
90925-04005

21R#..RA60,61

 1
23289 - JET, NO.2
90925-04006

21R#..RA61

 1
Common parts
90339-03005
90413-04005
90461-14015
90464-00074
90464-00082
90464-00099
90464-00139
90464-00250
91651-40612
95411-10030
95411-10130
95411-10530
95411-10595
95411-10630
Linked diagrams
2103

(8408-8507)21R..SAA

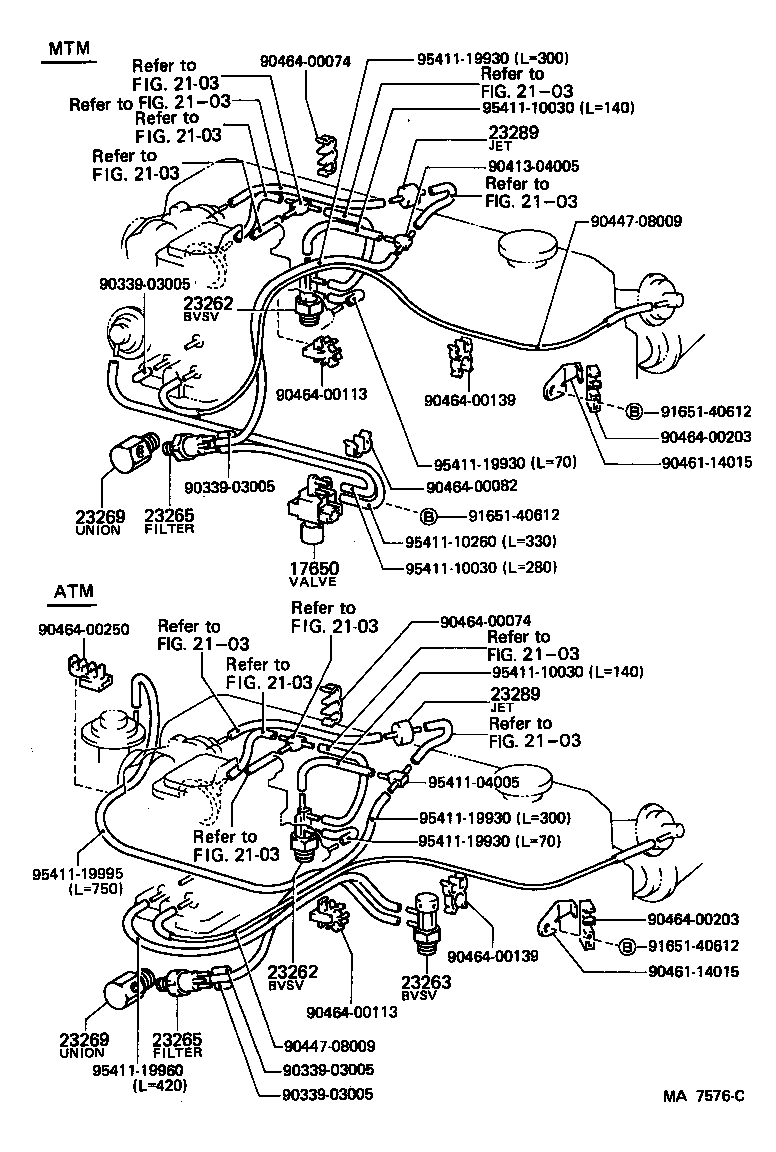

Click highlighted areas on diagram

diagram 17650 2103 2103 2103 2103 2103 2103 2103 2103 2103 2103 2103 2103 23262 23262 23263 23265 23265 23269 23269 23289 23289 9033903005 9033903005 9033903005 9033903005 9041304005 9044708009 9044708009 9046114015 9046114015 9046400074 9046400074 9046400082 9046400113 9046400113 9046400139 9046400139 9046400203 9046400203 9046400250 9165140612 9165140612 9165140612 9541104005 9541110030 9541110030 9541110030 9541110260 9541119930 9541119930 9541119930 9541119930 9541119960 9541119995
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
89570-35200

21R#..RA61..5F..(EUR,SAA)

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

21R#..RA61

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

21R#..RA61

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#,22REC..RA60,61,65

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#,22REC..RA60,61,65

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RA60,61

 1
90404-54016

21R..RA61

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RA60,61

 1
90404-54016

21R..RA61

 1
23289 - JET, NO.2
90925-04006

21R#..RA61

 1
23289 - JET, NO.2
90925-04006

21R#..RA61

 1
Common parts
90339-03005
90413-04005
90447-08009
90461-14015
90464-00074
90464-00082
90464-00113
90464-00139
90464-00203
90464-00250
91651-40612
95411-04005
95411-10030
95411-10260
95411-19930
95411-19960
95411-19995
Linked diagrams
2103
