RA60R-BLPMS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,61,SA63,TA60

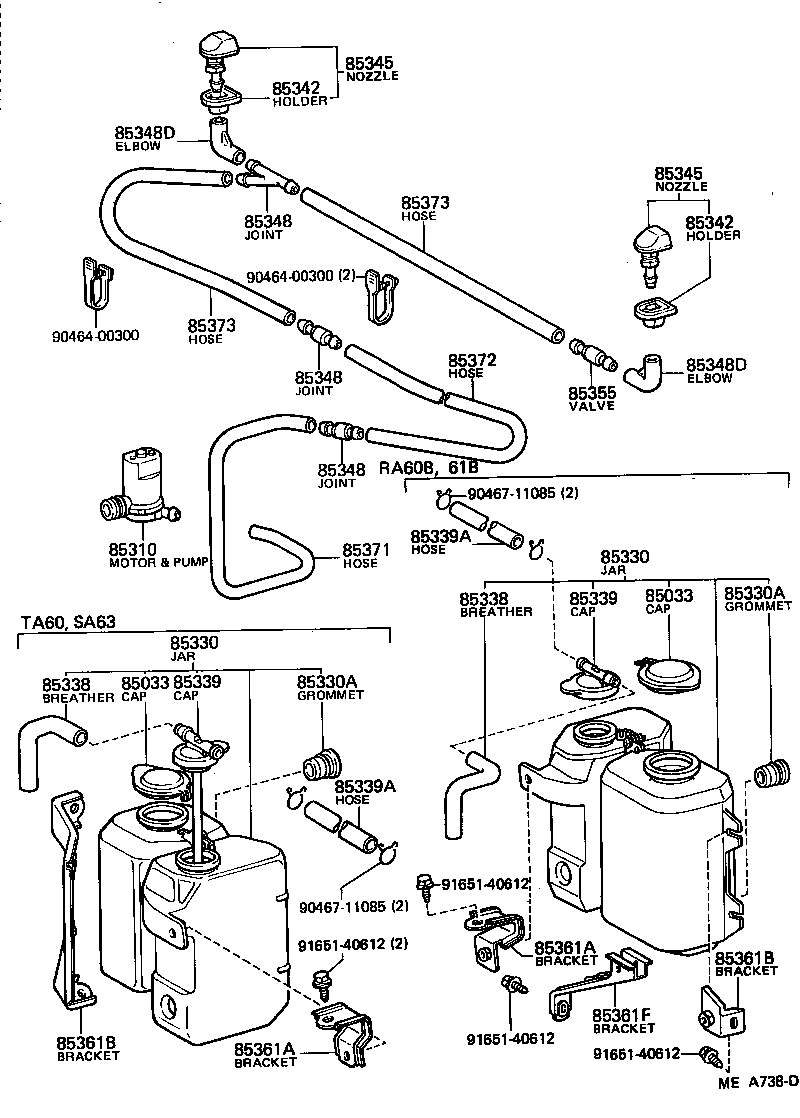

Click highlighted areas on diagram

diagram 85033 85033 85310 85330 85330 85330A 85330A 85338 85338 85339 85339 85339A 85339A 85342 85342 85345 85345 85348 85348 85348 85348D 85348D 85355 85361A 85361A 85361B 85361B 85361F 85371 85372 85373 85373 9046400300 9046400300 9046711085 9046711085 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

RA63;RA60,61,TA60..GEN,ME,SAA

 1
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

RA63;RA60,61,TA60..GEN,ME,SAA

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

MA61,RA6#,TA60

 1
85310-10130

MA61,RA6#,TA60

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-20221

RA60,61..GEN,ME,SAA

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-20221

RA60,61..GEN,ME,SAA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AA63,MA61,RA6#,SA63,TA60

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

AA63,MA61,RA6#,SA63,TA60

 1
85338 - HOSE, BREATHER
85338-14050

RA60,61

 1
85338 - HOSE, BREATHER
85338-14050

RA60,61

 1
85339 - CAP SUB-ASSY, RESERVE TANK
85339-14010

RA60,61,SA63,TA60

 1
85339 - CAP SUB-ASSY, RESERVE TANK
85339-14010

RA60,61,SA63,TA60

 1
85339A - HOSE (FOR RADIATOR RESERVE TANK)
90445-12043

RA60,61

 1
85339A - HOSE (FOR RADIATOR RESERVE TANK)
90445-12043

RA60,61

 1
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85342 - HOLDER, WASHER NOZZLE
85342-14010

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85345 - NOZZLE, WINDSHIELD WASHER
85035-19015

AA63,MA61,RA6#,SA63,TA60

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AA63,RA60,61,63,SA63,TA60

2-WAY

 2
85355-14010

AA63,MA61,RA6#,SA63,TA60

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AA63,RA60,61,63,SA63,TA60

2-WAY

 2
85355-14010

AA63,MA61,RA6#,SA63,TA60

3-WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

AA63,RA60,61,63,SA63,TA60

2-WAY

 2
85355-14010

AA63,MA61,RA6#,SA63,TA60

3-WAY

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-20070

AA63,MA61,RA6#,SA63,TA60

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-14080

AA63,MA61,RA6#,SA63,TA60

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-14340

RA60,61

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-14340

RA60,61

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-14350

RA60,61

 1
85361B - BRACKET, WINDSHIELD WASHER, NO.2
85361-14350

RA60,61

 1
85361F - BRACKET, WINDSHIELD WASHER, NO.3
85361-14400

RA60,61

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

RA60,61,SA63,TA60

L=450

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

RA60,61,SA63,TA60

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#,TA60

*H,L=550

 1
90099-33299

RA60,61,63,SA63,TA60

L=450

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

RA6#,TA60

*H,L=550

 1
90099-33299

RA60,61,63,SA63,TA60

L=450

 1
Common parts
90464-00300
90467-11085
91651-40612
