RA60R-BLPMS (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8308)RA6#,TA60

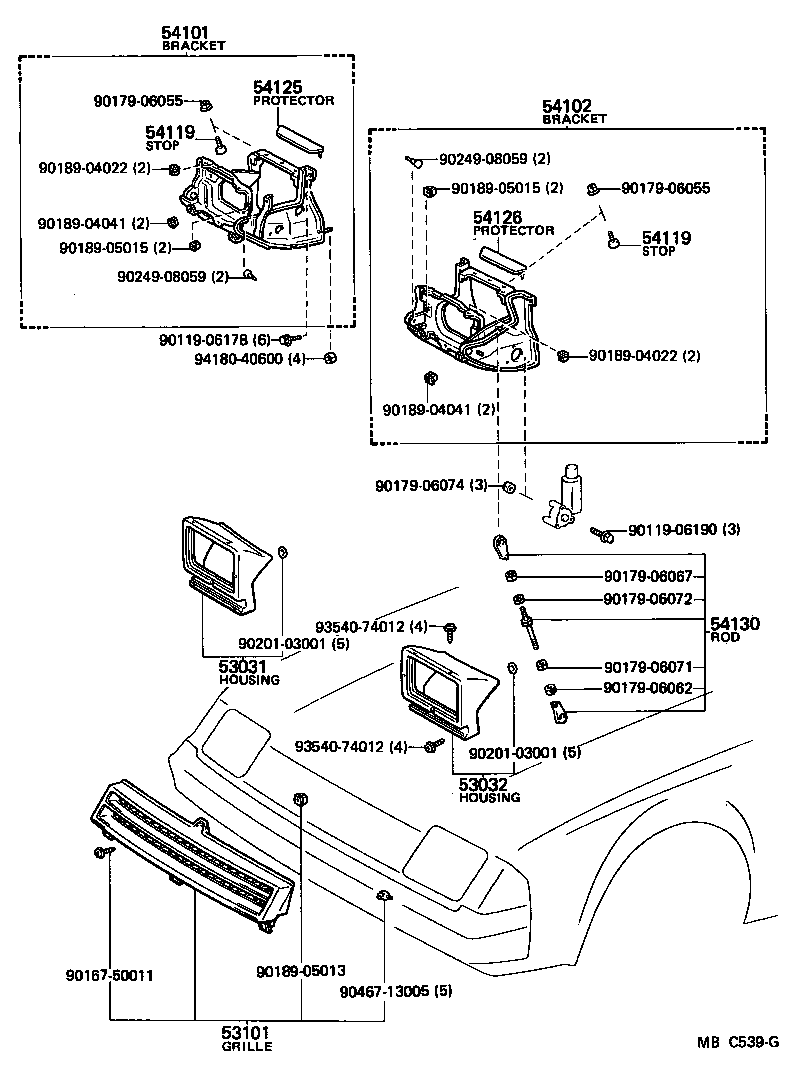

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53130-14040 |
RA6#,TA60 |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53140-14040 |
RA6#,TA60 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53111-19435 |
RA6#,TA60 |
1 | ||
| 54101 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH | ||||
| 54105-14010 |
RA6#,TA60 |
1 | ||
| 54102 - BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH | ||||
| 54106-14010 |
RA6#,TA60 |
1 | ||
| 54125 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 RH | ||||
| 54125-14020 |
RA6#,TA60 |
1 | ||
| 54126 - PROTECTOR, RETRACTABLE HEADLAMP, NO.1 LH | ||||
| 54125-14020 |
RA6#,TA60 |
1 | ||
| 54130 - ROD ASSY, RETRACTABLE HEADLAMP | ||||
| 54130-14010 |
RA6#,TA60 |
2 | ||
| Common parts | ||||
| 90119-06178 | ||||
| 90119-06190 | ||||
| 90167-50011 | ||||
| 90179-06055 | ||||
| 90179-06062 | ||||
| 90179-06067 | ||||
| 90179-06071 | ||||
| 90179-06072 | ||||
| 90179-06074 | ||||
| 90189-04022 | ||||
| 90189-04041 | ||||
| 90189-05013 | ||||
| 90189-05015 | ||||
| 90201-03001 | ||||
| 90249-08059 | ||||
| 90467-13005 | ||||
| 93540-74012 | ||||
| 94180-40600 | ||||
