RA60R-BLPMS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,61,65,SA63..4FC

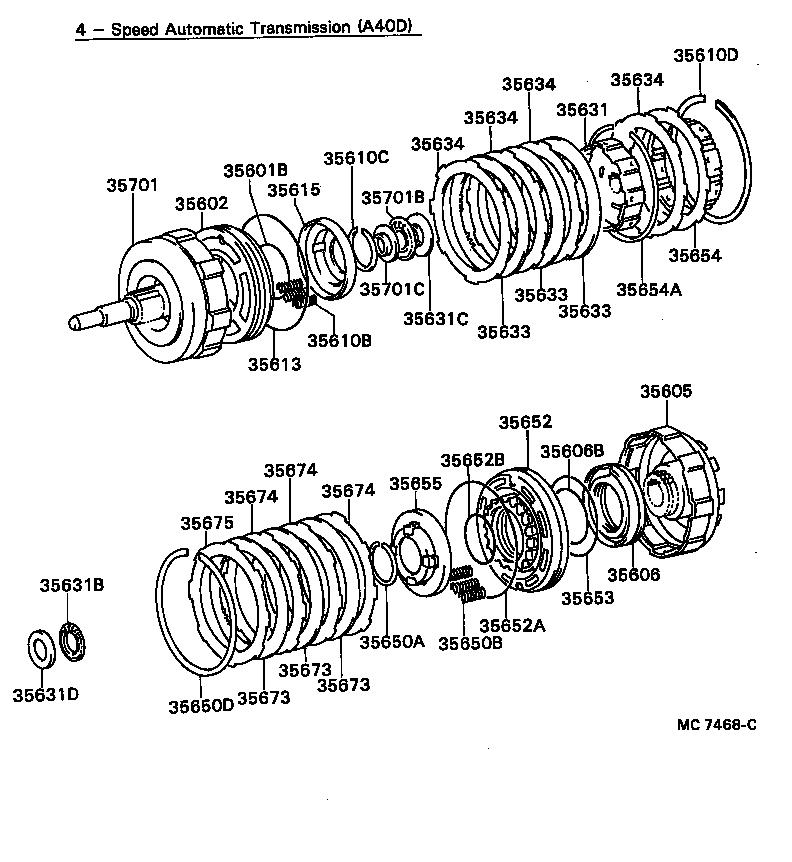

Click highlighted areas on diagram

diagram 35601B 35602 35605 35606 35606B 35610B 35610C 35610D 35613 35615 35631 35631B 35631C 35631D 35633 35633 35633 35634 35634 35634 35634 35650A 35650B 35650D 35652 35652A 35652B 35653 35654 35654A 35655 35673 35673 35673 35674 35674 35674 35675 35701 35701B 35701C
Part # Description Qty Price
35601B - RING, O (FOR FRONT CLUTCH DRUM)
90301-57188

MA61,RA60,61,65,SA63,TA60..ATM

 1
35602 - PISTON SUB-ASSY, FRONT CLUTCH
35602-12031

RA60,61,SA63,TA60..ATM

 2
35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35605-22010

RA60,61..4FC

 1
35606 - PISTON SUB-ASSY, REAR CLUTCH
35606-22010

RA60,61,65,SA63,TA60..ATM

 1
35606B - RING (FOR REAR CLUTCH PISTON INNER)
90301-57188

MA61,RA60,61,65,SA63,TA60..ATM

 1
35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
90501-10671

RA60,61,SA63,TA60..ATM

 18
35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING
90520-39261

MA61,RA60,61,65,SA63,TA60..ATM

 1
35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
90521-99139

MA61,RA60,61,65,SA63,TA60..ATM

 1
35613 - RING, CLUTCH PISTON OIL SEAL, OUTER
90301-99016

MA61,RA60,61,65,SA63,TA60..ATM

 1
35615 - SEAT, CLUTCH PISTON RETURN SPRING
35615-30020

MA61,RA60,61,65,SA63,TA60..ATM

 1
35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631-22010

RA60,61,TA60..ATM

 1
35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB)
90374-28014

MA61,RA60,61,65,SA63,TA60..ATM

 1
35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35789-22050

MA61,RA60,61,65,SA63,TA60..ATM

 1
35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35789-22020

MA61,RA60,61,65,SA63,TA60..ATM

 1
35633 - DISC, CLUTCH (FOR FRONT CLUTCH)
35677-22020

RA60,61,TA60..ATM

NSK-WARNER

 3
35633 - DISC, CLUTCH (FOR FRONT CLUTCH)
35677-22020

RA60,61,TA60..ATM

NSK-WARNER

 3
35633 - DISC, CLUTCH (FOR FRONT CLUTCH)
35677-22020

RA60,61,TA60..ATM

NSK-WARNER

 3
35634 - PLATE, FRONT CLUTCH
35634-22040

RA60,61,TA60..ATM

T=1.8,NSK-WARNER,T=1.8

 4
35634 - PLATE, FRONT CLUTCH
35634-22040

RA60,61,TA60..ATM

T=1.8,NSK-WARNER,T=1.8

 4
35634 - PLATE, FRONT CLUTCH
35634-22040

RA60,61,TA60..ATM

T=1.8,NSK-WARNER,T=1.8

 4
35634 - PLATE, FRONT CLUTCH
35634-22040

RA60,61,TA60..ATM

T=1.8,NSK-WARNER,T=1.8

 4
35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
90520-39261

MA61,RA60,61,65,SA63,TA60..ATM

 1
35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
90501-10671

RA60,61,65,SA63,TA60..ATM

 18
35650D - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)
90521-99139

MA61,RA60,61,65,SA63,TA60..ATM

 1
35652 - PISTON, REAR CLUTCH, NO.2
35607-20021

RA60,61,65,SA63..4FC

 1
35652A - RING (FOR REAR CLUTCH OUTER)
90301-99016

MA61,RA60,61,65,SA63,TA60..ATM

 1
35652B - RING (FOR REAR CLUTCH PISTON INNER)
90301-57188

MA61,RA60,61,65,SA63,TA60..ATM

 1
35653 - RING, REAR CLUTCH OIL SEAL, OUTER
90301-84184

MA61,RA60,61,65,SA63,TA60..ATM

 1
35654 - HUB, REAR CLUTCH
35654-22010

RA60,61,SA63,TA60..ATM

 1
35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB)
90521-99146

RA60,61,65,SA63,TA60..ATM

 1
35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING
35615-30020

MA61,RA60,61,65,SA63,TA60..ATM

 1
35673 - DISC, REAR CLUTCH
35677-22020

RA60,61..4FC

 3
35673 - DISC, REAR CLUTCH
35677-22020

RA60,61..4FC

 3
35673 - DISC, REAR CLUTCH
35677-22020

RA60,61..4FC

 3
35674 - PLATE, REAR CLUTCH
35634-30070

MA61,RA60,61,65,SA63..4FC

T=2.0

 3
35634-22040

RA60,61,65,SA63..4FC

T=1.8

 3
35674 - PLATE, REAR CLUTCH
35634-30070

MA61,RA60,61,65,SA63..4FC

T=2.0

 3
35634-22040

RA60,61,65,SA63..4FC

T=1.8

 3
35674 - PLATE, REAR CLUTCH
35634-30070

MA61,RA60,61,65,SA63..4FC

T=2.0

 3
35634-22040

RA60,61,65,SA63..4FC

T=1.8

 3
35675 - FLANGE, REAR CLUTCH
35675-30030

MA61,RA60,61,65,SA63..4FC

T=3.6,T=3.4

 1
35675-30020

RA60,61,65,SA63..4FC

T=3.8,T=3.6

 1
35701 - SHAFT SUB-ASSY, INPUT
35701-22021

RA60,61..4FC

 1
35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
90374-23012

MA61,RA60,61,65,SA63,TA60..ATM

 1
35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR)
35789-22010

MA61,RA60,61,65,SA63,TA60..ATM

 1
