RA60R-BLMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)RA6#,TA60

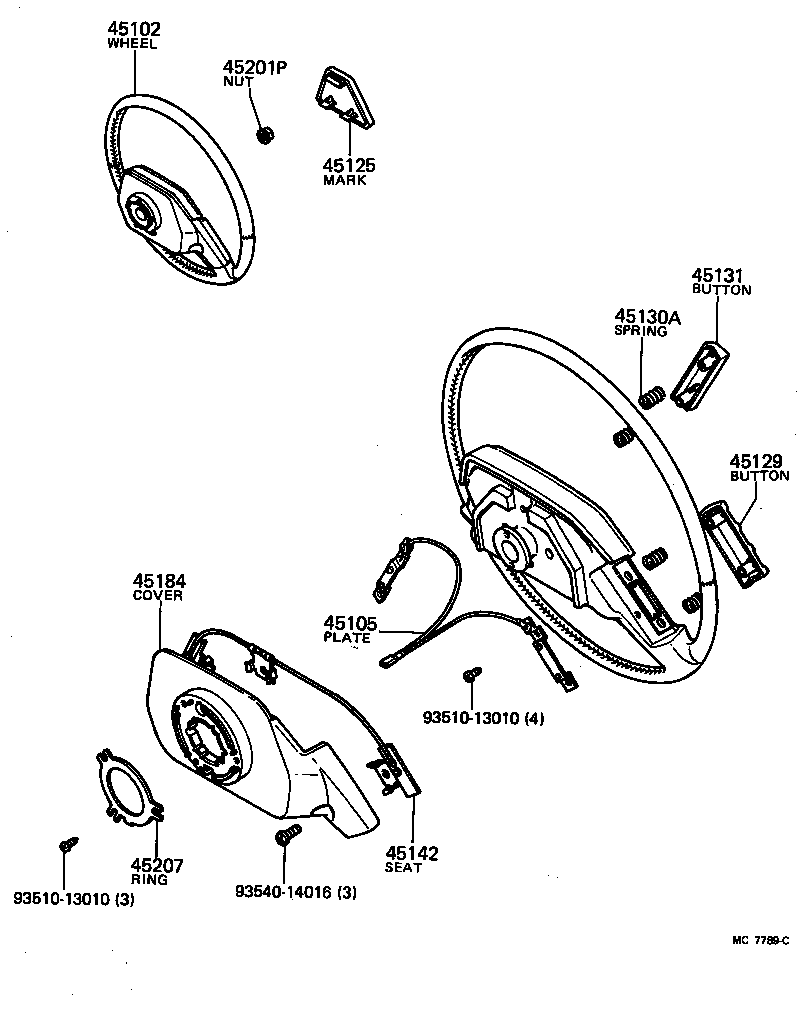

Click highlighted areas on diagram

diagram 45102 45105 45125 45129 45130A 45131 45142 45184 45201P 45207 9351013010 9351013010 9354014016
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-1428004

RA6#,TA60

BLUE,BLUE,TRIM8#

 1
45100-1428001

RA6#,TA60

BLACK,BLACK,TRIM2#

 1
45100-1428006

RA6#,TA60

DARK BROWN,BROWN,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-14040

RA6#,TA60

 1
45125 - MARK, STEERING WHEEL PAD
45125-14290

RA6#,TA60..GT,ST,XT

 1
45129 - BUTTON, HORN, NO.2
45129-1403001

RA6#,TA60

BLACK,BLACK,TRIM2#

 1
45129-1403006

RA6#,TA60

DARK BROWN,BROWN,TRIM4#

 1
45129-1403004

RA6#,TA60

BLUE,BLUE,TRIM8#

 1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-09023

RA6#,TA60

 4
45131 - BUTTON, HORN, NO.1
45131-1409001

RA6#,TA60

BLACK,BLACK,TRIM2#

 1
45131-1409004

RA6#,TA60

BLUE,BLUE,TRIM8#

 1
45131-1409006

RA6#,TA60

DARK BROWN,BROWN,TRIM4#

 1
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45109-14010

RA6#,TA60

 2
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-1404006

RA6#,TA60

DARK BROWN,BROWN,TRIM4#

 1
45184-1404004

RA6#,TA60

BLUE,BLUE,TRIM8#

 1
45184-1404001

RA6#,TA60

BLACK,BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AA63,MA61,RA6#,SA63,TA60

 1
45207 - RING, HORN CONTACT
45176-14030

RA6#,TA60

 1
45176-14050

RA6#,TA60

 1
Common parts
93510-13010
93540-14016
