RA60R-BCMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21R#,22REC

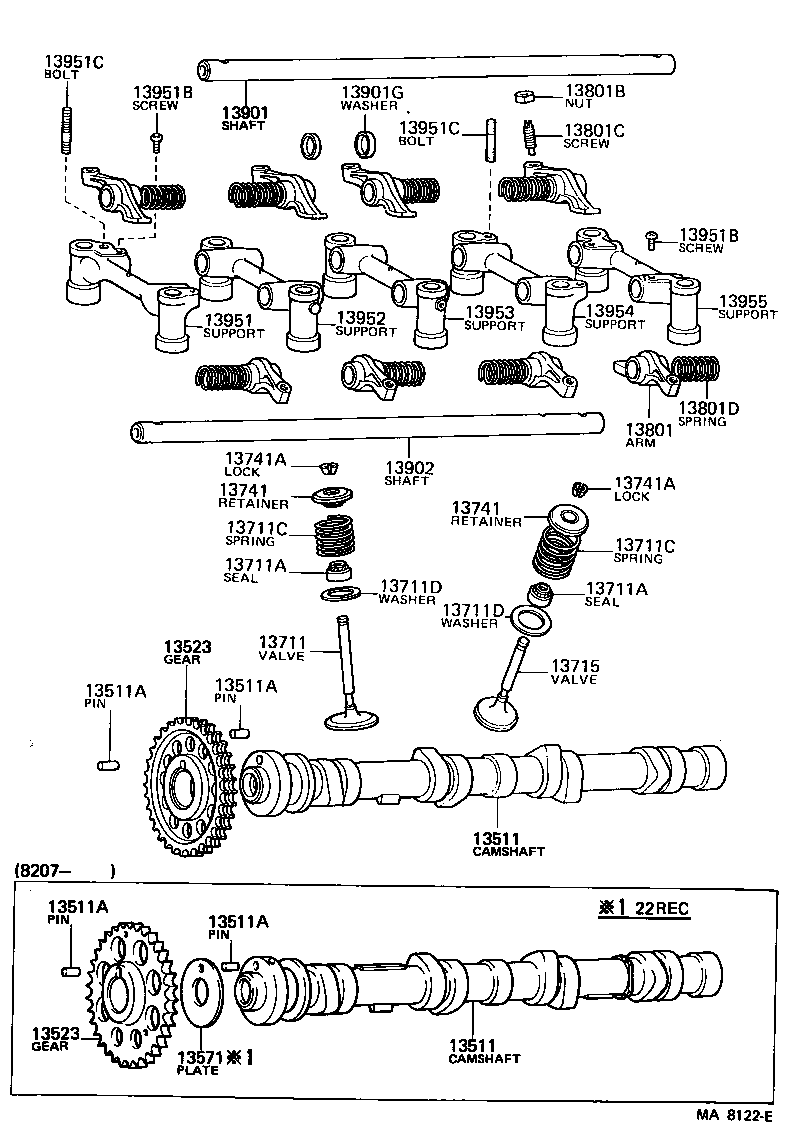

Click highlighted areas on diagram

diagram 13511 13511 13511A 13511A 13511A 13511A 13523 13523 13571 13711 13711A 13711A 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801B 13801C 13801D 13901 13901G 13902 13951 13951B 13951B 13951C 13951C 13952 13953 13954 13955
Part # Description Qty Price
13511 - CAMSHAFT
13511-35010

21R#..RA60,61..EUR,GEN,ME,SAA

 1
13511 - CAMSHAFT
13511-35010

21R#..RA60,61..EUR,GEN,ME,SAA

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06001

21R#,22REC..RA60,61,65

L=14,OD=6,L=14,OD=6

 2
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06001

21R#,22REC..RA60,61,65

L=14,OD=6,L=14,OD=6

 2
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06001

21R#,22REC..RA60,61,65

L=14,OD=6,L=14,OD=6

 2
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06001

21R#,22REC..RA60,61,65

L=14,OD=6,L=14,OD=6

 2
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-38011

21R#..RA60,61

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-38011

21R#..RA60,61

 1
13711 - VALVE, INTAKE
13711-37010

21R#..RA60,61..EUR,GEN,ME,SAA

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023

21R#..RA60,61

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02023

21R#..RA60,61

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-47001

21R#..RA60,61

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-47001

21R#..RA60,61

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-20579

21R#,22REC..RA60,61,65

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-20579

21R#,22REC..RA60,61,65

 8
13715 - VALVE, EXHAUST
13715-37020

21R#..RA60,61..EUR,GEN,ME,SAA

 4
13741 - RETAINER, VALVE SPRING
13741-38010

21R#,22REC..RA60,61,65

 8
13741 - RETAINER, VALVE SPRING
13741-38010

21R#,22REC..RA60,61,65

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,22REC..RA60,61,65

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

21R#,22REC..RA60,61,65

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-38010

21R#..RA60,61

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90179-08049

21R#,22REC..RA60,61,65

 8
13801C - SCREW, VALVE ADJUSTING
90913-05019

21R#,22REC..RA60,61,65

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-12008

21R#..RA60,61

 8
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13911-38011

21R#,22REC..RA60,61,65

 1
13901G - WASHER, ROCKER SHAFT
90560-16448

21R#..RA60,61

 2
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13912-38011

21R#,22REC..RA60,61,65

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-38012

21R#,22REC..RA60,61,65

 1
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
93210-16008

21R#,22REC..RA60,61,65

 3
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
93210-16008

21R#,22REC..RA60,61,65

 3
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08089

21R#..RA60,61

 4
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08089

21R#..RA60,61

 4
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-38010

21R#,22REC..RA60,61,65

 1
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-38010

21R#,22REC..RA60,61,65

 1
13954 - SUPPORT, VALVE ROCKER, NO.4
13954-38011

21R#,22REC..RA60,61,65

 1
13955 - SUPPORT, VALVE ROCKER, NO.5
13955-38010

21R#,22REC..RA60,61,65

 1
