RA60R-BCMSCQ (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

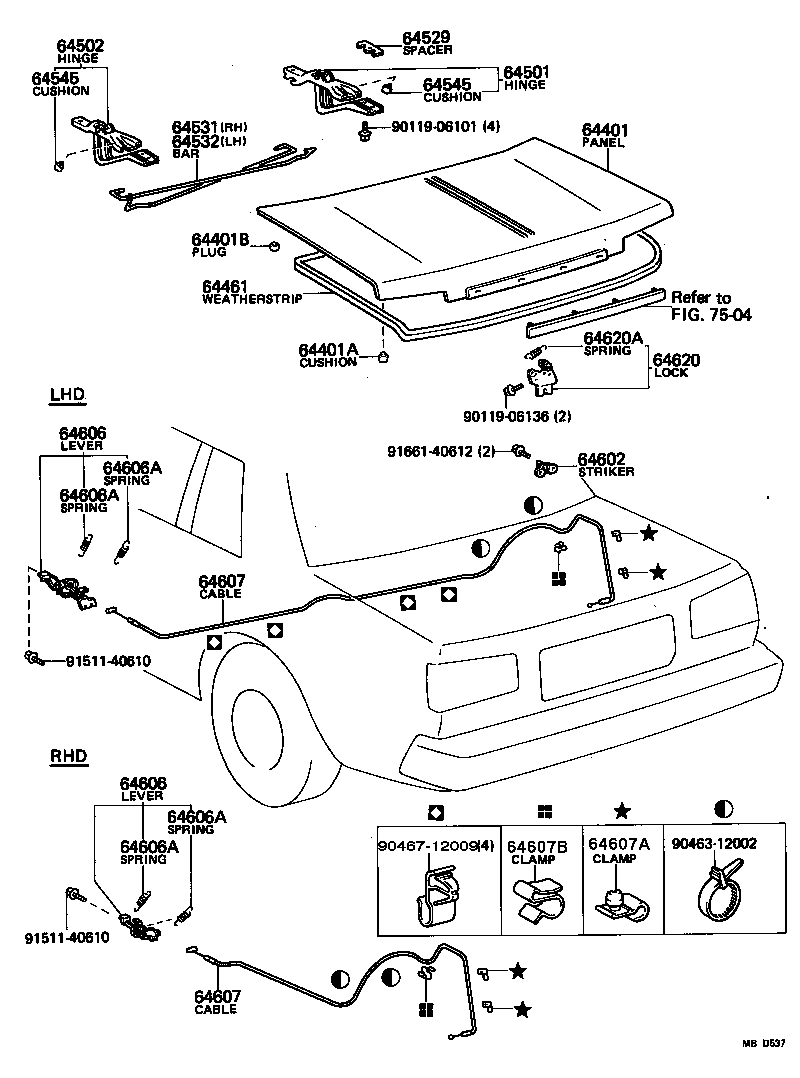

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64529 64531 64532 64545 64545 64602 64606 64606 64606A 64606A 64606A 64606A 64607 64607 64607A 64607B 64620 64620A 7504 9011906101 9011906136 9046312002 9046712009 9151140610 9151140610 9166140612
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-14370

AA63,RA6#,SA63,TA60..CP

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09021

AA63,RA6#,SA63,TA60..CP

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06076

AA63,RA6#,SA63,TA60..CP

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-14190

AA63,RA6#,SA63,TA60..CP

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-14110

AA63,RA6#,SA63,TA60..CP

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-14100

AA63,RA6#,SA63,TA60..CP

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-22010

AA63,RA6#,SA63,TA60..CP

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-14140

AA63,RA6#,SA63,TA60..CP

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-14140

AA63,RA6#,SA63,TA60..CP

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

AA63,RA6#,SA63,TA60..CP

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-07007

AA63,RA6#,SA63,TA60..CP

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-95800

AA63,RA6#,SA63,TA60..CP

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14030

AA63,RA6#,SA63..CP..RHD..(ARL,GEN)

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-14030

AA63,RA6#,SA63..CP..RHD..(ARL,GEN)

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RA60,63,TA60..CP..(ARL,GEN)

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RA60,63,TA60..CP..(ARL,GEN)

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RA60,63,TA60..CP..(ARL,GEN)

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RA60,63,TA60..CP..(ARL,GEN)

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-14090

AA63,RA6#,SA63..CP..RHD..(ARL,GEN)

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-14090

AA63,RA6#,SA63..CP..RHD..(ARL,GEN)

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
69749-12010

RA60,63,TA60..CP..(ARL,GEN)

 2
64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90463-05005

RA60,63,TA60..CP..(ARL,GEN)

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-22020

RA60,63,TA60..CP..(ARL,GEN)

W/CANCEL

 1
64610-14050

AA63,RA6#,SA63,TA60..CP

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-09001

AA63,RA6#,SA63,TA60..CP..(ARL,GEN,ME,SAA)

W/CANCEL

 1
90506-10028

AA63,RA6#,SA63,TA60..CP

 1
Common parts
90119-06101
90119-06136
90463-12002
90467-12009
91511-40610
91661-40612
Linked diagrams
7504
