RA60R-BCMMS (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

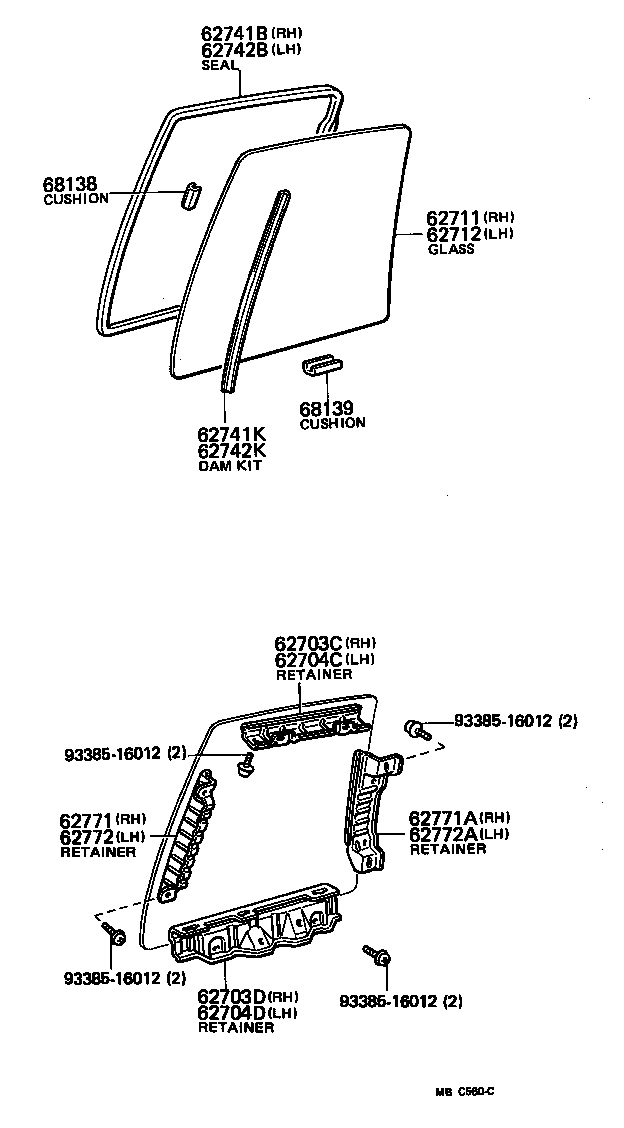

Click highlighted areas on diagram

diagram 62703C 62703D 62704C 62704D 62711 62712 62741B 62741K 62742B 62742K 62771 62771A 62772 62772A 68138 68139 9338516012 9338516012 9338516012 9338516012
Part # Description Qty Price
62703C - RETAINER, QUARTER WINDOW GLASS, UPPER, RH
62763-14020

AA63,RA6#,SA63,TA60..CP

 1
62703D - RETAINER, QUARTER WINDOW GLASS, LOWER, RH
62765-14030

AA63,MA61,RA6#,SA63,TA60

 2
62704C - RETAINER, QUARTER WINDOW GLASS, UPPER, LH
62763-14020

AA63,RA6#,SA63,TA60..CP

 1
62704D - RETAINER, QUARTER WINDOW GLASS, LOWER, LH
62766-14030

AA63,MA61,RA6#,SA63,TA60

 2
62711 - GLASS, QUARTER WINDOW, RH
62711-14110

AA63,RA6#,SA63,TA60..CP

T=3.5,*TT

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-14110

AA63,RA6#,SA63,TA60..CP

T=3.5,*TT

 1
62741B - SEAL, QUARTER WINDOW GLASS, RH
68177-14010

AA63,RA6#,SA63,TA60..CP

 1
62741K - DAM KIT, QUARTER WINDOW, RH
04681-20010

AA63,MA61,RA6#,SA63,TA60

 6
62742B - SEAL, QUARTER WINDOW GLASS, LH
68177-14010

AA63,RA6#,SA63,TA60..CP

 1
62742K - DAM KIT, QUARTER WINDOW, LH
04681-20010

AA63,MA61,RA6#,SA63,TA60

 1
62771 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH
62761-14030

AA63,MA61,RA6#,SA63,TA60

 1
62771A - RETAINER, QUARTER WINDOW GLASS, REAR RH
62767-14020

AA63,RA6#,SA63,TA60..CP

 1
62772 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH
62761-14030

AA63,MA61,RA6#,SA63,TA60

 1
62772A - RETAINER, QUARTER WINDOW GLASS, REAR LH
62768-14020

AA63,RA6#,SA63,TA60..CP

 1
68138 - CUSHION, QUARTER WINDOW, NO.2 UPPER
62785-14010

AA63,MA61,RA6#,SA63,TA60

 8
68139 - CUSHION, QUARTER WINDOW, NO.2 LOWER
62786-14010

AA63,MA61,RA6#,SA63,TA60

 2
Common parts
93385-16012
