RA60R-BCMMS (1981)

Toyota Celica

Production Aug 1981 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108- )

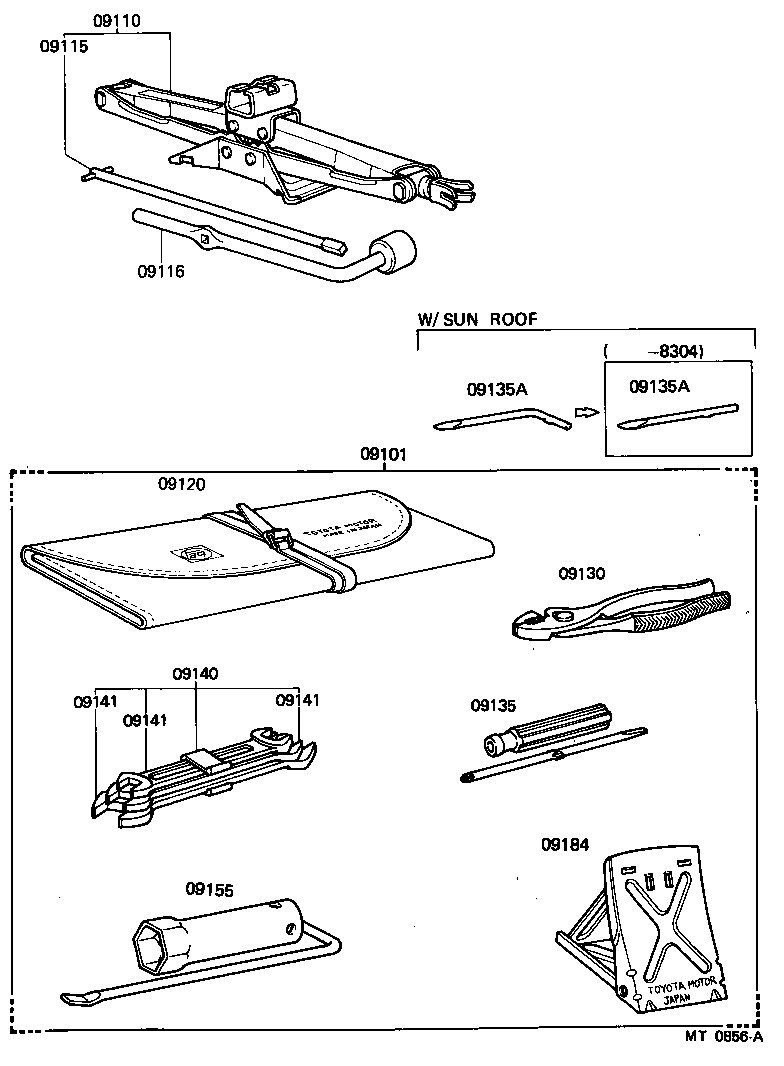

Click highlighted areas on diagram

diagram 09101 09110 09115 09116 09120 09130 09135 09135A 09135A 09140 09141 09141 09141 09155 09184
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09102-14050

RA60,61

 1
09110 - JACK ASSY
09118-14010

AA63,MA61,RA6#,SA63,TA60

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16010

MA61,RA6#,TA60

 1
09116 - LEVER, JACK HANDLE
09116-16010

AA63,MA61,RA6#,SA63,TA60

 1
09120 - BAG, TOOL
09120-12011

AA63,MA61,RA6#,SA63,TA60

 1
09130 - PLIERS
09130-00010

MA61,RA6#,TA60

 1
09135 - DRIVER, SCREW
99915-10700

AA63,MA61,RA6#,SA63,TA60

 1
09135A - BIT, SCREW DRIVER
09135-00011

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
09135A - BIT, SCREW DRIVER
09135-00011

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
09140 - SPANNER SET
09140-12011

AA63,MA61,RA6#,SA63,TA60

 1
09141 - SPANNER
99914-10810

AA63,MA61,RA6#,SA63,TA60

8 X 10,8X10

 1
99914-11012

AA63,MA61,RA6#,SA63,TA60

10 X 12,10X12

 1
99914-11417

AA63,MA61,RA6#,SA63,TA60

14 X 17,14X17

 1
09141 - SPANNER
99914-10810

AA63,MA61,RA6#,SA63,TA60

8 X 10,8X10

 1
99914-11012

AA63,MA61,RA6#,SA63,TA60

10 X 12,10X12

 1
99914-11417

AA63,MA61,RA6#,SA63,TA60

14 X 17,14X17

 1
09141 - SPANNER
99914-10810

AA63,MA61,RA6#,SA63,TA60

8 X 10,8X10

 1
99914-11012

AA63,MA61,RA6#,SA63,TA60

10 X 12,10X12

 1
99914-11417

AA63,MA61,RA6#,SA63,TA60

14 X 17,14X17

 1
09155 - WRENCH, SPARK PLUG
09155-37010

RA60,61

 1
09184 - STOPPER, WHEEL
09184-00010

AA63,MA61,RA6#,SA63,TA60

 1
