RA60L-BLMMSV (1981)
Toyota Celica
(8108- )

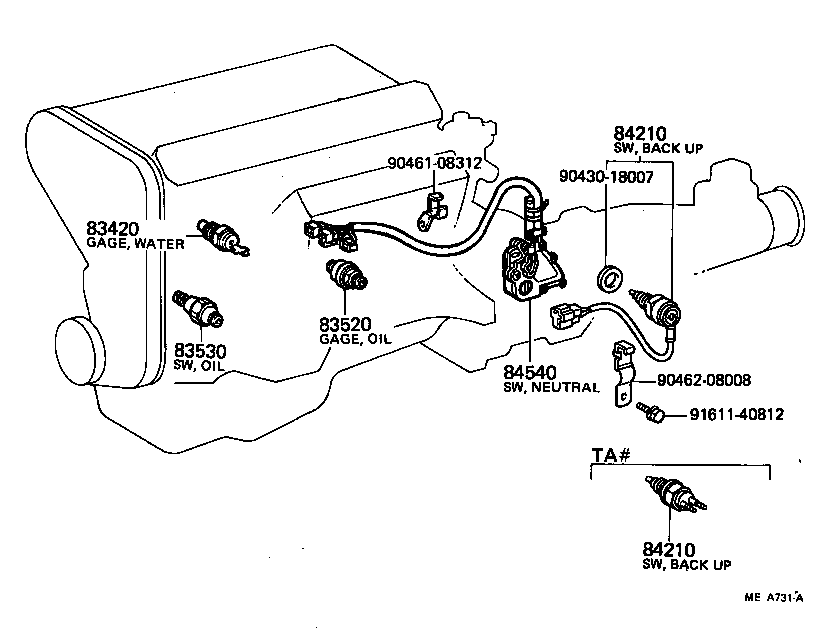

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AA63,MA61,RA6#,SA63,TA60 YAZAKI |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14021 |
RA61..RHD..XT;MA61,RA60,63..GEN,ME,SAA |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
MA61,RA6#,SA63..5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
MA61,RA6#,SA63..5F |
1 | ||
| Common parts | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-40812 | ||||

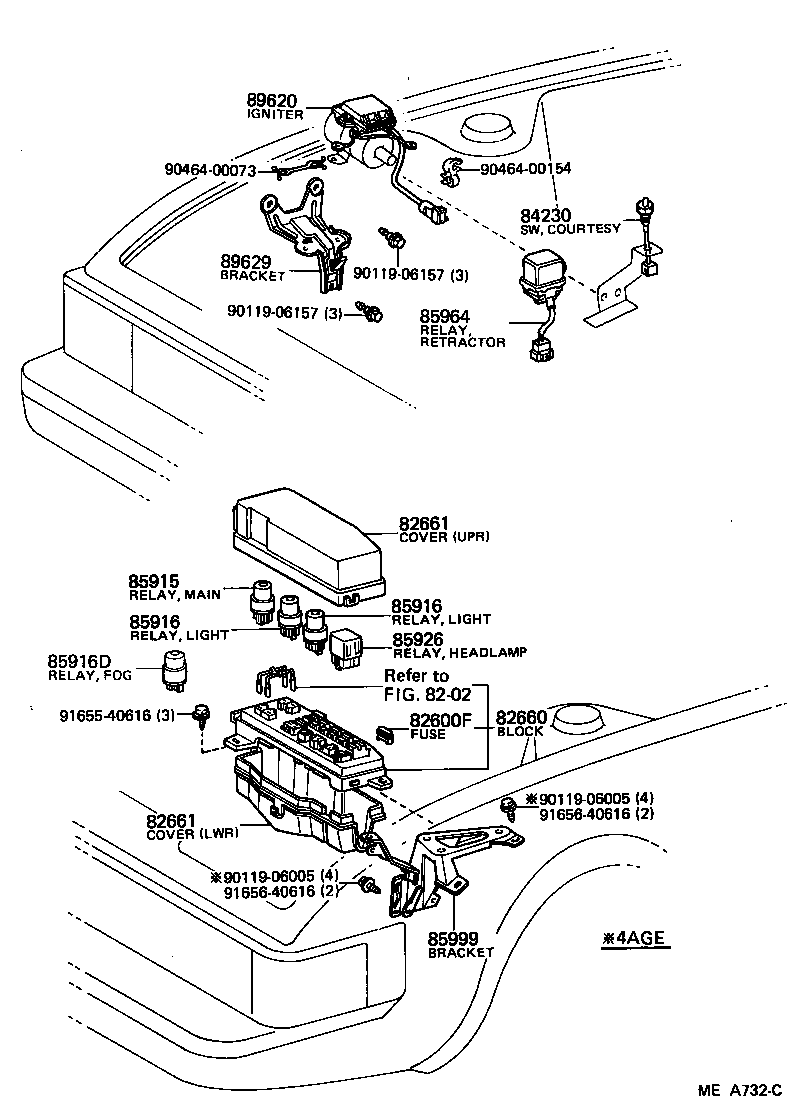

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AA63,MA61,RA60,61,63,SA63,TA60 10A,10A |
1 | ||
| 90982-09001 |
AA63,MA61,RA60,61,63,SA63,TA60 5A,5A |
1 | ||
| 90982-09003 |
AA63,MA61,RA6#,SA63,TA60 15A,15A |
1 | ||
| 90982-09005 |
AA63,MA61,RA6#,SA63,TA60 7.5A,7.5A |
1 | ||
| 90982-09004 |
AA63,MA61,RA6#,SA63,TA60 20A,YELLOW,20A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-14090 |
AA63,RA6#,TA60 SUMITOMO |
1 | ||
| 82660-14110 |
AA63,RA6#,TA60 YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22030 |
MA61,RA6#,TA60 LWR,SUMITOMO |
1 | ||
| 82661-14020 |
MA61,RA6#,TA60 UPR,SUMITOMO |
1 | ||
| 82661-14030 |
MA61,RA6#,TA60 UPR,YAZAKI |
1 | ||
| 82661-22060 |
MA61,RA6#,TA60 LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22030 |
MA61,RA6#,TA60 LWR,SUMITOMO |
1 | ||
| 82661-14020 |
MA61,RA6#,TA60 UPR,SUMITOMO |
1 | ||
| 82661-14030 |
MA61,RA6#,TA60 UPR,YAZAKI |
1 | ||
| 82661-22060 |
MA61,RA6#,TA60 LWR,YAZAKI |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
AA63,MA61,RA6#,SA63,TA60 DENSO |
1 | ||
| 90987-02002 |
AA63,MA61,RA6#,SA63,TA60 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
MA61,RA6#,TA60 |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-14010 |
AA63,RA6#,SA63,TA60 |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-14100 |
RA60,61 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06157 | ||||
| 90464-00073 | ||||
| 90464-00154 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

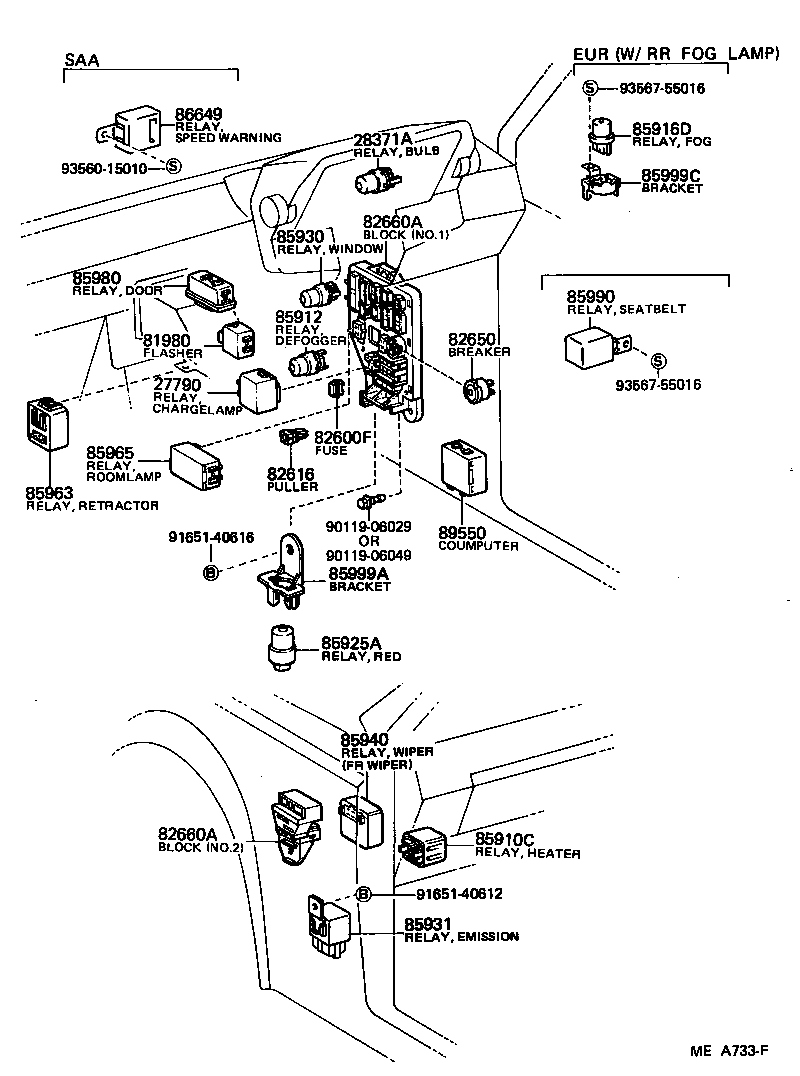

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AA63,MA61,RA60,61,63,SA63,TA60 10A,10A |
1 | ||
| 90982-09001 |
AA63,MA61,RA60,61,63,SA63,TA60 5A,5A |
1 | ||
| 90982-09003 |
AA63,MA61,RA6#,SA63,TA60 15A,15A |
1 | ||
| 90982-09005 |
AA63,MA61,RA6#,SA63,TA60 7.5A,7.5A |
1 | ||
| 90982-09004 |
AA63,MA61,RA6#,SA63,TA60 20A,YELLOW,20A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
RA6#,TA60 |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22010 |
AA63,MA61,RA6#,SA63,TA60 NO.2 (ASSISTANT SIDE) |
1 | ||
| 82660-14010 |
MA61,RA6#,TA60..LHD NO.1 (DRIVER SIDE) |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22010 |
AA63,MA61,RA6#,SA63,TA60 NO.2 (ASSISTANT SIDE) |
1 | ||
| 82660-14010 |
MA61,RA6#,TA60..LHD NO.1 (DRIVER SIDE) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AA63,MA61,RA6#,SA63,TA60 MARUKO |
1 | ||
| 90987-02004 |
AA63,MA61,RA6#,SA63,TA60 DENSO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14040 |
MA61,RA6#,TA60..LB RR WIPER |
1 | ||
| 85940-12020 |
RA61,63;RA60..GT,XT;RA60,TA60..ST..(ARL,EUR) FR WIPER |
1 | ||
| 85963 - RELAY, LIGHT RETRACTOR CONTROL | ||||
| 85963-14010 |
MA61,RA6#,TA60 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
AA63,MA61,RA6#,SA63..GT,SPR,XT |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-12030 |
MA61,RA60..ME,SAA |
1 | ||
| Common parts | ||||
| 90119-06029 | ||||
| 90119-06049 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93560-15010 | ||||
| 93567-55016 | ||||

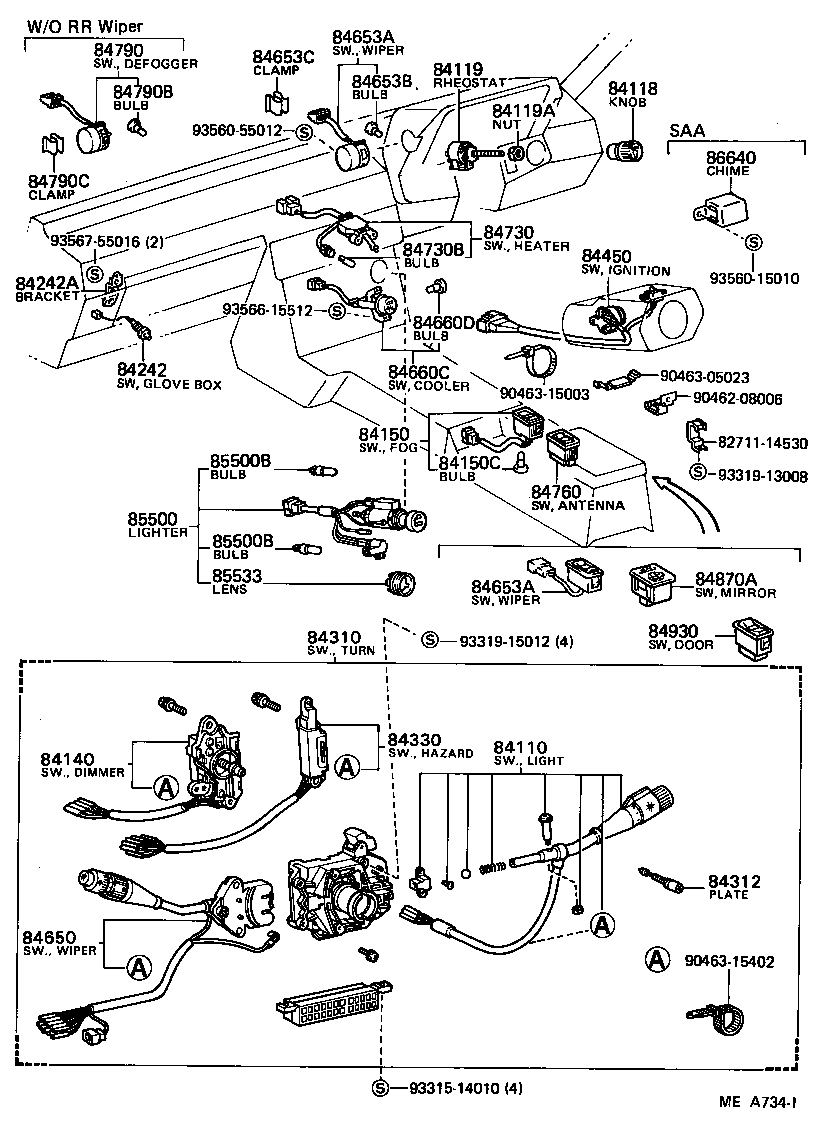

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19275 |
MA61,RA6#,TA60..LHD TOKAIRIKA |
1 | ||
| 84112-19455 |
MA61,RA6#,TA60..LHD TOKAIRIKA |
1 | ||
| 84112-19315 |
MA61,RA6#,TA60..LHD MATSUSHITA |
1 | ||
| 84112-19475 |
MA61,RA6#,TA60..LHD MATSUSHITA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
RA61..EUG;RA61..XT..SDZ;MA61,RA60,63..GT,SPR,XT;RA60,TA60..ST..(ARL,EUR) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-12040 |
RA61..XT..SDZ;RA61,TA60..LHD..(ST,XT)..EUG;MA61,RA60,63..LHD..(GT,SPR,XT) |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01020 |
RA61..EUG;RA61..XT..SDZ;MA61,RA60,63..GT,SPR,XT;RA60,TA60..ST..(ARL,EUR) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-14020 |
MA61,RA6#,TA60..LHD MATSUSHITA |
1 | ||
| 84140-19135 |
MA61,RA6#,TA60..LHD TOKAIRIKA |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-24010 |
TA60..LT..EUG;MA61,RA6#,TA60..GT,SPR,ST,XT |
1 | ||
| 84242A - BRACKET, GLOVE BOX LAMP SWITCH | ||||
| 84233-14010 |
TA60..LT..EUG;MA61,RA6#,TA60..GT,SPR,ST,XT |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-14260 |
RA61,63..LHD;RA60..LHD..XT;TA60..ST..EUG W/*IW |
1 | ||
| 84310-14450 |
RA61,63..LHD;RA60..LHD..XT;TA60..ST..EUG W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
MA61,RA6#,TA60 TOKAIRIKA |
1 | ||
| 84312-20020 |
MA61,RA6#,TA60 MATSUSHITA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-14100 |
MA61,RA6#,TA60..LHD MATSUSHITA |
1 | ||
| 84332-19105 |
MA61,RA6#,TA60..LHD TOKAIRIKA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
AA63,RA60,61,63,TA60..LHD |
1 | ||
| 84450-60080 |
RA60..LHD..XT;MA61,RA61,63,TA60..LHD..(EUR,SAA) W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19425 |
RA61,63..LHD;RA60..LHD..XT;TA60..ST..EUG W/*IW,MATSUSHITA |
1 | ||
| 84652-19365 |
RA61,63..LHD;RA60..LHD..XT;TA60..ST..EUG W/*IW,TOKAIRIKA |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14030 |
RA61,TA60..LB..LHD..ST;MA61,RA60,63..LB..LHD..(GEN,ME,SAA) |
1 | ||
| 84670-14020 |
MA61,RA6#,TA60..LB..LHD W/RR DEFOGGER |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-14030 |
RA61,TA60..LB..LHD..ST;MA61,RA60,63..LB..LHD..(GEN,ME,SAA) |
1 | ||
| 84670-14020 |
MA61,RA6#,TA60..LB..LHD W/RR DEFOGGER |
1 | ||
| 84653B - BULB, REAR WIPER SWITCH | ||||
| 90981-11024 |
MA61,RA6#,TA60..LB..LHD 12V 1.4W,W/RR DEFOGER |
1 | ||
| 84653C - CLAMP (FOR REAR WIPER) | ||||
| 90463-04033 |
MA61,RA6#,TA60..LB |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-14060 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
MA61,RA61..RHD;MA61..LHD..TWC;RA61..LHD..4FC;RA61..LHD..5F..EUG;RA61..5F..XT..(GEN,SAA);AA63,RA60,63,65,SA63,TA60 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-14160 |
MA61,RA6#,TA60..EUR,GEN,ME,SAA |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
MA61,RA6#,TA60..EUR,GEN,ME,SAA 14V 1.4W |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-14030 |
MA61,RA6#,TA60 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-14120 |
RA61..LHD..EUG;MA61,RA60,63,TA60..LHD |
1 | ||
| 84790C - CLAMP(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90463-04033 |
RA61..EUG;MA61,RA60,63,TA60 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-14110 |
MA61,RA6#,TA60..LHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AA63,MA61,RA6#,SA63,TA60 14V 1.4W |
2 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AA63,MA61,RA6#,SA63,TA60 14V 1.4W |
2 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-14020 |
MA61,RA6#,TA60 |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93560-15010 | ||||
| 93560-55012 | ||||
| 93566-15512 | ||||
| 93567-55016 | ||||

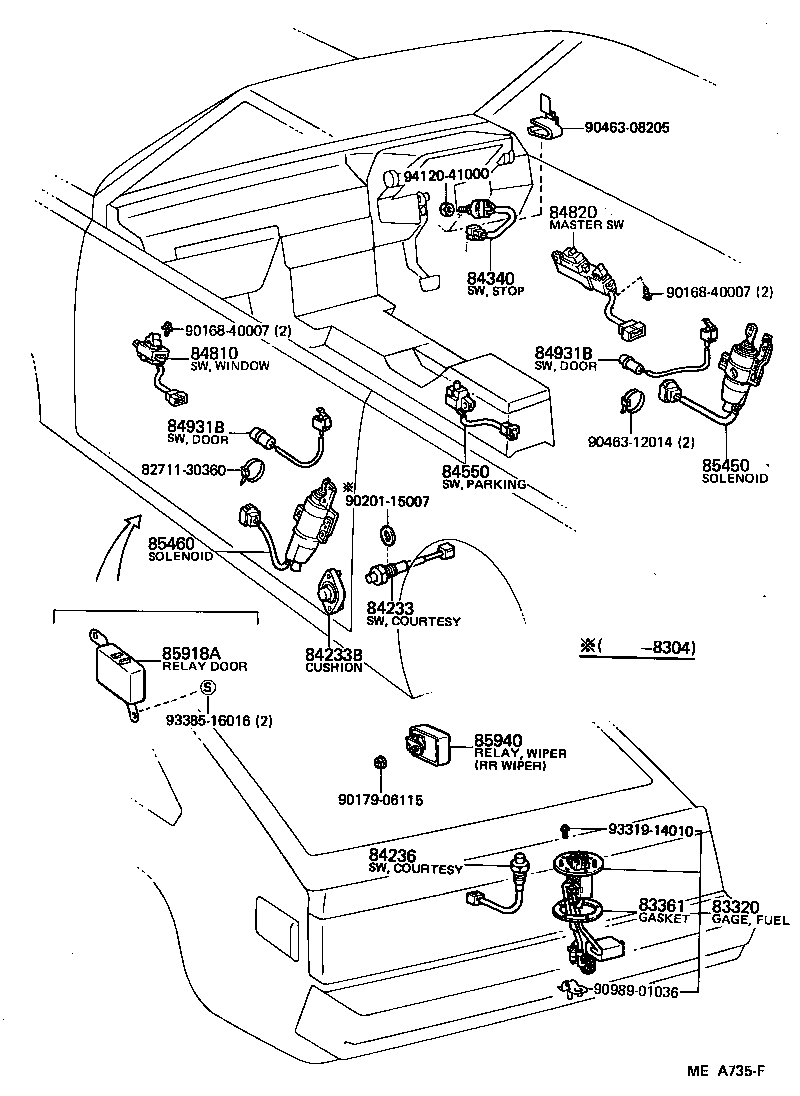

(8108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19555 |
RA60..ME;AA63,RA61,63,65,SA63 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-14030 |
MA61,RA6#,TA60 |
2 | ||
| 84230-95501 |
MA61,RA6#,TA60 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-14020 |
AA63,MA61,RA6#,SA63,TA60 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-20060 |
AA63,MA61,RA6#,SA63,TA60..LB |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
MA61,RA6#,TA60 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
AA63,MA61,RA6#,SA63,TA60 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-14040 |
MA61,RA6#,TA60..LB RR WIPER |
1 | ||
| 85940-12020 |
RA61,63;RA60..GT,XT;RA60,TA60..ST..(ARL,EUR) FR WIPER |
1 | ||
| Common parts | ||||
| 82711-30360 | ||||
| 90168-40007 | ||||
| 90179-06115 | ||||
| 90201-15007 | ||||
| 90463-08205 | ||||
| 90463-12014 | ||||
| 90989-01036 | ||||
| 93319-14010 | ||||
| 93385-16016 | ||||
| 94120-41000 | ||||
