RA60L-BLMMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)21R#

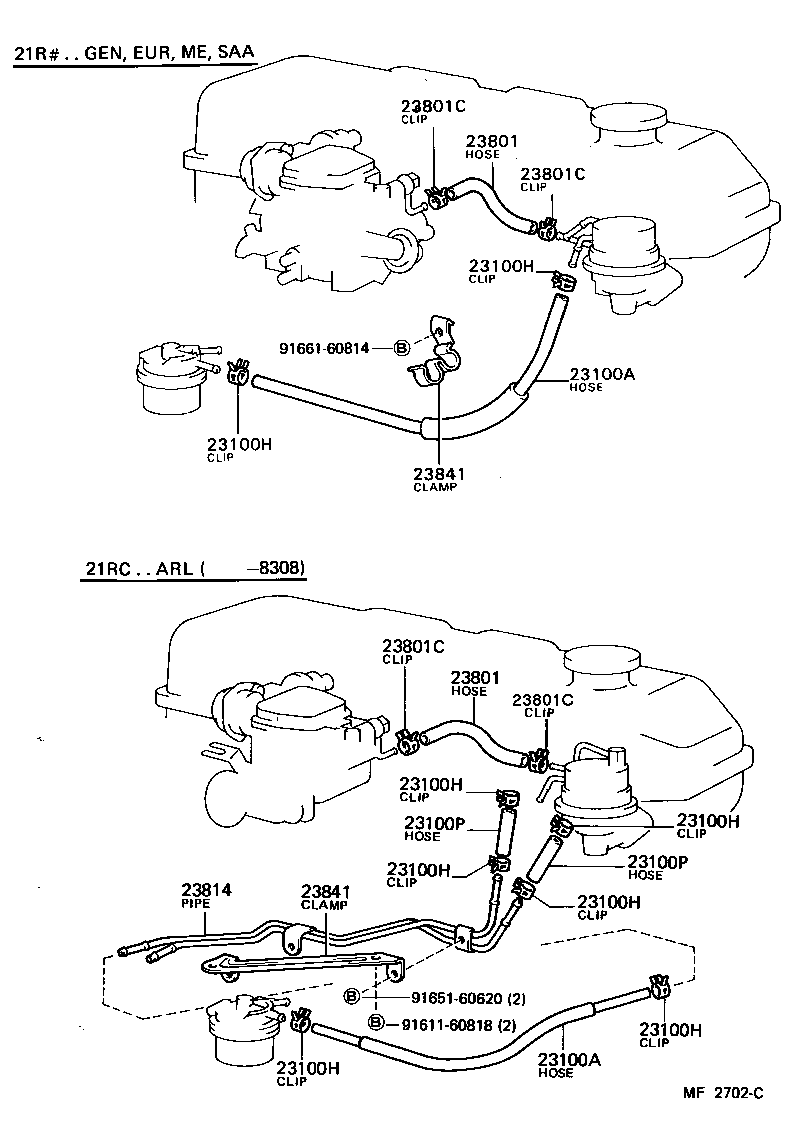

Click highlighted areas on diagram

diagram 23100A 23100A 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801 23801C 23801C 23801C 23801C 23814 23841 23841 9161160818 9165160620 9166160814
Part # Description Qty Price
23100A - HOSE, FUEL
23271-37020

21R#..RA60,61..EUR,GEN,ME,SAA

 1
23100A - HOSE, FUEL
23271-37020

21R#..RA60,61..EUR,GEN,ME,SAA

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23100H - CLIP(FOR FUEL HOSE)
96132-30600

21R#,18RG..RA60,61,63

 6
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

21R#..RA60,61

*H,L=190

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

21R#..RA60,61

*H,L=190

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#..RA60,61

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#..RA60,61

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#..RA60,61

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

21R#..RA60,61

 2
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-37030

21R#..RA60,61..EUR,GEN,ME,SAA

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-37030

21R#..RA60,61..EUR,GEN,ME,SAA

 1
Common parts
91611-60818
91651-60620
91661-60814
