RA60L-BLMMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)21R#

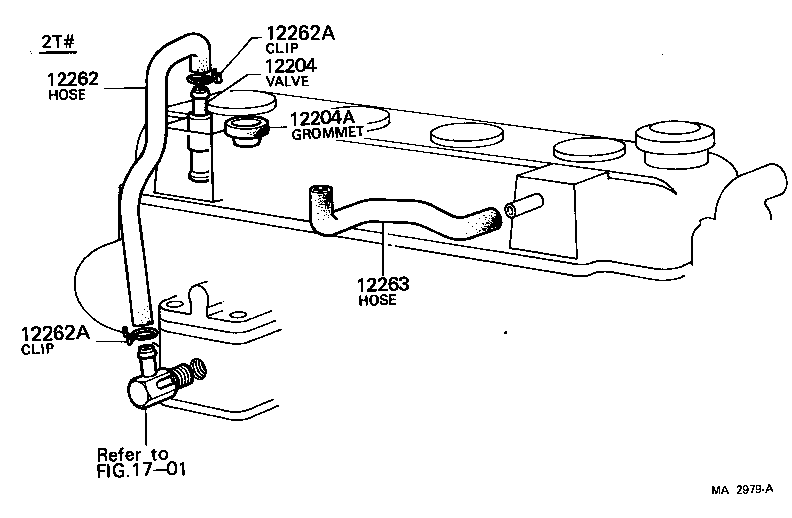

Click highlighted areas on diagram

diagram 12204 12204A 12262 12262A 12262A 12263 1701
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-35010

21R#..RA60,61

 1
12204-35010

21R#..RA60,61

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18180

21R#,22REC..RA60,61,65

 1
90480-18180

21R#,22REC..RA60,61,65

 1
12262 - HOSE, VENTILATION, NO.2
12261-38011

21R#..RA60,61..LHD

 1
12261-38011

21R#..RA60,61..LHD

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21R#..RA60,61

 2
90467-16010

21R#..RA60,61

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16010

21R#..RA60,61

 2
90467-16010

21R#..RA60,61

 2
12263 - HOSE, VENTILATION, NO.3
12262-35010

21R#..RA60,61

 1
12262-35010

21R#..RA60,61

 1
Linked diagrams
1701
