RA60L-BCPMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8308)

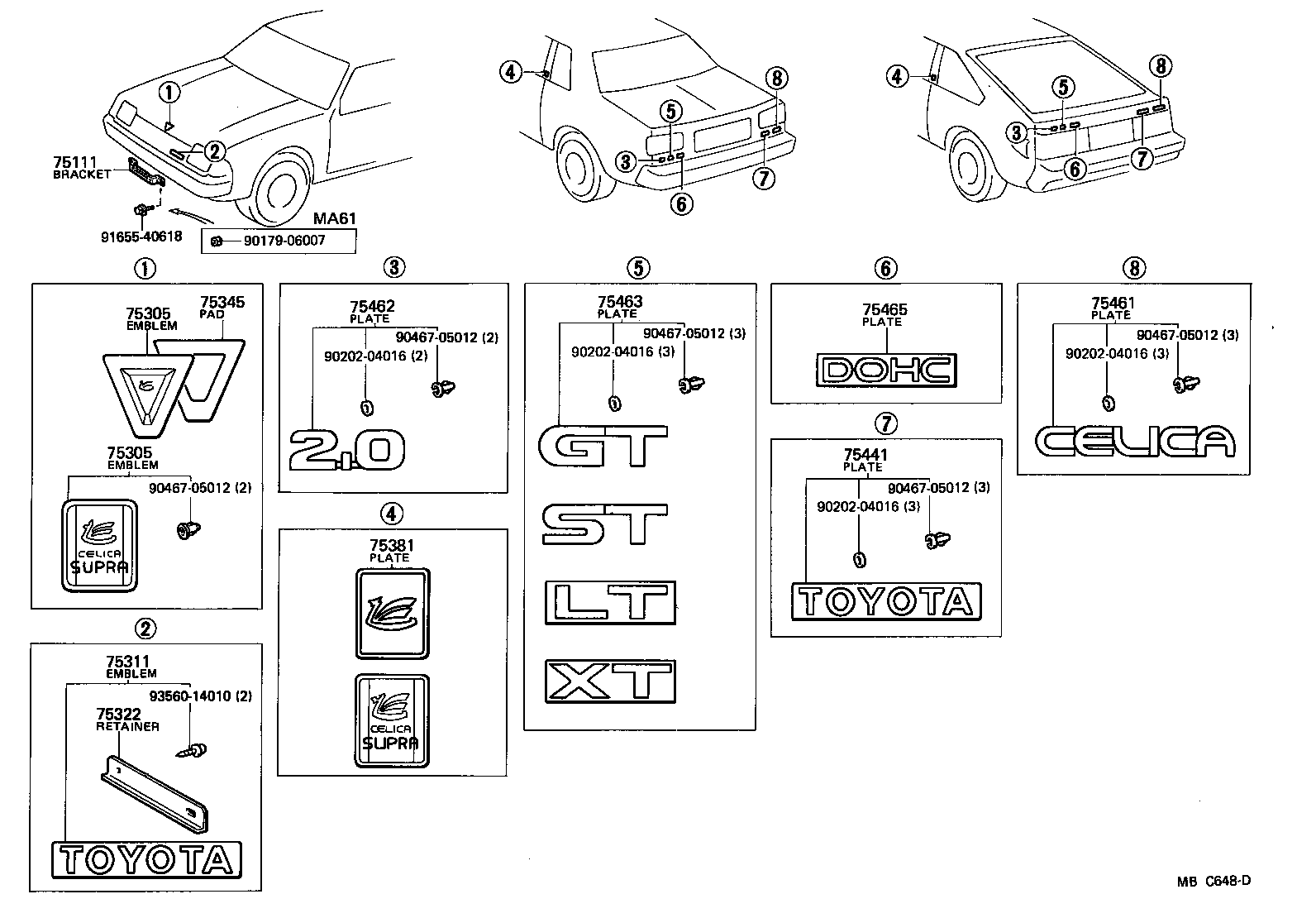

Click highlighted areas on diagram

diagram 75111 75305 75305 75311 75322 75345 75381 75441 75461 75462 75463 75465 9017906007 9020204016 9020204016 9020204016 9020204016 9046705012 9046705012 9046705012 9046705012 9046705012 9165540618 9356014010
Part # Description Qty Price
75305 - EMBLEM, HOOD
75303-14020

RA6#,TA60

 1
75305 - EMBLEM, HOOD
75303-14020

RA6#,TA60

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75321-19675

RA6#,TA60

TOYOTA

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-14140

MA61,RA6#,TA60

 1
75345 - PAD, HOOD ORNAMENT, NO.1
75345-14030

RA6#,TA60

 1
75381 - PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK)
75381-14130

AA63,RA6#,SA63,TA60

TYPE A

 1
75441 - PLATE, REAR NAME, NO.1
75443-14201

RA6#,TA60

TOYOTA

 1
75443-14200

RA6#,TA60

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-14171

RA6#,TA60

CELICA

 1
75441-14170

RA6#,TA60

CELICA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-14250

RA6#

2.0

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75444-14290

RA60,61..XT

XT

 1
Common parts
90179-06007
90202-04016
90467-05012
91655-40618
93560-14010
