RA60L-BCMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

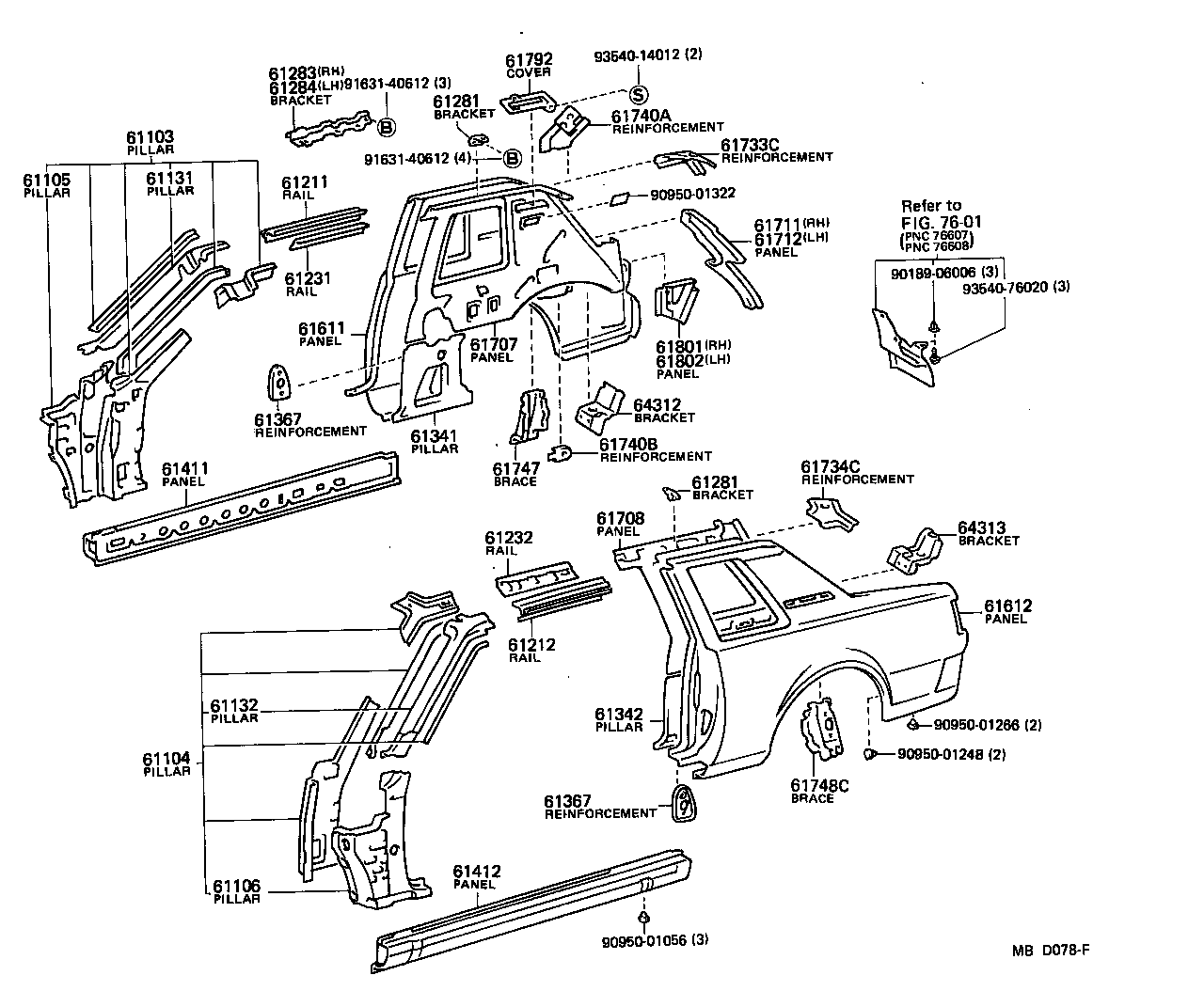

Click highlighted areas on diagram

diagram 61103 61104 61105 61106 61131 61132 61211 61212 61231 61232 61281 61281 61283 61284 61341 61342 61367 61367 61411 61412 61611 61612 61707 61708 61711 61712 61733C 61734C 61740A 61740B 61747 61748C 61792 61801 61802 64312 64313 7601 9018906006 9095001056 9095001248 9095001266 9095001322 9163140612 9163140612 9354014012 9354076020
Part # Description Qty Price
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-14230

AA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN)

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-14260

AA63,MA61,RA60,61,63,TA60..LHD..(EUR,GEN)

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61025-14050

AA63,MA61,RA60,61,63,TA60..LHD

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61026-14050

AA63,MA61,RA60,61,63,TA60..LHD

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-14170

AA63,MA61,RA6#,SA63,TA60

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-14140

AA63,MA61,RA6#,SA63,TA60

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-14902

AA63,RA6#,SA63,TA60..CP

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-14902

AA63,RA6#,SA63,TA60..CP

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-14150

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
61231-14130

AA63,MA61,RA6#,SA63,TA60

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-14130

AA63,MA61,RA6#,SA63,TA60

 1
61232-14150

RA6#,TA60..ARL,EUR,GEN

W/SUN ROOF

 1
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-14030

RA6#,TA60..ARL,EUR,GEN

 2
61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
61281-14030

RA6#,TA60..ARL,EUR,GEN

 2
61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
61283-14030

RA6#,TA60..ARL,EUR,GEN

 1
61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
61284-14030

RA6#,TA60..ARL,EUR,GEN

 1
61341 - PILLAR, CENTER BODY, INNER LOWER RH
61345-14010

AA63,MA61,RA6#,SA63,TA60

 1
61342 - PILLAR, CENTER BODY, INNER LOWER LH
61346-14010

AA63,MA61,RA6#,SA63,TA60

 1
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-24010

AA63,MA61,RA6#,SA63,TA60

 2
61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61367-24010

AA63,MA61,RA6#,SA63,TA60

 2
61411 - PANEL, ROCKER, OUTER RH
61401-14050

AA63,MA61,RA6#,SA63,TA60

 1
61412 - PANEL, ROCKER, OUTER LH
61402-14050

AA63,MA61,RA6#,SA63,TA60

 1
61611 - PANEL, QUARTER, RH
61601-14860

RA6#,TA60..CP..(ARL,EUR,GEN)

W/LID OPENER

 1
61601-14820

AA63,RA6#,SA63,TA60..CP

 1
61612 - PANEL, QUARTER, LH
61602-14730

AA63,RA6#,SA63,TA60..CP

 1
61707 - PANEL SUB-ASSY, QUARTER, INNER RH
61703-14901

AA63,RA60,61,63,TA60..CP

 1
61708 - PANEL SUB-ASSY, QUARTER, INNER LH
61704-14901

AA63,RA60,61,63,TA60..CP

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-14060

AA63,RA6#,SA63,TA60..CP

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-14060

AA63,RA6#,SA63,TA60..CP

 1
61740A - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER REAR
61768-14010

AA63,RA60,61,63,TA60..CP

RH

 1
61769-14010

AA63,RA60,61,63,TA60..CP

LH

 1
61740B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE, INNER
61677-14020

AA63,MA61,RA6#,SA63,TA60

LWR,RH

 1
61678-14020

AA63,MA61,RA6#,SA63,TA60

LWR,LH

 1
61766-14060

AA63,MA61,RA6#,SA63,TA60

UPR

 2
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-14020

AA63,RA6#,SA63,TA60..CP

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-14030

AA63,RA6#,SA63,TA60..CP

 1
61792 - COVER, ROOF SIDE INNER SERVICE HOLE
61791-14030

AA63,RA6#,SA63,TA60..CP

RH

 1
61792-14030

AA63,RA6#,SA63,TA60..CP

LH

 1
61801 - PANEL, QUARTER INSIDE, REAR RH
61617-14040

AA63,RA6#,SA63,TA60..CP

 1
61802 - PANEL, QUARTER INSIDE, REAR LH
61618-14050

AA63,RA6#,SA63,TA60..CP

 1
64312 - BRACKET, PACKAGE TRAY, RH
64312-14090

AA63,RA6#,SA63,TA60..CP

 1
64313 - BRACKET, PACKAGE TRAY, LH
64313-14090

AA63,RA6#,SA63,TA60..CP

 1
Common parts
90189-06006
90950-01056
90950-01248
90950-01266
90950-01322
91631-40612
93540-14012
93540-76020
Linked diagrams
7601

(8108-8507)CP

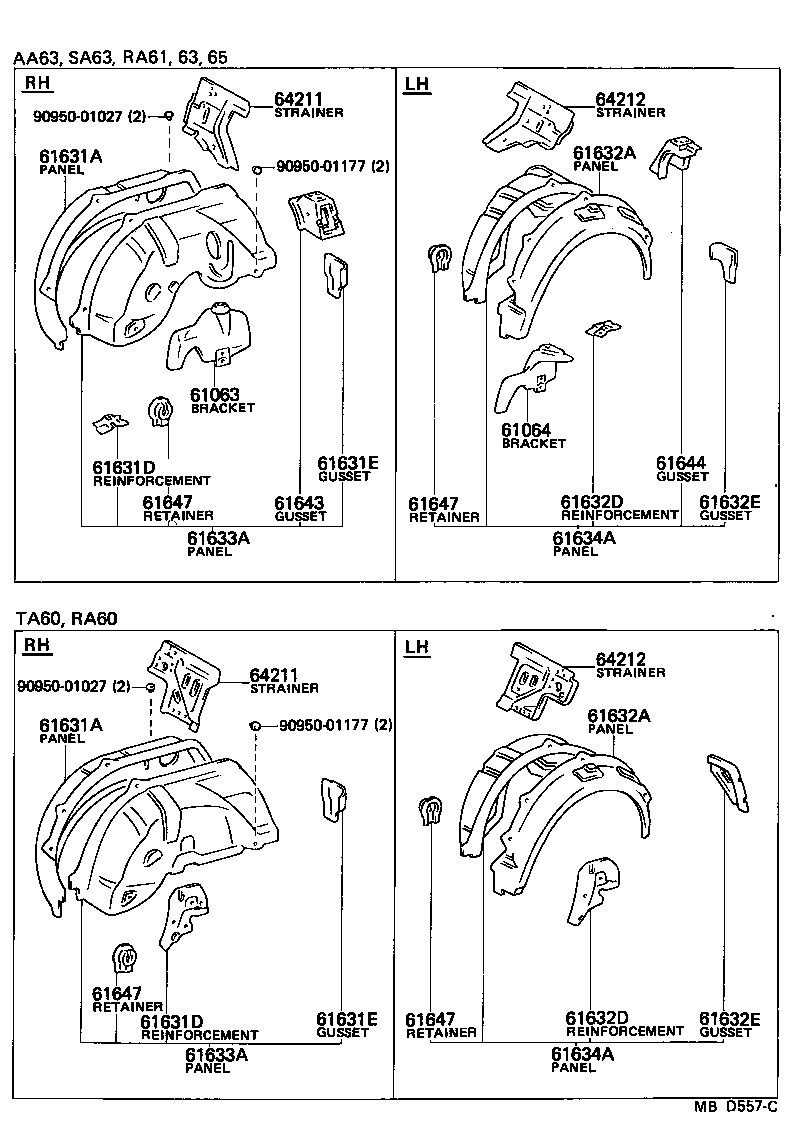

Click highlighted areas on diagram

diagram 61063 61064 61631A 61631A 61631D 61631D 61631E 61631E 61632A 61632A 61632D 61632D 61632E 61632E 61633A 61633A 61634A 61634A 61643 61644 61647 61647 61647 61647 64211 64211 64212 64212 9095001027 9095001027 9095001177 9095001177
Part # Description Qty Price
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61605-14030

AA63,MA61,RA6#,SA63,TA60

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61605-14030

AA63,MA61,RA6#,SA63,TA60

 1
61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH
61675-14030

RA60,TA60

 1
61631D - REINFORCEMENT, QUARTER WHEEL HOUSE, RH
61675-14030

RA60,TA60

 1
61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-14040

AA63,MA61,RA6#,SA63,TA60

 1
61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH
61645-14040

AA63,MA61,RA6#,SA63,TA60

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-14140

AA63,MA61,RA6#,SA63,TA60

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-14140

AA63,MA61,RA6#,SA63,TA60

 1
61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH
61642-14010

AA63,MA61,RA6#,SA63,TA60

 1
61676-14020

RA60,TA60

 1
61632D - REINFORCEMENT, QUARTER WHEEL HOUSE, LH
61642-14010

AA63,MA61,RA6#,SA63,TA60

 1
61676-14020

RA60,TA60

 1
61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-14050

AA63,MA61,RA6#,SA63,TA60

 1
61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH
61646-14050

AA63,MA61,RA6#,SA63,TA60

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61603-14909

RA60,TA60

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61603-14909

RA60,TA60

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61604-14909

RA60,TA60

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61604-14909

RA60,TA60

 1
64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-14110

RA60,TA60..CP

 1
64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH
64211-14110

RA60,TA60..CP

 1
64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-14110

RA60,TA60..CP

 1
64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH
64212-14110

RA60,TA60..CP

 1
Common parts
90950-01027
90950-01177
