RA60L-BCMSS (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)RA60,TA60..ARL,EUR,GEN

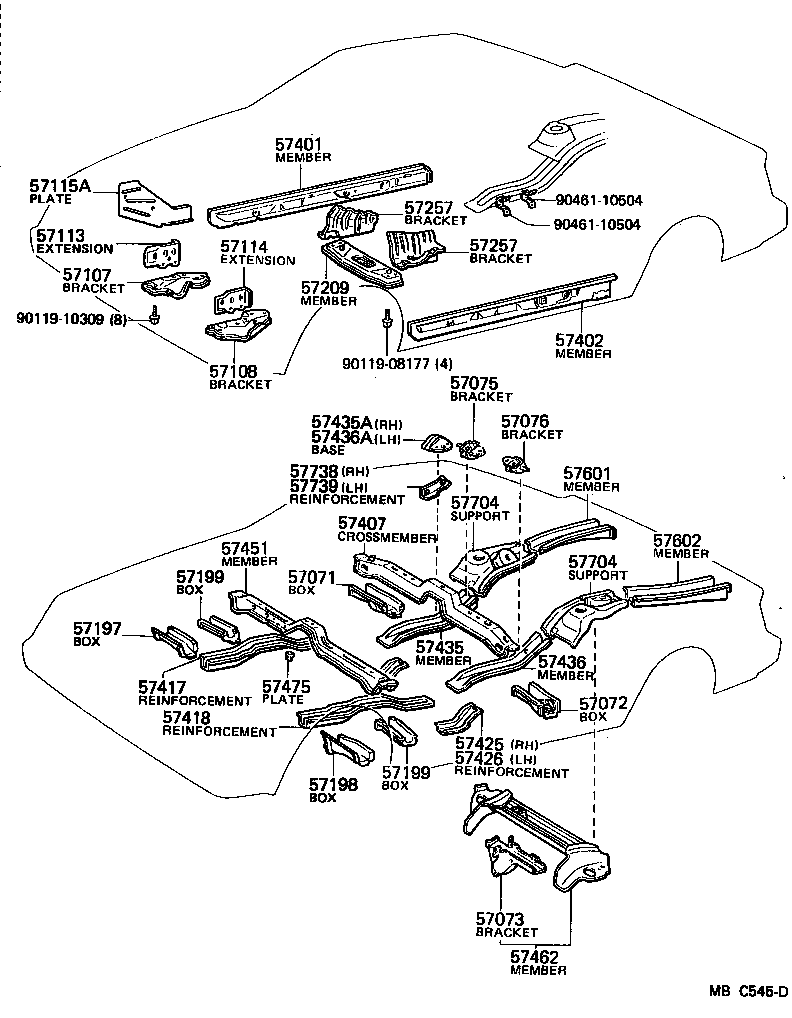

Click highlighted areas on diagram

diagram 57071 57072 57073 57075 57076 57107 57108 57113 57114 57115A 57197 57198 57199 57199 57209 57257 57257 57401 57402 57407 57417 57418 57425 57426 57435 57435A 57436 57436A 57451 57462 57475 57601 57602 57704 57704 57738 57739 9011908177 9011910309 9046110504 9046110504
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-14020

RA60,TA60

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-14020

RA60,TA60

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-14040

RA60,TA60

 1
57075 - BRACKET SUB-ASSY, UPPER CONTROL LINK, RH
57075-14030

RA60,TA60

 1
57076 - BRACKET SUB-ASSY, UPPER CONTROL LINK, LH
57076-14030

RA60,TA60

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-14080

AA63,RA6#,SA63,TA60

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-14080

AA63,RA6#,SA63,TA60

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-14090

AA63,RA6#,SA63,TA60

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-14050

AA63,RA6#,SA63,TA60

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-14090

AA63,RA6#,TA60

 1
57197 - BOX, TORQUE, FRONT RH
57197-14010

AA63,RA6#,SA63,TA60

PLANT.A41,A42

 1
57197-24010

AA63,MA61,RA6#,SA63,TA60

PLANT.A51-A54

 1
57198 - BOX, TORQUE, FRONT LH
57198-14010

AA63,RA6#,SA63,TA60

PLANT.A41,A42

 1
57198-24010

AA63,MA61,RA6#,SA63,TA60

PLANT.A51-A54

 1
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

AA63,MA61,RA6#,SA63,TA60

 2
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

AA63,MA61,RA6#,SA63,TA60

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-14190

TA60..3FC;RA60,61,63

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57258-24010

AA63,MA61,RA6#,SA63,TA60

LH

 1
57257-14050

AA63,RA6#,SA63,TA60

RH

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57258-24010

AA63,MA61,RA6#,SA63,TA60

LH

 1
57257-14050

AA63,RA6#,SA63,TA60

RH

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-14180

RA60,TA60

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-14180

RA60,TA60

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-14010

AA63,MA61,RA6#,SA63,TA60

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-24010

AA63,MA61,RA6#,SA63,TA60

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-24010

AA63,MA61,RA6#,SA63,TA60

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-24010

AA63,MA61,RA6#,SA63,TA60

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-24010

AA63,MA61,RA6#,SA63,TA60

 1
57435 - MEMBER, CENTER FLOOR SIDE, RH
57435-14010

RA60,TA60

 1
57435A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-14010

RA60,TA60

 1
57436 - MEMBER, CENTER FLOOR SIDE, LH
57436-14010

RA60,TA60

 1
57436A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58283-14010

RA60,TA60

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-24010

AA63,MA61,RA6#,SA63,TA60

 1
57462 - MEMBER, CENTER FLOOR CROSS, NO.2
57405-14080

RA60,TA60..ARL,EUR,GEN

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-24010

AA63,MA61,RA6#,SA63,TA60

 4
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14100

RA60,TA60..ARL,EUR,GEN

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14090

RA60,TA60..ARL,EUR,GEN

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57704-14050

RA60,TA60

LH

 1
57701-14040

RA60,TA60

RH

 1
57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING
57704-14050

RA60,TA60

LH

 1
57701-14040

RA60,TA60

RH

 1
57738 - REINFORCEMENT, REAR STABILIZER BRACKET, RH
57738-14020

RA60,TA60

 1
57739 - REINFORCEMENT, REAR STABILIZER BRACKET, LH
57739-14010

RA60,TA60

 1
Common parts
90119-08177
90119-10309
90461-10504
