RA60L-BCMMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP..GT,XT

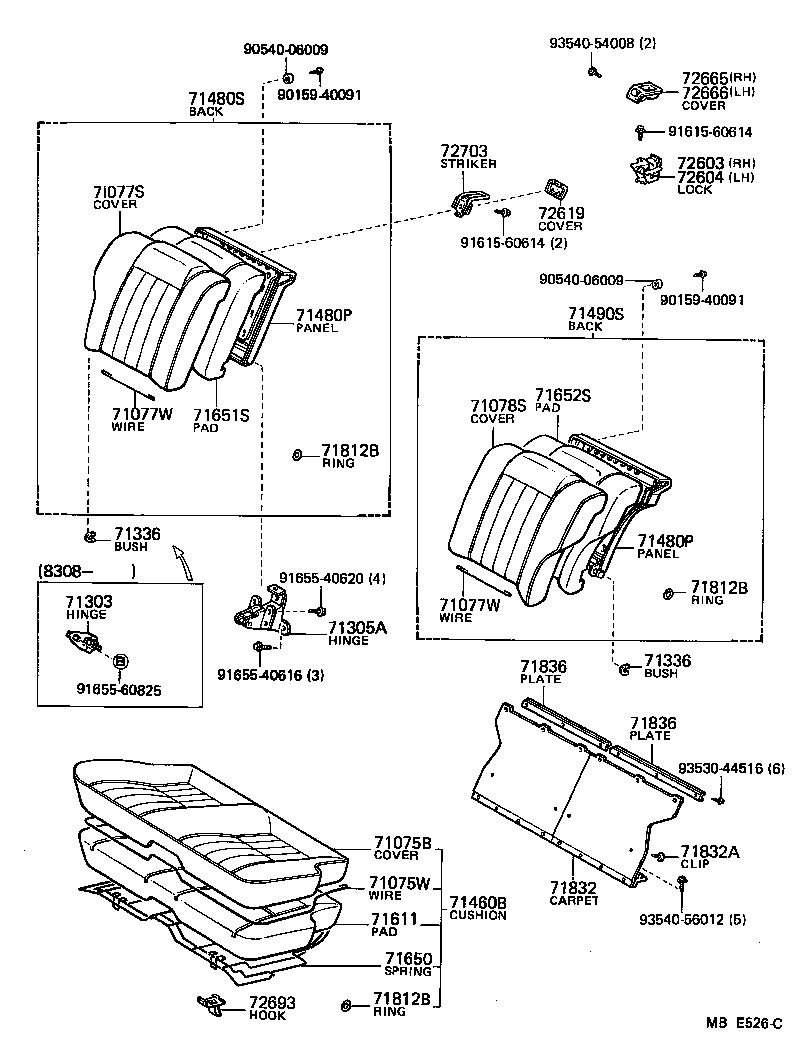

Click highlighted areas on diagram

diagram 71075B 71075W 71077S 71077W 71077W 71078S 71303 71305A 71336 71336 71460B 71480P 71480P 71480S 71490S 71611 71650 71651S 71652S 71812B 71812B 71812B 71832 71832A 71836 71836 72603 72604 72619 72665 72666 72693 72703 9015940091 9015940091 9054006009 9054006009 9161560614 9161560614 9165540616 9165540620 9165560825 9353044516 9354054008 9354056012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-1B48001

RA60..LHD..XT

FB,BLACK,BLACK,TRIM2#

 1
71075-1B48006

RA60..LHD..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71075-1B48004

RA60..LHD..XT

FB,BLUE,BLUE,TRIM8#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20132

AA63,MA61,RA6#,SA63,TA60

L=1000

 1
90580-20106

MA61,RA6#,TA60

L=500

 2
90580-20007

AA63,MA61,RA6#,SA63,TA60

L=1200

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1B40006

RA60,61..CP..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71077-1B40004

RA60,61..CP..XT

FB,BLUE,BLUE,TRIM8#

 1
71077-1B40001

RA60,61..CP..XT

FB,BLACK,BLACK,TRIM2#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20020

RA6#..CP..(GT,XT)

L=420

 2
90580-20032

AA63,RA60,61,63..CP..(GT,XT)

L=320

 4
90580-20051

AA63,RA60,61,63..CP..(GT,XT)

L=520

 2
71077W - WIRE, REAR SEAT BACK COVER
90580-20020

RA6#..CP..(GT,XT)

L=420

 2
90580-20032

AA63,RA60,61,63..CP..(GT,XT)

L=320

 4
90580-20051

AA63,RA60,61,63..CP..(GT,XT)

L=520

 2
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1425006

RA60,61..CP..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71078-1425001

RA60,61..CP..XT

FB,BLACK,BLACK,TRIM2#

 1
71078-1425004

RA60,61..CP..XT

FB,BLUE,BLUE,TRIM8#

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-14050

AA63,RA60,61,63..CP..(GT,XT)

 1
71336 - BUSH OR SPACER, REAR SEAT BACK HINGE
90386-12021

RA6#..GT,XT;RA60,61,TA60..LB..ST

 2
71336 - BUSH OR SPACER, REAR SEAT BACK HINGE
90386-12021

RA6#..GT,XT;RA60,61,TA60..LB..ST

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1B55006

RA60..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71460-1B55004

RA60..XT

FB,BLUE,BLUE,TRIM8#

 1
71460-1B55001

RA60..XT

FB,BLACK,BLACK,TRIM2#

 1
71480P - PANEL SUB-ASSY, REAR SEAT BACK
71017-14180

RA6#..CP..(GT,XT)

RH

 1
71018-14020

RA6#..CP..(GT,XT)

LH

 1
71480P - PANEL SUB-ASSY, REAR SEAT BACK
71017-14180

RA6#..CP..(GT,XT)

RH

 1
71018-14020

RA6#..CP..(GT,XT)

LH

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1B43001

RA60,61..CP..XT

FB,BLACK,BLACK,TRIM2#

 1
71480-1B43004

RA60,61..CP..XT

FB,BLUE,BLUE,TRIM8#

 1
71480-1B43006

RA60,61..CP..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1429001

RA60,61..CP..XT

FB,BLACK,BLACK,TRIM2#

 1
71490-1429006

RA60,61..CP..XT

FB,DARK BROWN,BROWN,TRIM4#

 1
71490-1429004

RA60,61..CP..XT

FB,BLUE,BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71611-14130

RA60,TA60..ARL,GEN,ME

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71015-14110

RA60,TA60..ARL,GEN,ME

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-14150

AA63,RA60,61,63..CP..(GT,XT)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-14080

AA63,RA60,61,63..CP..(GT,XT)

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AA63,MA61,RA6#,SA63,TA60

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AA63,MA61,RA6#,SA63,TA60

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

AA63,MA61,RA6#,SA63,TA60

 1
71832 - CARPET OR MAT, REAR SEAT BACK
71880-1401001

RA60..CP..XT

BLACK,BLACK,TRIM2#

 1
71880-1401004

RA60..CP..XT

BLUE,BLUE,TRIM8#

 1
71880-1401006

RA60..CP..XT

DARK BROWN,BROWN,TRIM3#

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0601606

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 4
90467-0601604

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 4
90467-0601601

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 4
71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER
58583-14040

AA63,RA60,61,63..CP..(GT,XT)

RH

 1
58584-14020

AA63,RA60,61,63..CP..(GT,XT)

LH

 1
71836 - PLATE, REAR SEAT BACK CARPET OR MAT SUPPORT, UPPER
58583-14040

AA63,RA60,61,63..CP..(GT,XT)

RH

 1
58584-14020

AA63,RA60,61,63..CP..(GT,XT)

LH

 1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-1405001

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 1
72630-1405006

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 1
72630-1405004

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72630-1405006

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 1
72630-1405001

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 1
72630-1405004

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 1
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72615-1403001

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 2
72615-1403004

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 2
72615-1403006

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 2
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-1403001

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 1
72665-1403004

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 1
72665-1403006

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 1
72666 - COVER, REAR SEAT BACK LOCK, LH
72665-1403001

AA63,RA60,61,63..CP..(GT,XT)

BLACK,BLACK,TRIM2#

 1
72665-1403004

AA63,RA60,61,63..CP..(GT,XT)

BLUE,BLUE,TRIM8#

 1
72665-1403006

AA63,RA60,61,63..CP..(GT,XT)

DARK BROWN,BROWN,TRIM4#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-14030

AA63,MA61,RA6#,SA63,TA60

 2
72703 - STRIKER SUB-ASSY, REAR SEAT BACK STOPPER
72601-14040

RA6#..CP..(GT,XT)

 2
Common parts
90159-40091
90540-06009
91615-60614
91655-40616
91655-40620
91655-60825
93530-44516
93540-54008
93540-56012
