RA60L-BCMMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)CP

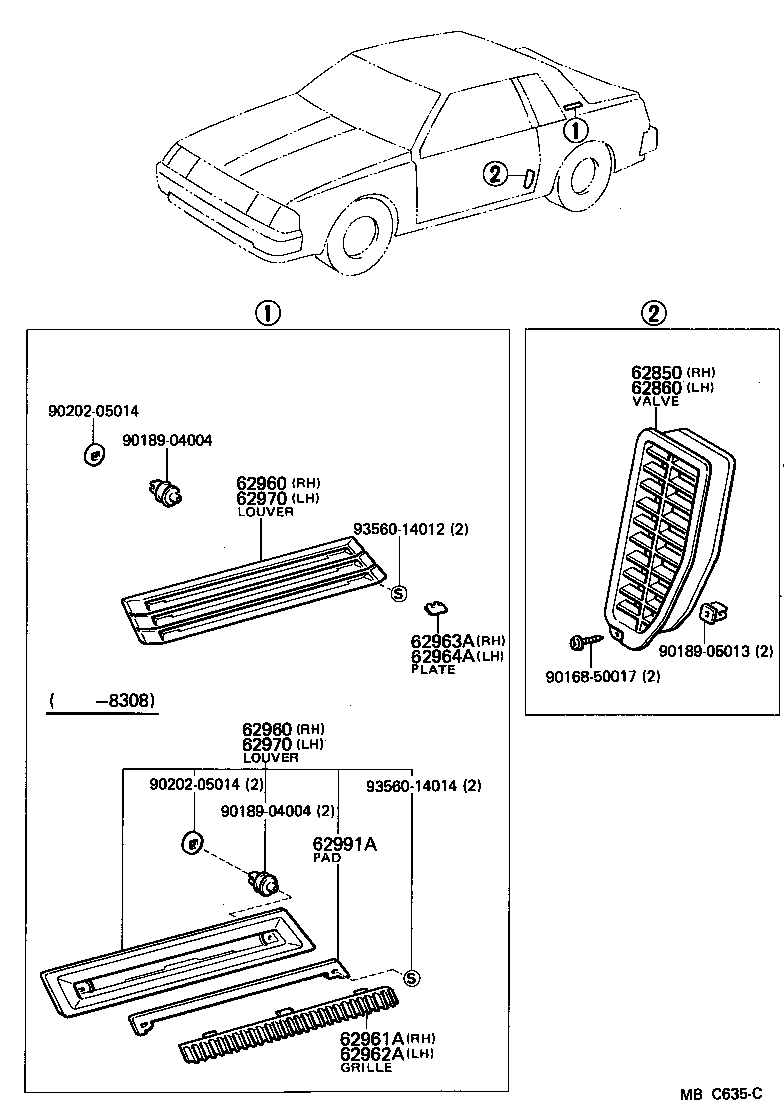

Click highlighted areas on diagram

diagram 62850 62860 62960 62961A 62962A 62963A 62964A 62970 62970 62991A 9016850017 9018904004 9018904004 9018905013 9020205014 9020205014 9356014012 9356014014
Part # Description Qty Price
62850 - VALVE ASSY, ROOM PRESSURE RELIEF, RH
62850-14040

AA63,MA61,RA6#,SA63,TA60

 1
62860 - VALVE ASSY, ROOM PRESSURE RELIEF, LH
62860-14030

AA63,MA61,RA6#,SA63,TA60

 1
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62951-19265

RA6#,TA60..CP

 1
62961A - GRILLE, ROOM VENT, RH
62961-14020

RA6#,TA60..CP

 1
62962A - GRILLE, ROOM VENT, LH
62962-14020

RA6#,TA60..CP

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19175

RA6#,TA60..CP

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62952-19175

RA6#,TA60..CP

 1
62991A - PAD, QUARTER VENT LOUVER
62991-14050

RA6#,TA60..CP

 2
Common parts
90168-50017
90189-04004
90189-05013
90202-05014
93560-14012
93560-14014
