RA60L-BCMMSV (1981)

Toyota Celica

Production Aug 1981 - Aug 1983
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8408)21RC,18RG..RA60,63 ; (8108-8408)21R#,2T#..LHD ; (8408-8507)2TB

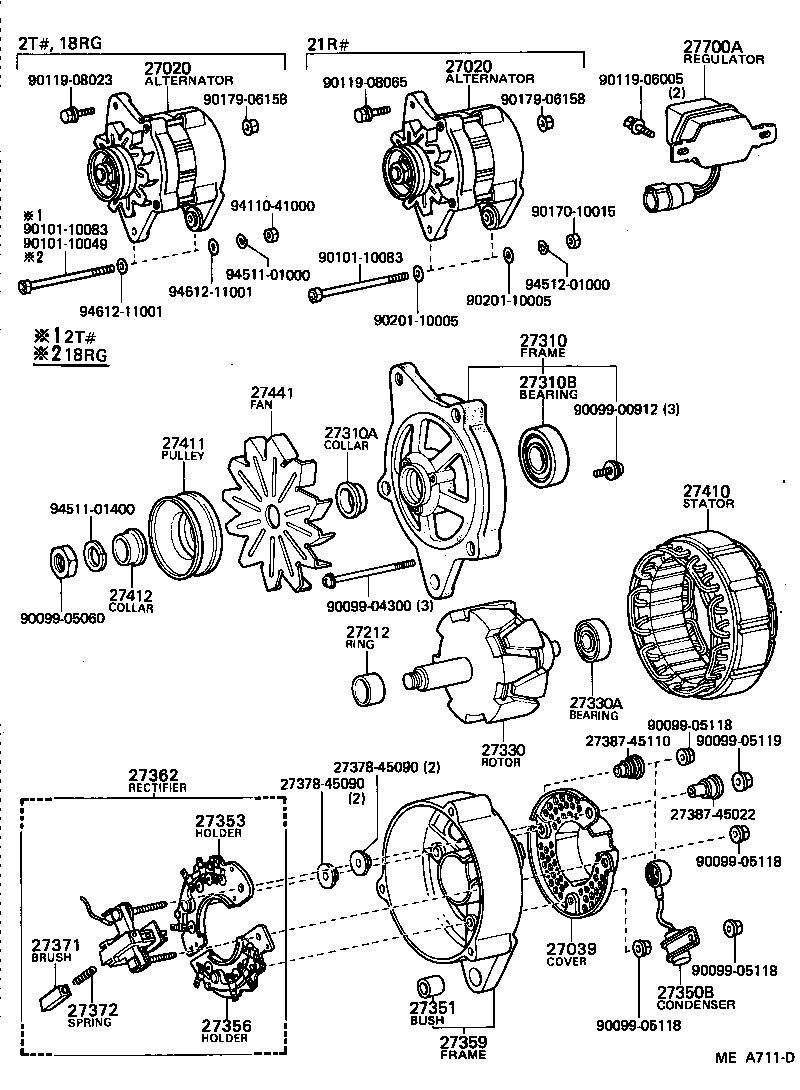

Click highlighted areas on diagram

diagram 27020 27020 27039 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27353 27356 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27412 27441 27700A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9010110083 9010110083 9011906005 9011908023 9011908065 9017010015 9017906158 9017906158 9020110005 9020110005 9411041000 9451101000 9451101400 9451201000 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-34051

21R,2T#..RA60,61,TA60..LHD

12V 50A,12V 50A

 1
27020-34021

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A,12V 55A

 1
27020 - ALTERNATOR ASSY
27020-34051

21R,2T#..RA60,61,TA60..LHD

12V 50A,12V 50A

 1
27020-34021

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A,12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-15010

21R,2T#..RA60,61,TA60..LHD

12V 50A

 1
27039-45110

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-34050

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63010

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27330-45070

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-34021

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27353-34121

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27353-34051

21R,2T#..RA60,61,TA60..LHD

12V 50A

 1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-34051

21R,2T#..RA60,61,TA60..LHD

12V 50A

 1
27356-34021

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-24100

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-34021

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27362-34121

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27362-15021

21R,2T#..RA60,61,TA60..LHD

12V 50A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21R#,18RG,5MGE,2T#..MA61,RA6#,TA60

12V 50A,55A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-43040

21RC..RA60;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27410-45120

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 55A

 1
27410-41080

21R..RA61;21R#,2T#..RA60,TA60

12V 50A,55A

 1
27411 - PULLEY, ALTERNATOR
27411-31042

21R#,2T#..RA60,61,TA60

12V 50A,55A

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
27441 - FAN, ALTERNATOR
27441-34030

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63010

21RC,18RG..RA60,63;21R#,2T#..RA60,61,TA60..LHD

12V 50A,55A

 1
Common parts
27378-45090
27387-45022
27387-45110
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90101-10083
90119-06005
90119-08023
90119-08065
90170-10015
90179-06158
90201-10005
94110-41000
94511-01000
94511-01400
94512-01000
94612-11001
