RA60L-BCMMSV (1981)
Toyota Celica
Production
Aug 1981
-
Aug 1983
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8108-8202)21R ; (8108-8408)21R..RA61..EUG

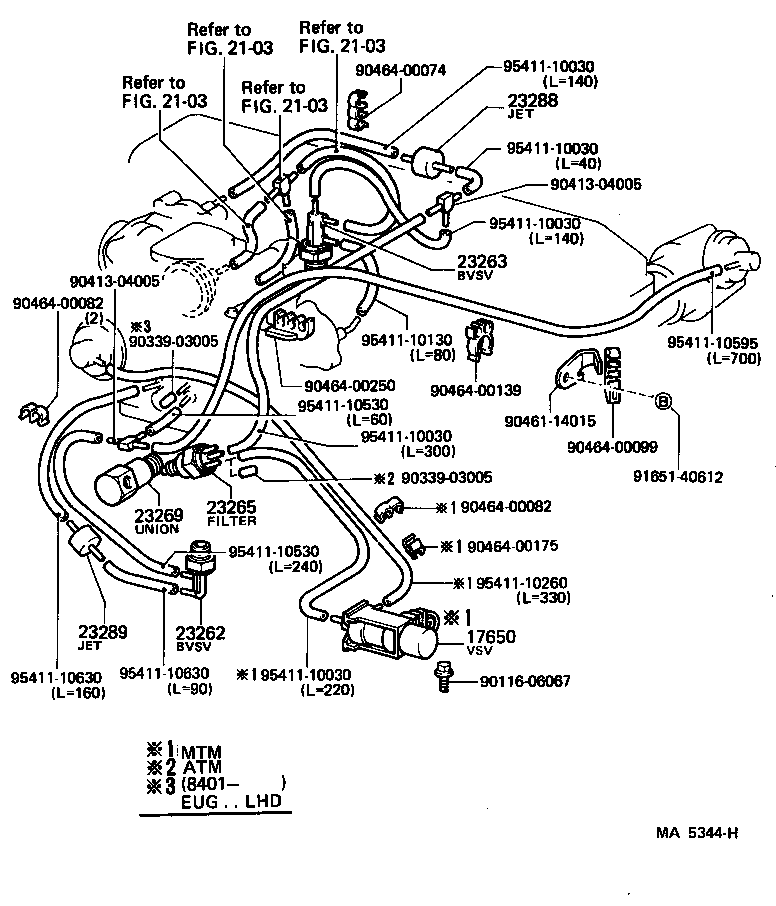

Click highlighted areas on diagram
(8108-8202)HONG KONG SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#,22REC..RA60,61,65 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R#..RA60,61 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RA60,61 |
1 | ||
| Common parts | ||||
| 90116-06067 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00099 | ||||
| 90464-00139 | ||||
| 90464-00175 | ||||
| 90464-00250 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10260 | ||||
| 95411-10530 | ||||
| 95411-10595 | ||||
| 95411-10630 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8108- )21R#,22REC,18RG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
