MA61R-BLPQFW (1983)
Toyota Celica
(8108-8507)RA60,61,65,SA63..4FC

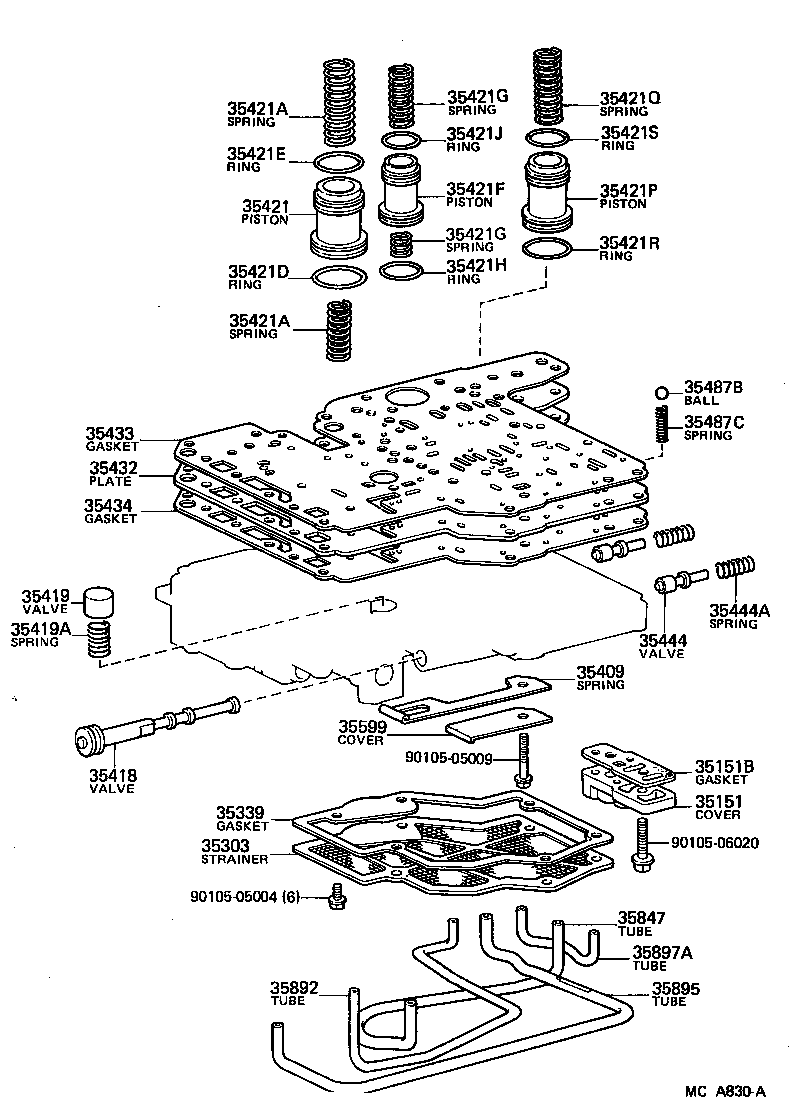

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30031 |
RA60,61,65,SA63..4FC |
1 | ||
| 35303-30060 |
MA61..4FC..EUG |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30060 |
MA61..4FC..EUG |
1 | ||
| 35339-30030 |
RA60,61,65,SA63..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
MA61..4FC..EUG |
1 | ||
| 35418-30050 |
RA60,61,65,SA63..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
RA60,61,65,SA63,TA60..ATM OD=6.35,RUBBER,OD=6.35,GUM |
1 | ||
| 35495-22010 |
RA60,61,65,SA63,TA60..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
RA60,61,65,SA63,TA60..ATM OD=6.35,RUBBER,OD=6.35,GUM |
1 | ||
| 35495-22010 |
RA60,61,65,SA63,TA60..ATM OD=5.535,RUBBER,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-24010 |
MA61..4FC..EUG |
1 | ||
| 35421-22010 |
RA60,61,SA63,TA60..ATM |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-29002 |
RA60,61..4FC |
1 | ||
| 90501-13012 |
MA61..EUG LWR |
1 | ||
| 90501-28004 |
MA61..EUG UPR |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
MA61..4FC..TWC |
1 | ||
| 35441-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-13009 |
MA61..4FC..(ARL,EUR) LWR |
1 | ||
| 90501-25002 |
RA60,61,65..4FC |
1 | ||
| 90501-18041 |
MA61..EUG UPR |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20016 |
MA61..4FC..EUG |
1 | ||
| 90501-20675 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22081 |
MA61..4FC..EUG |
1 | ||
| 35432-22080 |
MA61..4FC..EUG |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35433-30071 |
MA61..4FC..EUG |
1 | ||
| 35433-30072 |
MA61..4FC..EUG |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30061 |
MA61..4FC..EUG |
1 | ||
| 35434-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35434-30062 |
MA61..4FC..EUG |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22010 |
RA60,61,TA60..ATM |
1 | ||
| 35599-30010 |
MA61..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35892-30030 |
MA61..4FC..EUG |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-30010 |
RA60,61,65,SA63..4FC |
3 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
MA61..4FC..EUG |
1 | ||
| 35895-30010 |
RA60,61..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
(8308- )MA61..4FC..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22110 |
RA60,61..4FC |
1 | ||
| 35430-30120 |
MA61..4FC..EUG |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
RA60,61,65,SA63,TA60..ATM OD=5.535,RUBBER,OD=5.56,GUM |
3 | ||
| 90360-06023 |
MA61,RA60,61,65,SA63,TA60..ATM 0D=5.56,OD=5.56,STEEL |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
MA61..4FC..EUG |
1 | ||
| 35436-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22041 |
RA60,61,SA63..RHD..4FC |
1 | ||
| 35440-30070 |
MA61..4FC..EUG |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-30010 |
MA61..4FC..EUG |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
MA61..4FC..EUG |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-30010 |
MA61..4FC..EUG |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30040 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456-30050 |
MA61..4FC..EUG |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 90501-08013 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-30010 |
MA61..4FC..EUG |
1 | ||
| 35452-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-30030 |
MA61..4FC..EUG |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
MA61..4FC..EUG |
1 | ||
| 35458-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
MA61..4FC..EUG |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
SA63,TA60..ATM;RA60,61..RHD..4FC |
1 | ||
| 35408-30020 |
MA61..4FC..EUG |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
RA60,61..RHD..4FC;RA65,SA63,TA60..ATM L=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-11011 |
MA61..4FC..EUG PRIMARY |
1 | ||
| 90501-07680 |
MA61,RA60,61,65,SA63,TA60..ATM L=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
RA60,61..RHD..4FC;RA65,SA63,TA60..ATM L=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-11011 |
MA61..4FC..EUG PRIMARY |
1 | ||
| 90501-07680 |
MA61,RA60,61,65,SA63,TA60..ATM L=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MA61,RA60,61,65,SA63,TA60..ATM |
6 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
MA61..4FC..EUG |
1 | ||
| 35464-22010 |
RA60,61,TA60..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 90501-06684 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35468-14010 |
MA61..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35469-30020 |
MA61..4FC..EUG |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
MA61..4FC..EUG |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35472-30010 |
MA61..4FC..EUG |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09015 |
RA60,61,65,SA63..4FC |
1 | ||
| 90501-12726 |
MA61..4FC..EUG |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35497-30030 |
MA61..4FC..EUG |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
RA60,61..4FC |
1 | ||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35493-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35493-30030 |
MA61..4FC..EUG |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35452-30010 |
MA61..4FC..EUG |
1 | ||
| 90334-11001 |
RA60,61,65,SA63..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
SA63,TA60..ATM;RA60,61..RHD..4FC |
1 | ||
| 35521-30030 |
MA61..4FC..EUG |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||

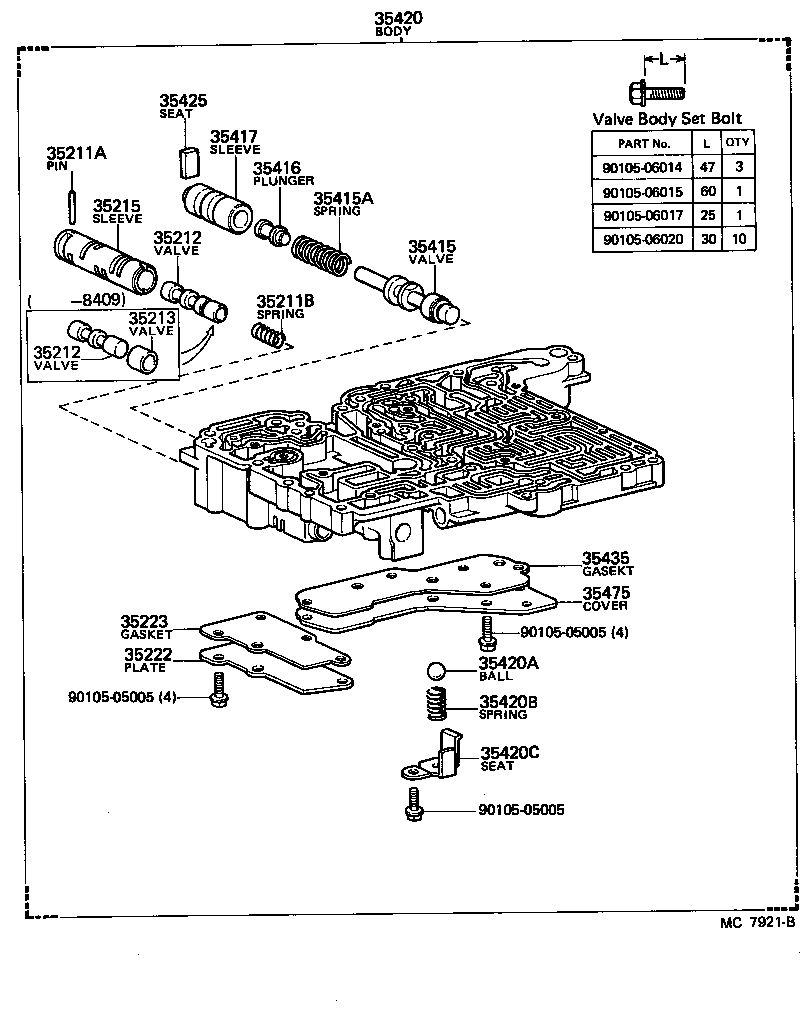

(8308- )MA61..4FC..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-04027 |
MA61..4FC..EUG |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-09029 |
MA61..4FC..EUG |
1 | ||
| 90501-10113 |
MA61..4FC..EUG |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-30010 |
MA61..4FC..EUG |
1 | ||
| 35202-30010 |
MA61..4FC..EUG |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-30010 |
MA61..4FC..EUG |
1 | ||
| 35202-30010 |
MA61..4FC..EUG |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-30010 |
MA61..4FC..EUG |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-30013 |
MA61..4FC..EUG |
1 | ||
| 35215-30012 |
MA61..4FC..EUG |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
MA61..4FC..EUG |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
MA61..4FC..EUG |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-18039 |
RA60,61,SA63..4FC |
1 | ||
| 90501-18039 |
MA61..4FC..EUG |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
MA61..4FC..EUG |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-14010 |
MA61..4FC..EUG |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-30170 |
MA61..4FC..EUG |
1 | ||
| 35420-30171 |
MA61..4FC..EUG |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
MA61..4FC..EUG |
1 | ||
| 35427-22011 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35425-14010 |
MA61..4FC..EUG |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35435-30040 |
MA61..4FC..EUG |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
MA61..4FC..EUG |
1 | ||
| 35475-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
(8108-8507)RA60,61,65,SA63..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-18039 |
RA60,61,SA63..4FC |
1 | ||
| 90501-18039 |
MA61..4FC..EUG |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
MA61..4FC..EUG |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-14010 |
MA61..4FC..EUG |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-30170 |
MA61..4FC..EUG |
1 | ||
| 35420-30171 |
MA61..4FC..EUG |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
MA61..4FC..EUG |
1 | ||
| 35427-22011 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35425-14010 |
MA61..4FC..EUG |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35435-30040 |
MA61..4FC..EUG |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
MA61..4FC..EUG |
1 | ||
| 35436-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35449-22010 |
RA60,61,SA63,TA60..ATM LWR VALVE |
1 | ||
| 35447-22010 |
RA60,61,65,SA63,TA60..ATM RR UPR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
RA60,61,65,SA63,TA60..ATM |
2 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
MA61..4FC..EUG |
1 | ||
| 35464-22010 |
RA60,61,TA60..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 90501-06684 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
MA61..4FC..EUG |
1 | ||
| 35475-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35476 - VALVE, 3RD COAST SHIFT | ||||
| 35476-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90334-12001 |
RA60,61,65,SA63..4FC |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90250-02012 |
RA60,61,65,SA63..4FC |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
RA60,61,65,SA63..4FC |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-08020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35477C - SEAT, VALVE (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35493-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35495-22010 |
RA60,61,65,SA63..4FC |
2 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35494-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
RA60,61,65,SA63..4FC |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35497-30030 |
MA61..4FC..EUG |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
RA60,61..4FC |
1 | ||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35493-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35493-30030 |
MA61..4FC..EUG |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35452-30010 |
MA61..4FC..EUG |
1 | ||
| 90334-11001 |
RA60,61,65,SA63..4FC |
1 | ||
| 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) | ||||
| 35495-22010 |
RA60,61,65,SA63..4FC |
2 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90101-05420 | ||||
| 90101-06004 | ||||
| 90101-06005 | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06425 | ||||
| 90105-05005 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
(8308- )MA61..4FC..EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
MA61..4FC..EUG |
1 | ||
| 35151B - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
MA61..4FC..EUG |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30031 |
RA60,61,65,SA63..4FC |
1 | ||
| 35303-30060 |
MA61..4FC..EUG |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30060 |
MA61..4FC..EUG |
1 | ||
| 35339-30030 |
RA60,61,65,SA63..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
MA61..4FC..EUG |
1 | ||
| 35418-30050 |
RA60,61,65,SA63..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-24010 |
MA61..4FC..EUG |
1 | ||
| 35421-22010 |
RA60,61,SA63,TA60..ATM |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-29002 |
RA60,61..4FC |
1 | ||
| 90501-13012 |
MA61..EUG LWR |
1 | ||
| 90501-28004 |
MA61..EUG UPR |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-29002 |
RA60,61..4FC |
1 | ||
| 90501-13012 |
MA61..EUG LWR |
1 | ||
| 90501-28004 |
MA61..EUG UPR |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
MA61..4FC..TWC |
1 | ||
| 35441-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-13009 |
MA61..4FC..(ARL,EUR) LWR |
1 | ||
| 90501-25002 |
RA60,61,65..4FC |
1 | ||
| 90501-18041 |
MA61..EUG UPR |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-13009 |
MA61..4FC..(ARL,EUR) LWR |
1 | ||
| 90501-25002 |
RA60,61,65..4FC |
1 | ||
| 90501-18041 |
MA61..EUG UPR |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20016 |
MA61..4FC..EUG |
1 | ||
| 90501-20675 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22081 |
MA61..4FC..EUG |
1 | ||
| 35432-22080 |
MA61..4FC..EUG |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35433-30071 |
MA61..4FC..EUG |
1 | ||
| 35433-30072 |
MA61..4FC..EUG |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30061 |
MA61..4FC..EUG |
1 | ||
| 35434-14020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35434-30062 |
MA61..4FC..EUG |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
MA61,TA60..ATM |
2 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-09686 |
MA61..4FC..EUG INTERMEDIATE COAST |
1 | ||
| 90501-08725 |
MA61..4FC..EUG LOW COAST |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
MA61,RA61..4FC..EUG |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
MA61,RA61..4FC..EUG |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22010 |
RA60,61,TA60..ATM |
1 | ||
| 35599-30010 |
MA61..4FC |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
MA61..4FC..EUG |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35892-30030 |
MA61..4FC..EUG |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
MA61..4FC..EUG |
1 | ||
| 35895-30010 |
RA60,61..4FC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
MA61..4FC..EUG |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||
(8108-8507)RA60,61,65,SA63..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22110 |
RA60,61..4FC |
1 | ||
| 35430-30120 |
MA61..4FC..EUG |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
RA60,61,65,SA63,TA60..ATM OD=5.535,RUBBER,OD=5.56,GUM |
3 | ||
| 90360-06023 |
MA61,RA60,61,65,SA63,TA60..ATM 0D=5.56,OD=5.56,STEEL |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22041 |
RA60,61,SA63..RHD..4FC |
1 | ||
| 35440-30070 |
MA61..4FC..EUG |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22010 |
RA60,61,65,SA63,TA60..ATM OD=5.535,RUBBER |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35449-22010 |
RA60,61,SA63,TA60..ATM LWR VALVE |
1 | ||
| 35447-22010 |
RA60,61,65,SA63,TA60..ATM RR UPR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
RA60,61,65,SA63,TA60..ATM |
2 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30040 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456-30050 |
MA61..4FC..EUG |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
MA61..4FC..EUG |
1 | ||
| 90501-08013 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-30010 |
MA61..4FC..EUG |
1 | ||
| 35452-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90250-02004 |
RA60,61,65,SA63..4FC |
2 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90250-02004 |
RA60,61,65,SA63..4FC |
2 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09006 |
RA60,61,65..4FC |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
MA61..4FC..EUG |
1 | ||
| 35458-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-22020 |
SA63,TA60..ATM;RA60,61..RHD..4FC |
1 | ||
| 35408-30020 |
MA61..4FC..EUG |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
RA60,61..RHD..4FC;RA65,SA63,TA60..ATM L=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-11011 |
MA61..4FC..EUG PRIMARY |
1 | ||
| 90501-07680 |
MA61,RA60,61,65,SA63,TA60..ATM L=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-12011 |
RA60,61..RHD..4FC;RA65,SA63,TA60..ATM L=39.71,PRIMARY,WD=1.19,CW=11.5 |
1 | ||
| 90501-11011 |
MA61..4FC..EUG PRIMARY |
1 | ||
| 90501-07680 |
MA61,RA60,61,65,SA63,TA60..ATM L=19.24,SECONDARY,WD=0.71,CW=8 |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
MA61,RA60,61,65,SA63,TA60..ATM |
6 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35466 - VALVE, 2-3 SHIFT LOWER | ||||
| 35466-30011 |
RA60,61,65,SA63..4FC |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35468-14010 |
MA61..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
MA61,RA60,61,65,SA63..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
RA60,61,65,SA63..4FC |
1 | ||
| 35469-30020 |
MA61..4FC..EUG |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35472-30010 |
MA61..4FC..EUG |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-30010 |
RA60,61,65,SA63..4FC |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09013 |
RA60,61,65,SA63..4FC |
1 | ||
| 35488B - PLUG, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90334-10001 |
RA60,61,65,SA63..4FC |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-22010 |
RA60,61,SA63..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09015 |
RA60,61,65,SA63..4FC |
1 | ||
| 90501-12726 |
MA61..4FC..EUG |
1 | ||
| 35489B - PIN, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90250-02007 |
RA60,61,65,SA63..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-22030 |
SA63,TA60..ATM;RA60,61..RHD..4FC |
1 | ||
| 35521-30030 |
MA61..4FC..EUG |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
MA61,RA60,61,65,SA63,TA60..ATM |
1 | ||
| Common parts | ||||
| 90101-05002 | ||||
| 90101-05003 | ||||
| 90101-05417 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06018 | ||||
| 94541-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
