MA61R-BLPQFW (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5MGE..EUG

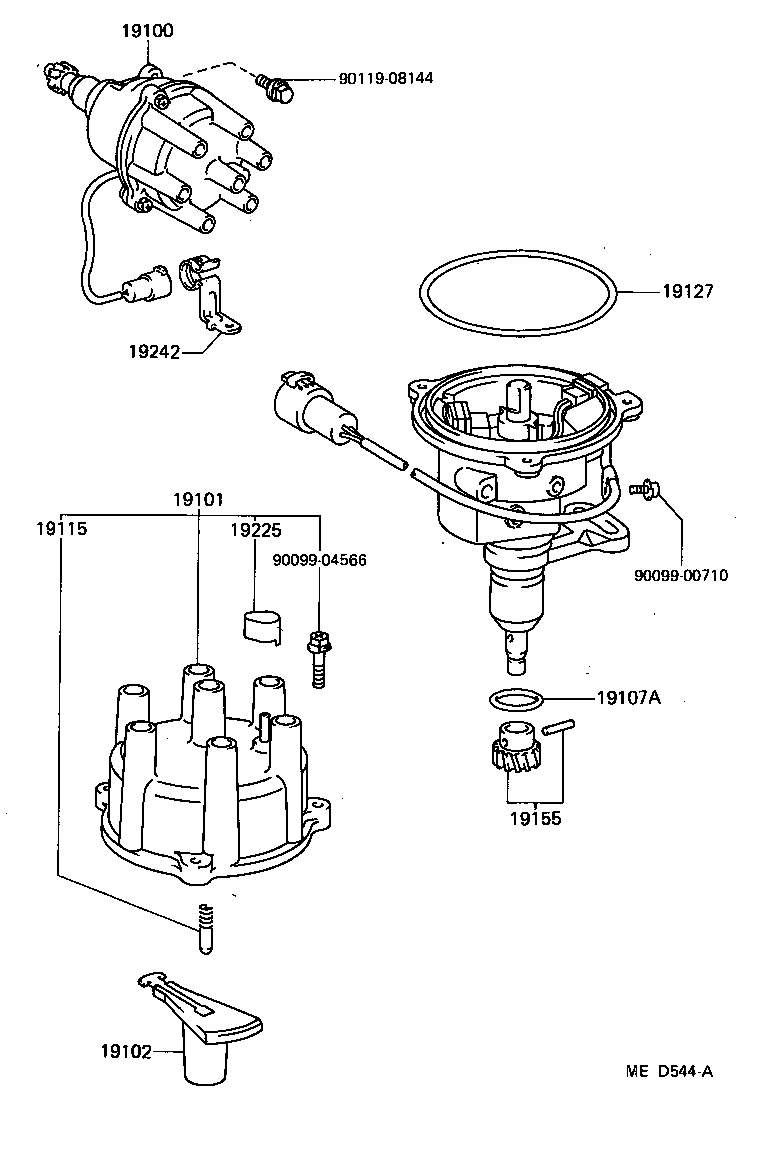

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19127 19155 19225 19242 9009900710 9009904566 9011908144
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-43120

5MGE..MA61..EUG

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70011

5MGE..MA61

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-43110

5MGE..MA61..EUG

 1
19102-43120

5MGE..MA61..EUG

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

5M#..MA61

 1
19225 - CAP, RUBBER
19225-41140

5M#..MA61

 1
19242 - CLAMP, CORD
90929-01042

5MGE..MA61..EUG

 1
Common parts
90099-00710
90099-04566
90119-08144
