MA61R-BLMQFW (1981)

Toyota Celica

Production Dec 1981 - Dec 1985
Engine 5MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8112-8308)MA61

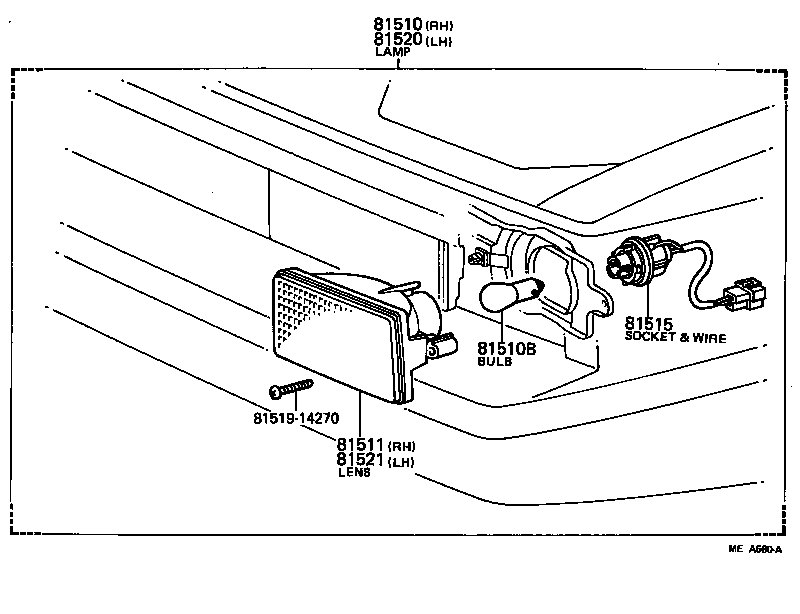

Click highlighted areas on diagram

diagram 81510 81510B 81511 81515 8151914270 81520 81521
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-14280

MA61

 1
81510-80004

MA61..EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

MA61,RA6#,TA60

12V 21W,12V 21W

 2
99132-11210

MA61..EUR;AA63,RA6#,SA63,TA60

12V 21W,12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14270

MA61

 1
81511-14280

MA61..EUR

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-14280

MA61..EUR

 2
81515-14270

MA61

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-14280

MA61

 1
81520-80004

MA61..EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14270

MA61

 1
81521-14280

MA61..EUR

 1
Common parts
81519-14270

(8308- )MA61

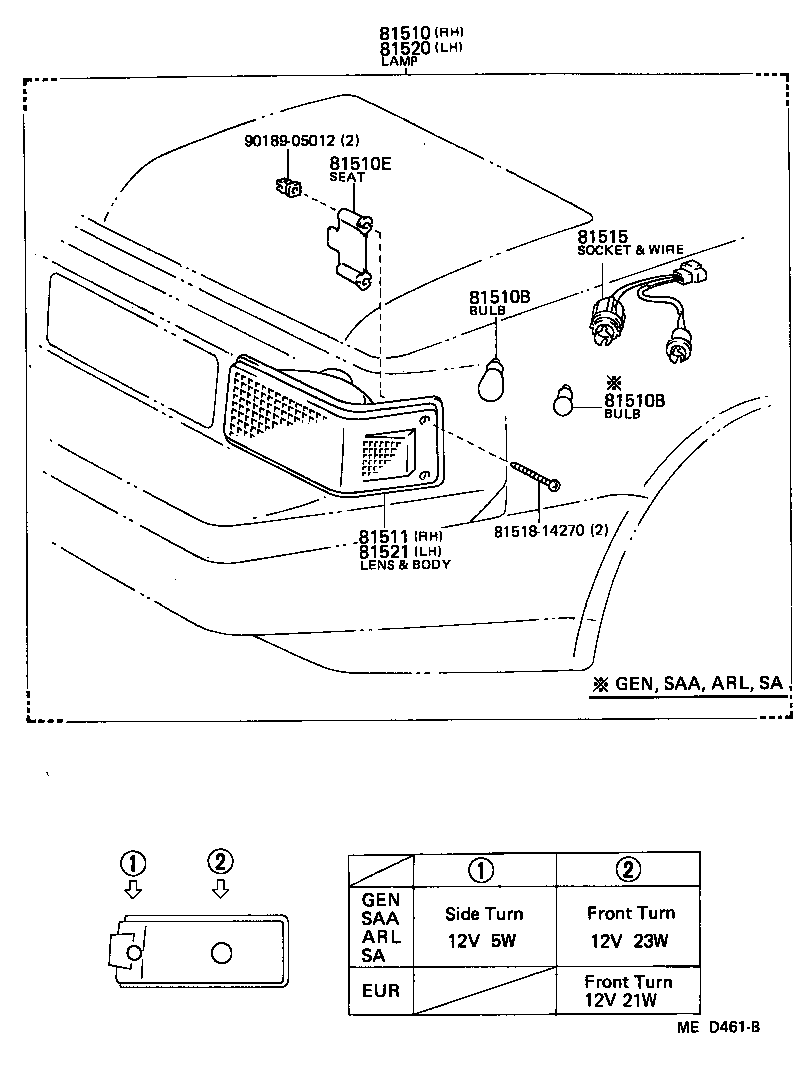

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81510E 81511 81515 8151814270 81520 81521 9018905012
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-14280

MA61

 1
81510-80004

MA61..EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

MA61,RA6#,TA60

12V 21W,12V 21W

 2
99132-11210

MA61..EUR;AA63,RA6#,SA63,TA60

12V 21W,12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

MA61,RA6#,TA60

12V 21W,12V 21W

 2
99132-11210

MA61..EUR;AA63,RA6#,SA63,TA60

12V 21W,12V 21W

 2
81510E - SEAT, FRONT TURN SIGNAL LAMP BODY SPACER
81513-14270

MA61

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-14270

MA61

 1
81511-14280

MA61..EUR

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-14280

MA61..EUR

 2
81515-14270

MA61

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-14280

MA61

 1
81520-80004

MA61..EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-14270

MA61

 1
81521-14280

MA61..EUR

 1
Common parts
81518-14270
90189-05012
