MA61R-BLMQF (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)AA63,RA60,61,63,SA63,TA60..5F

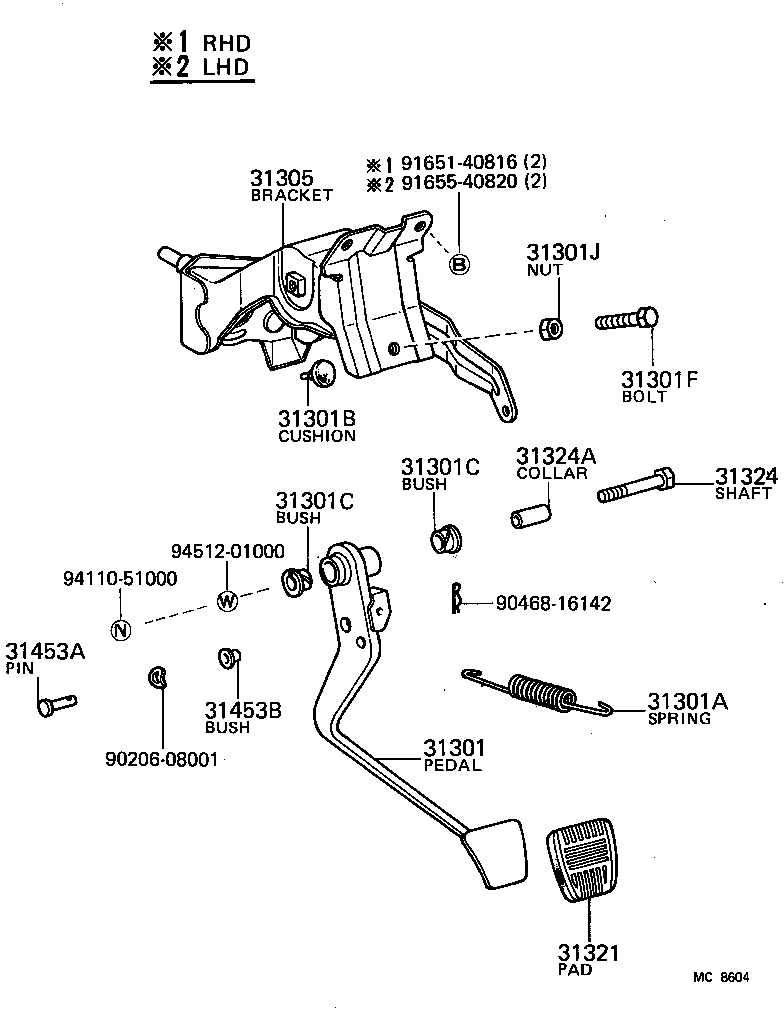

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31305 31321 31324 31324A 31453A 31453B 9020608001 9046816142 9165140816 9165540820 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-14050

AA63,RA60,61,63,SA63..RHD..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14002

AA63,RA60,61,63,SA63,TA60..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

AA63,RA60,61,63,SA63,TA60..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

MA61..5F

 2
90386-13192

AA63,MA61,RA6#,SA63,TA60..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

MA61..5F

 2
90386-13192

AA63,MA61,RA6#,SA63,TA60..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AA63,RA60,61,63,SA63,TA60..5F

 1
90101-10105

MA61,RA65..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

RA60,61,63,TA60..5F

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-24010

RA60,61,63..RHD..5F

 1
55107-14100

MA61,RA65..RHD..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

AA63,MA61,RA6#,SA63,TA60..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

AA63,MA61,RA6#,SA63,TA60..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AA63,MA61,RA6#,SA63..RHD..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

RA63..GEN;MA61,RA60..5F

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AA63,MA61,RA6#,SA63..RHD..5F

 1
Common parts
90206-08001
90468-16142
91651-40816
91655-40820
94110-51000
94512-01000
