MA61R-BLMQEQ (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5ME
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5ME

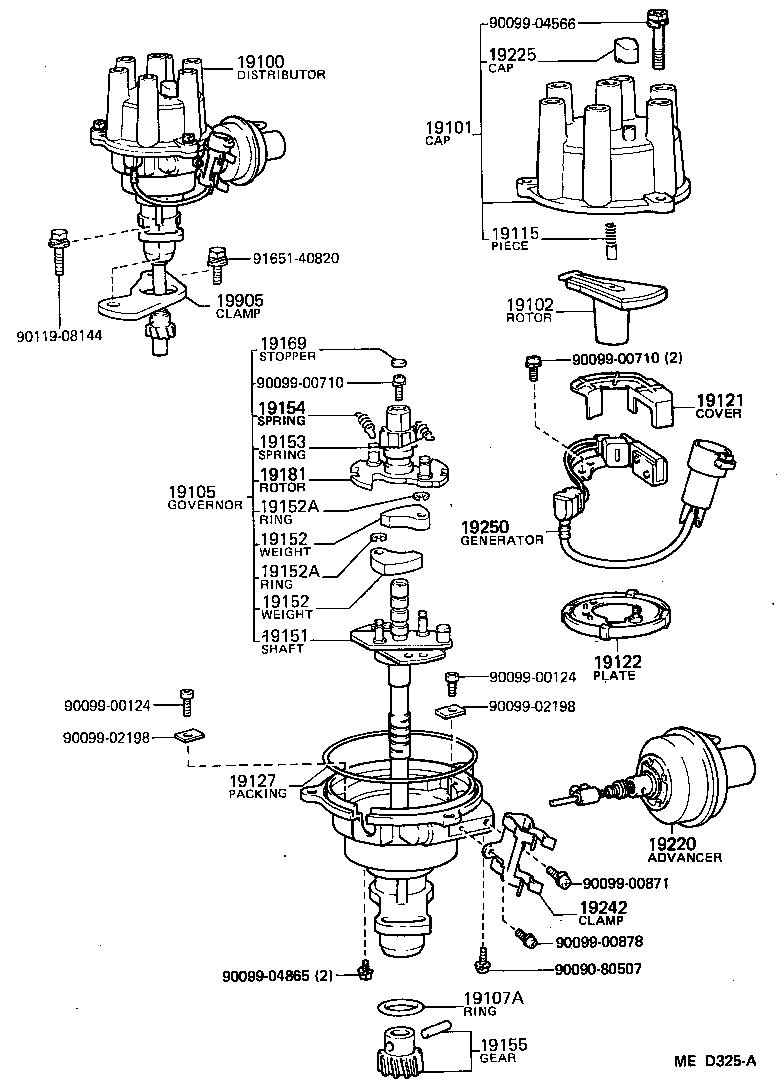

Click highlighted areas on diagram

diagram 19100 19101 19102 19105 19107A 19115 19121 19122 19127 19151 19152 19152 19152A 19152A 19153 19154 19155 19169 19181 19220 19225 19242 19250 19905 9009080507 9009900124 9009900124 9009900710 9009900710 9009900871 9009900878 9009902198 9009902198 9009904566 9009904865 9011908144 9165140820
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-43140

5ME..MA61

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-45191

5ME..MA61

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-45191

5ME..MA61

 1
19102-43140

5ME..MA61

 1
19105 - GOVERNOR SUB-ASSY
19105-43140

5ME..MA61

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

5M#..MA61

 1
19121 - COVER, DUST PROOF
19121-27020

5ME..MA61

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-45070

5ME..MA61

 1
19127 - PACKING, DUST PROOF
19127-45190

5ME..MA61

 1
19151 - SHAFT, GOVERNOR
19151-41250

5ME..MA61

 1
19152 - WEIGHT, GOVERNOR
19152-45060

5ME..MA61

 2
19152 - WEIGHT, GOVERNOR
19152-45060

5ME..MA61

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

5ME..MA61

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

5ME..MA61

 2
19153 - SPRING, GOVERNOR, A
19153-43140

5ME..MA61

 1
19154 - SPRING, GOVERNOR, B
19153-43140

5ME..MA61

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-45190

5ME..MA61

 1
19169 - STOPPER, CAM GREASE
19169-32010

5ME..MA61

 1
19181 - ROTOR, DISTRIBUTOR, SIGNAL
19181-43140

5ME..MA61

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-43140

5ME..MA61

 1
19225 - CAP, RUBBER
19225-41140

5M#..MA61

 1
19242 - CLAMP, CORD
19242-88272

5ME..MA61

 1
19250 - GENERATOR ASSY, SIGNAL
19250-41260

5ME..MA61

 1
19905 - CLAMP SUB-ASSY, DISTRIBUTOR
19955-45020

5ME..MA61

 1
Common parts
90090-80507
90099-00124
90099-00710
90099-00871
90099-00878
90099-02198
90099-04566
90099-04865
90119-08144
91651-40820
