MA61L-BLPQFV (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8108-8507)ATM

Click highlighted areas on diagram

diagram 35520 35520 35520 35520A 35520B 35520B 35520B 35523 35523 35523 35523 35525 35525 35526 9046106966 9046106966 9046106966 9046400065 9046814001 9046818002 9054100500 9161140610 9161140610 9161140610 9161140816 9161140816 9461110800 9461110800
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-20070

RA60,61..LHD..4FC

 1
35520-24020

MA61..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-20070

RA60,61..LHD..4FC

 1
35520-24020

MA61..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-20070

RA60,61..LHD..4FC

 1
35520-24020

MA61..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RA60,61,TA60..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RA60,61,TA60..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RA60,61,TA60..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RA60,61..LHD..4FC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RA60,61..LHD..4FC

 1
35526 - BRACKET, THROTTLE CABLE GUIDE
35526-20010

RA60,61..LHD..4FC

 1
Common parts
90461-06966
90464-00065
90468-14001
90468-18002
90541-00500
91611-40610
91611-40816
94611-10800

(8308- )4FC..TWC

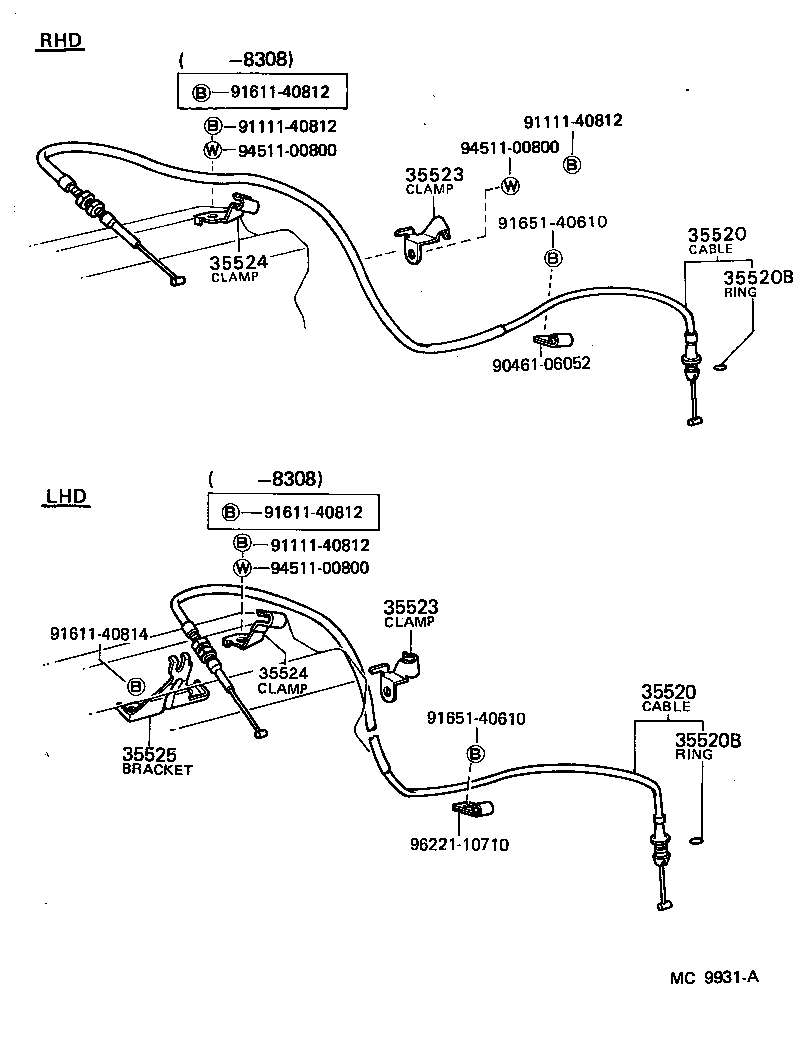

Click highlighted areas on diagram

diagram 35520 35520 35520B 35520B 35523 35523 35524 35524 35525 9046106052 9111140812 9111140812 9111140812 9161140812 9161140812 9161140814 9165140610 9165140610 9451100800 9451100800 9451100800 9622110710
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-20070

RA60,61..LHD..4FC

 1
35520-24020

MA61..4FC

 1
35520 - CABLE ASSY, THROTTLE
35520-20070

RA60,61..LHD..4FC

 1
35520-24020

MA61..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RA60,61,TA60..ATM

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09063

RA60,61,TA60..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35523 - CLAMP, THROTTLE CABLE
35523-24010

MA61..4FC..TWC

 1
35523-22050

RA60,61..4FC..(EUR,GEN,ME,SAA)

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35524-30010

MA61..4FC..TWC

 1
35524 - CLAMP, THROTTLE CABLE, NO.2
35524-30010

MA61..4FC..TWC

 1
35525 - BRACKET, THROTTLE CABLE
35525-20042

RA60,61..LHD..4FC

 1
Common parts
90461-06052
91111-40812
91611-40812
91611-40814
91651-40610
94511-00800
96221-10710
