MA61L-BLPQFV (1983)

Toyota Celica

Production Aug 1983 - Dec 1985
Engine 5MGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )5M#

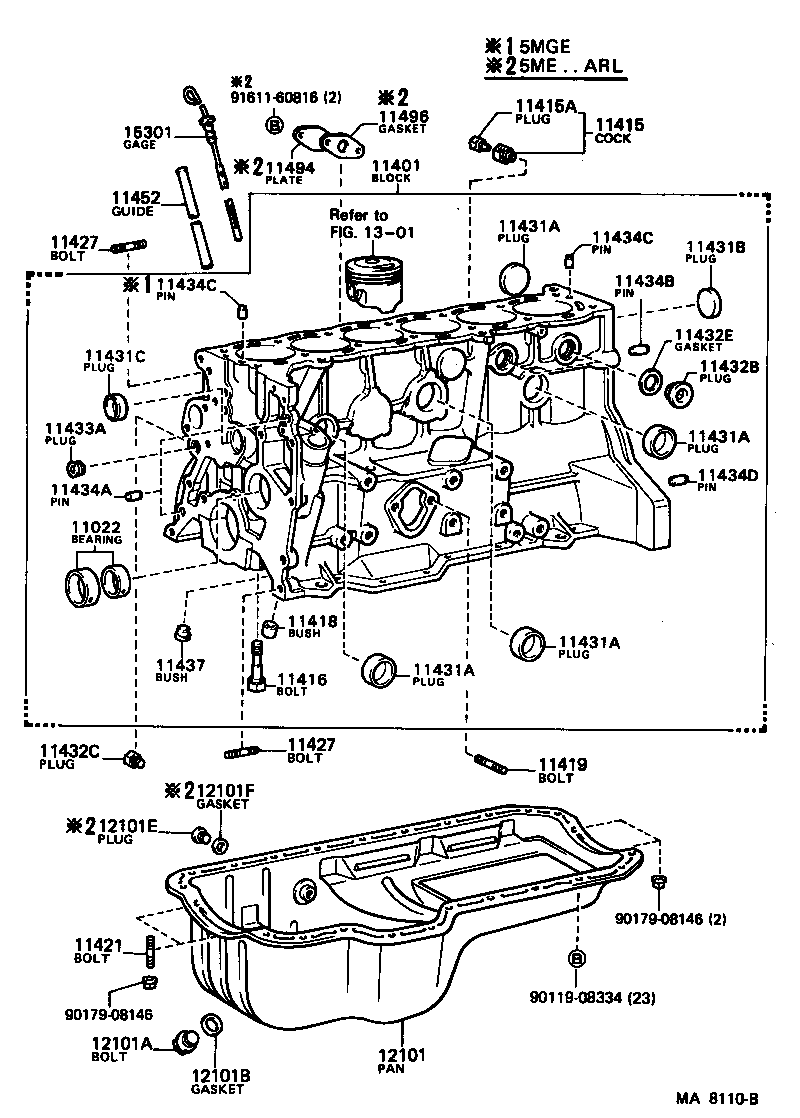

Click highlighted areas on diagram

diagram 11022 11401 11415 11415A 11416 11418 11419 11421 11427 11427 11431A 11431A 11431A 11431A 11431B 11431C 11432B 11432C 11432E 11433A 11434A 11434B 11434C 11434C 11434D 11437 11452 11494 11496 12101 12101A 12101B 12101E 12101F 1301 15301 9011908334 9017908146 9017908146 9161160816
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-49435

5MGE..MA61..GEN,SA,SAA

 1
11401-49315

5MGE..MA61..GEN,SA,SAA

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

5M#..MA61

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

5M#..MA61

 1
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08191

5M#..MA61

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-08208

5M#..MA61

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

5M#..MA61

OD=35

 4
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51006

5M#..MA61

 1
90345-51025

5MGE..MA61

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

5M#..MA61

L=18,OD=8,L=18,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

5M#..MA61

L=18,OD=8,L=18,OD=8

 2
12101 - PAN SUB-ASSY, OIL
12101-43040

5M#..MA61

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

5M#..MA61

 1
90341-18089

5M#..MA61

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

5M#..MA61

 1
90430-18244

5M#..MA61

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-43020

5MGE..MA61

 1
Common parts
90119-08334
90179-08146
91611-60816
Linked diagrams
1301
