MA61L-BLPQEC (1983)
Toyota Celica
(8308- )5ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-43010 |
5M#..MA61 U/S 0.25,U/S 0.25 |
1 | ||
| 11705-43010 |
5M#..MA61 U/S 0.50,U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-4301002 |
5M#..MA61 NO.1,MARK"2",MARK 2 |
1 | ||
| 11701-4301003 |
5M#..MA61 NO.2,MARK"3",MARK 3 |
6 | ||
| 11701-4301001 |
5M#..MA61 NO.2,MARK"1",MARK 1 |
6 | ||
| 11701-4301002 |
5M#..MA61 NO.2,MARK"2",MARK 2 |
6 | ||
| 11701-4301005 |
5M#..MA61 NO.2,MARK"5",MARK 5 |
6 | ||
| 11071-4301001 |
5M#..MA61 NO.1,MARK"1",MARK 1 |
1 | ||
| 11071-4301003 |
5M#..MA61 NO.1,MARK"3",MARK 3 |
1 | ||
| 11071-4301005 |
5M#..MA61 NO.1,MARK"5",MARK 5 |
1 | ||
| 11071-4301004 |
5M#..MA61 NO.1,MARK"4",MARK 4 |
1 | ||
| 11701-4301004 |
5M#..MA61 NO.2,MARK"4",MARK 4 |
6 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-43030 |
5ME..MA61 STD,STD |
1 | ||
| 13014-43030 |
5ME..MA61 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-43030 |
5ME..MA61 O/S 1.00,O/S 1.00 |
1 | ||
| 13013-43030 |
5ME..MA61 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-4201003 |
5M#..MA61 MARK"3",MARK 3 |
6 | ||
| 13041-4201004 |
5M#..MA61 MARK"4",MARK 4 |
6 | ||
| 13041-4201005 |
5M#..MA61 MARK"5",MARK 5 |
6 | ||
| 13041-4201002 |
5M#..MA61 MARK"2",MARK 2 |
6 | ||
| 13041-4201001 |
5M#..MA61 MARK"1",MARK 1 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13105-43030 |
5ME..MA61 O/S 1.00,O/S 1.00 |
6 | ||
| 13103-43030 |
5ME..MA61 O/S 0.50,O/S 0.50 |
6 | ||
| 13101-43010 |
5ME..MA61 STD,STD |
6 | ||
| 13104-43030 |
5ME..MA61 O/S 0.75,O/S 0.75 |
6 | ||
| 13103-43031 |
5ME..MA61 O/S 0.50,O/S 0.50 |
6 | ||
| 13104-43031 |
5ME..MA61 O/S 0.75,O/S 0.75 |
6 | ||
| 13101-43011 |
5ME..MA61 STD,STD |
6 | ||
| 13105-43031 |
5ME..MA61 O/S 1.00,O/S 1.00 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25001 |
5M#..MA61 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-43010 |
5M#..MA61 |
6 | ||
| 13201-43011 |
5M#..MA61 |
6 | ||
| 13201-49025 |
5M#..MA61 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-42010 |
5M#..MA61 U/S 0.25,U/S 0.25 |
1 | ||
| 13205-42010 |
5M#..MA61 U/S 0.50,U/S 0.50 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-45013 |
5M#..MA61 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-41030 |
5ME..MA61 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05003 |
5M#..MA61 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-41011 |
5ME..MA61 N=20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05003 |
5M#..MA61 |
1 | ||
| 90280-05010 |
5M#..MA61 |
1 | ||

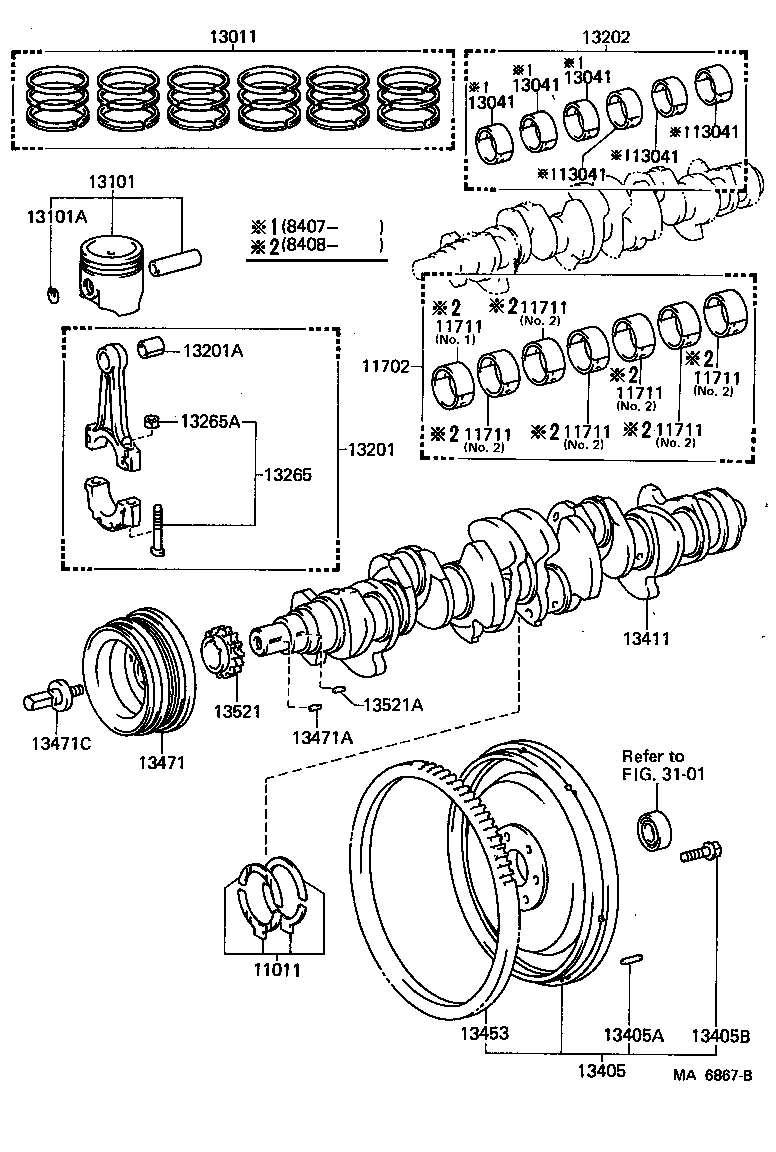

| Linked diagrams | ||||
| 3101 | ||||
