MA61L-BLMQFW (1981)

Toyota Celica

Production Dec 1981 - Dec 1985
Engine 5MGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8112- )MA61

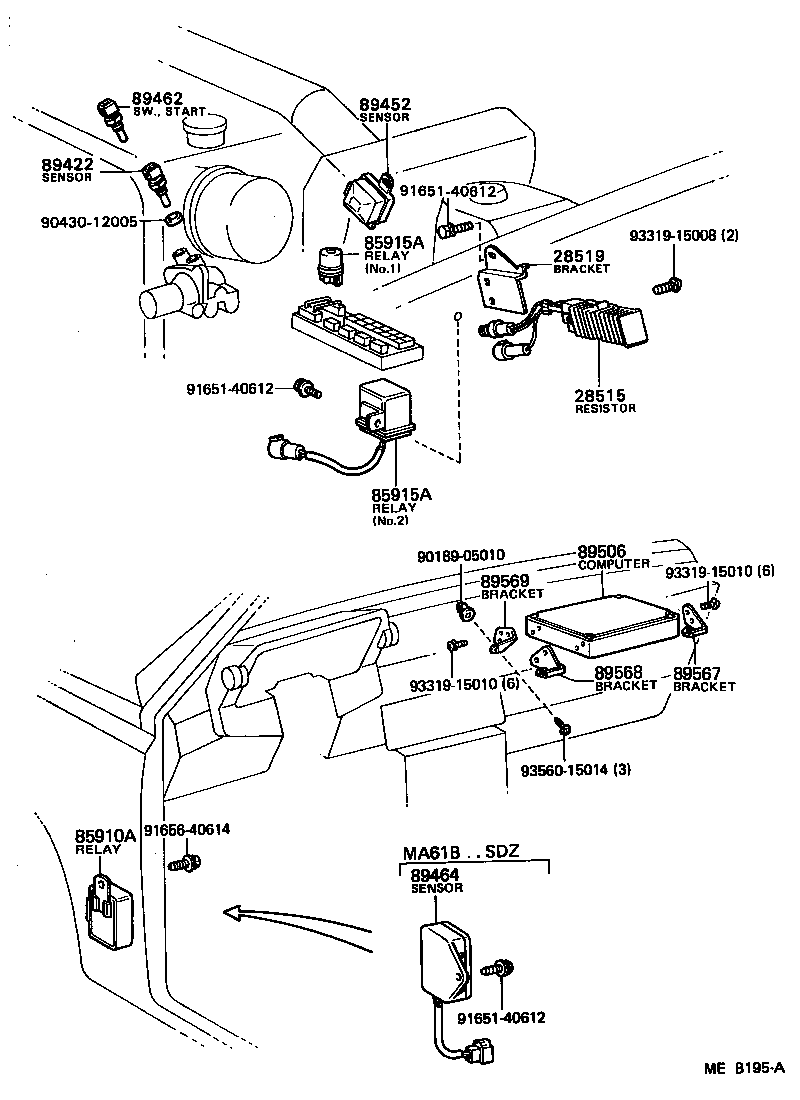

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 85915A 89422 89452 89462 89464 89506 89567 89568 89569 9018905010 9043012005 9165140612 9165140612 9165140612 9165640614 9331915008 9331915010 9331915010 9356015014
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-43010

5M#..MA61

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-24020

5M#..MA61

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

AA63,MA61,RA65

 1
85910-14020

MA61..LHD

 1
85915A - RELAY, MAIN
90987-02004

AA63,MA61,RA65

NO.1

 1
85915-14050

AA63;MA61..LHD

NO.2

 1
85915A - RELAY, MAIN
90987-02004

AA63,MA61,RA65

NO.1

 1
85915-14050

AA63;MA61..LHD

NO.2

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

AA63,MA61,RA65

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

MA61

 1
89452-22010

MA61..5F..EUG

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

AA63,RA65;MA61..ARL,EUR

 1
89462-40010

MA61

 1
89506 - COMPUTER SET, FUEL INJECTION
89561-14110

MA61

 1
89661-30070

MA61..EUG

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-14080

AA63,MA61..LHD

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89568-14070

AA63,MA61..LHD

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-14060

AA63,MA61,RA65

 1
Common parts
90189-05010
90430-12005
91651-40612
91656-40614
93319-15008
93319-15010
93560-15014
