AT180R-BLMSK (1989)
Toyota Celica

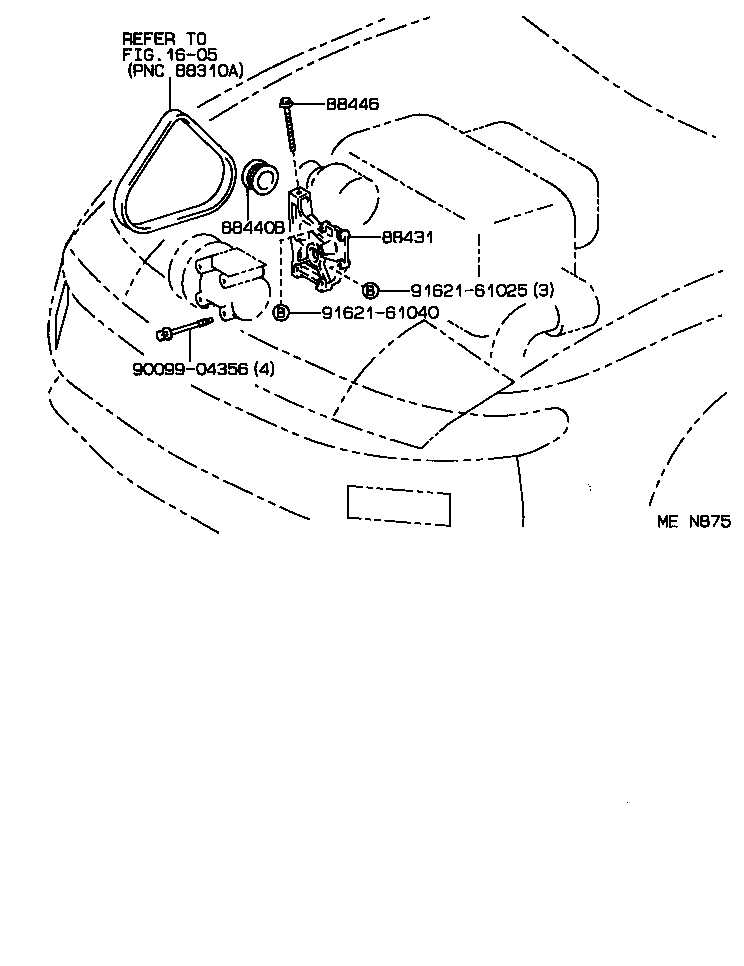

ILLUST NO. 1 OF 3(8911- )AT180
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12380 |
AT180 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
AT180 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AT180 |
1 | ||
| Common parts | ||||
| 90099-04356 | ||||
| 91621-61025 | ||||
| 91621-61040 | ||||
| Linked diagrams | ||||
| 1605 | ||||

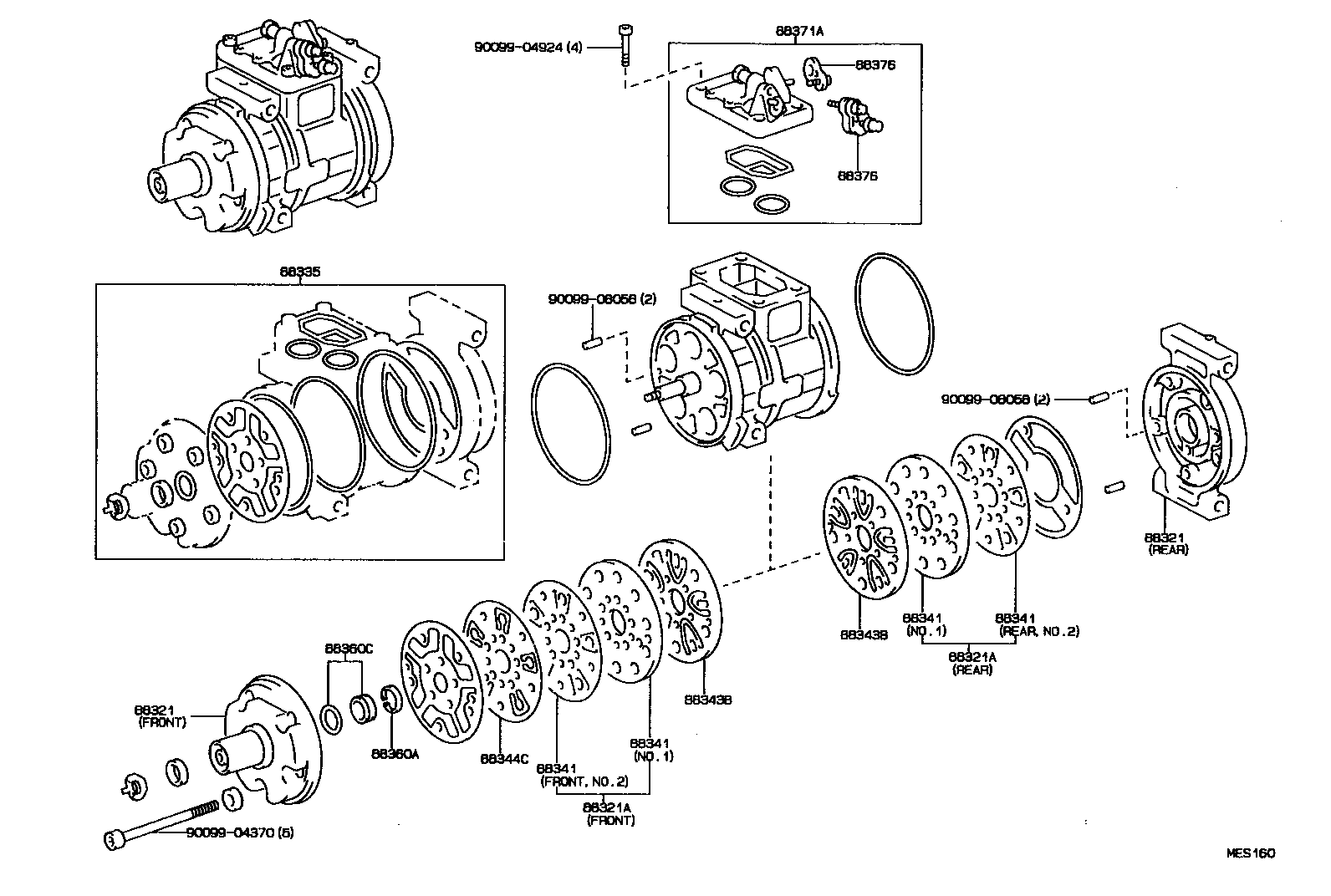

ILLUST NO. 3 OF 3(8911- )AT180
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
AT180,ST182 REAR |
1 | ||
| 88321-14021 |
AT180 FRONT |
1 | ||
| 88322-14020 |
AT180 REAR |
1 | ||
| 88321-14021 |
AT180,ST182,185 FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88322-14020 |
AT180,ST182 REAR |
1 | ||
| 88321-14021 |
AT180 FRONT |
1 | ||
| 88322-14020 |
AT180 REAR |
1 | ||
| 88321-14021 |
AT180,ST182,185 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-14020 |
AT180,ST18# FRONT |
1 | ||
| 88306-14020 |
AT180,ST182 REAR |
1 | ||
| 88305-14020 |
AT180,ST184 FRONT |
1 | ||
| 88306-14020 |
AT180 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88305-14020 |
AT180,ST18# FRONT |
1 | ||
| 88306-14020 |
AT180,ST182 REAR |
1 | ||
| 88305-14020 |
AT180,ST184 FRONT |
1 | ||
| 88306-14020 |
AT180 REAR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
AT180 |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14040 |
AT180,ST182,185 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180,ST182 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341-14040 |
AT180 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180,ST182 NO.1 |
2 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14040 |
AT180,ST182,185 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180,ST182 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341-14040 |
AT180 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180,ST182 NO.1 |
2 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14040 |
AT180,ST182,185 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180,ST182 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341-14040 |
AT180 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180,ST182 NO.1 |
2 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-14040 |
AT180,ST182,185 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180,ST182 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88341-14040 |
AT180 FRONT,NO.2 |
1 | ||
| 88342-14030 |
AT180 REAR,NO.2 |
1 | ||
| 88341-14030 |
AT180,ST182 NO.1 |
2 | ||
| 88341-14030 |
AT180 NO.1 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
AT180,ST182 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
AT180,ST182 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14022 |
AT180,ST184 |
1 | ||
| 88344-14022 |
AT180,ST184,185 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AT180,ST18# |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
AT180,ST18# |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20400 |
AT180 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
AT180,ST18# DISCHARGE |
1 | ||
| 88376-17020 |
AT180,ST18# SUCTION |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-22020 |
AT180,ST18# DISCHARGE |
1 | ||
| 88376-17020 |
AT180,ST18# SUCTION |
1 | ||
| Common parts | ||||
| 90099-04370 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
