AT180R-BLMSK (1989)

Toyota Celica

Production Nov 1989 - Nov 1993
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(8911- )AT180

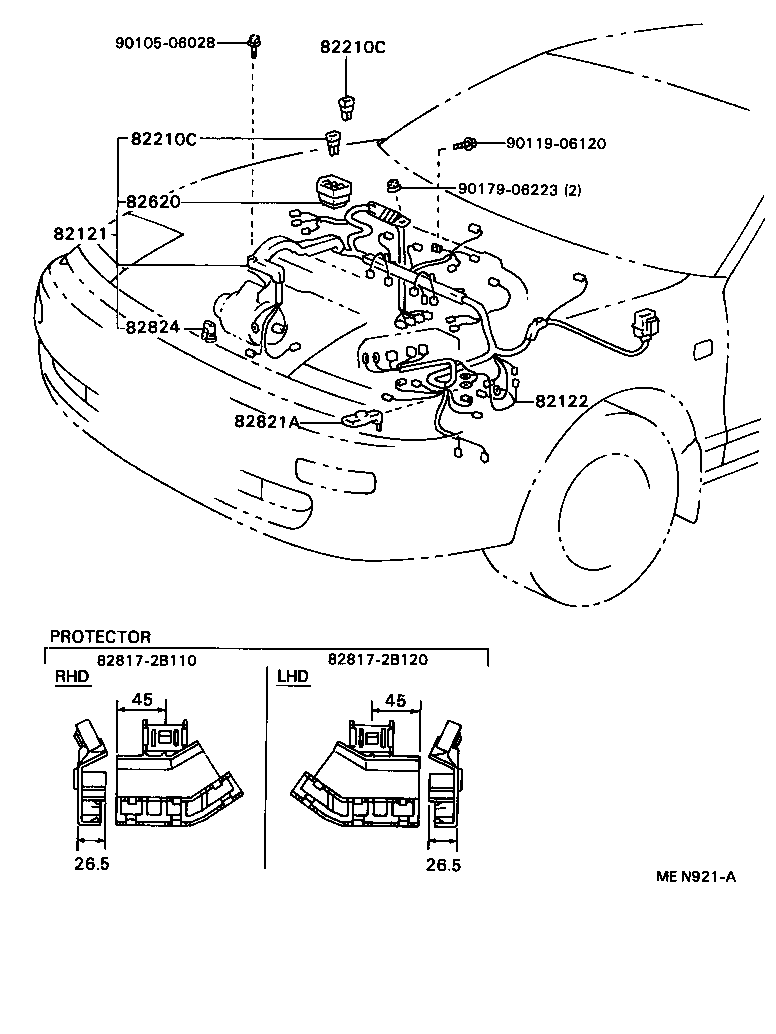

Click highlighted areas on diagram

ENGINE WIRE

diagram 82121 82122 82210C 82210C 82620 828172B110 828172B120 82821A 82824 9010506028 9011906120 9017906223
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-2D080

AT180..RHD

 1
82121-2G700

AT180..RHD

 1
82122 - WIRE, ENGINE, NO.2
82122-20200

AT180

 1
82210C - FUSIBLE LINK
90982-08189

AT180,ST18#

40A,TERM.:FEMALE,GRN

 1
90982-08246

AT180,ST18#

100A,TERM.:MALE,BLUE

 1
90982-08188

AT180,ST184,185

30A,TERM.:FEMALE,PNK

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 1
90982-08246

AT180,ST184,185

100A,TERM.:MALE,BLUE

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 1
90982-08189

AT180,ST18#

40A,TERM.:FEMALE,GRN

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 2
90982-08189

AT180,ST184,185

40A,TERM.:FEMALE,GRN

 1
90982-08246

AT180,ST18#

100A,TERM.:MALE,BLUE

 1
82210C - FUSIBLE LINK
90982-08189

AT180,ST18#

40A,TERM.:FEMALE,GRN

 1
90982-08246

AT180,ST18#

100A,TERM.:MALE,BLUE

 1
90982-08188

AT180,ST184,185

30A,TERM.:FEMALE,PNK

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 1
90982-08246

AT180,ST184,185

100A,TERM.:MALE,BLUE

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 1
90982-08189

AT180,ST18#

40A,TERM.:FEMALE,GRN

 1
90982-08188

AT180,ST18#

30A,TERM.:FEMALE,PNK

 2
90982-08189

AT180,ST184,185

40A,TERM.:FEMALE,GRN

 1
90982-08246

AT180,ST18#

100A,TERM.:MALE,BLUE

 1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-20140

AT180,ST182,184

 1
82620-20140

AT180,ST182,184

 1
82620-20140

AT180,ST184

 1
82821A - COVER, CONNECTOR
82821-20160

AT180,ST18#

 1
82821-20160

AT180,ST18#

 1
82821-20160

AT180,ST18#

 1
82824 - CONNECTOR, WIRING HARNESS
82824-20050

ST182;AT180,ST184..RHD

ENGINE WIRE

 1
82824-20050

AT180,ST184..RHD

ENGINE WIRE

 1
82824-20060

AT180,ST18#

COWL WIRE

 1
Common parts
82817-2B110
82817-2B120
90105-06028
90119-06120
90179-06223
